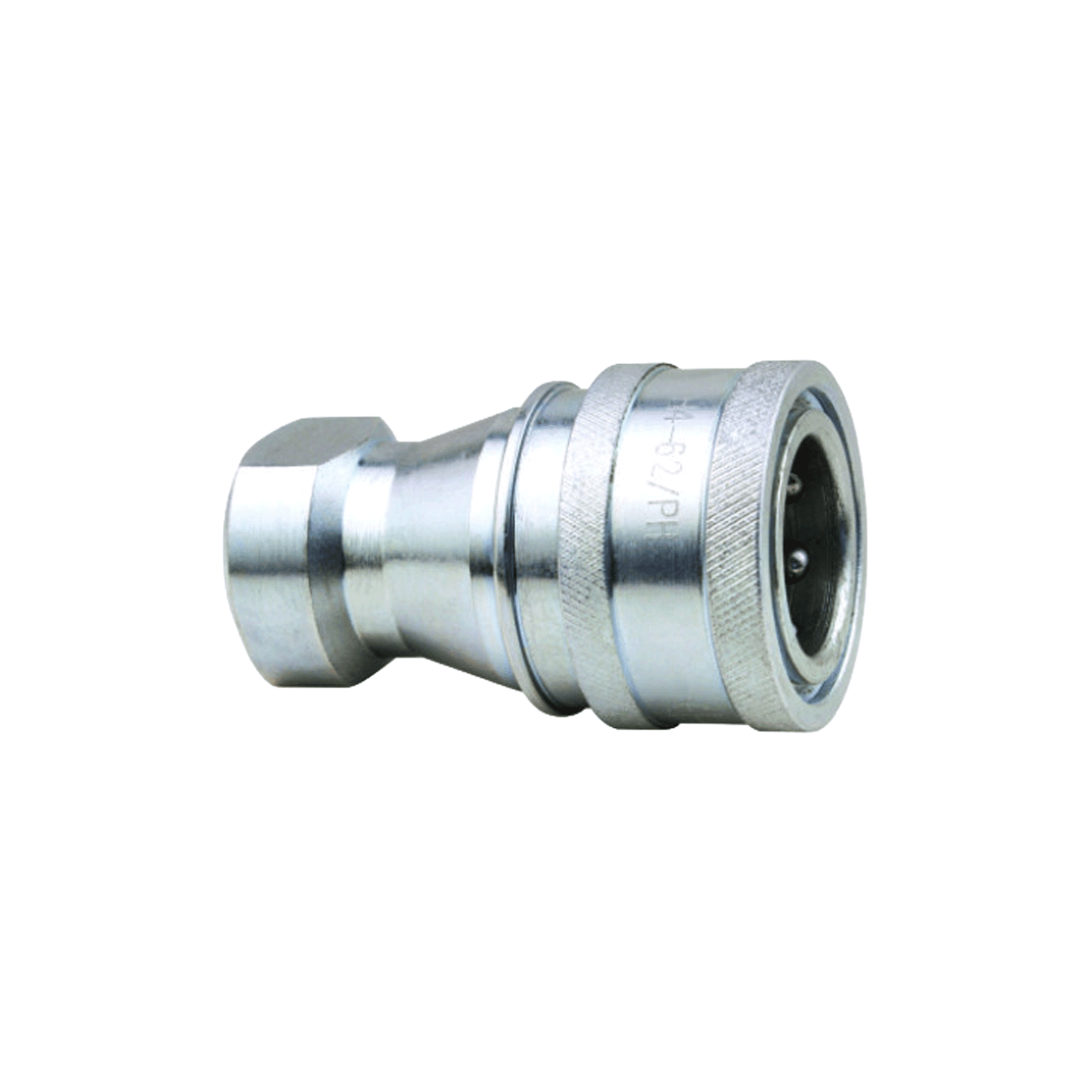

Industrial Series | Zinc Nickel (ZnNi) – MATE 1000 | Poppet Valve | Steel. Connects by sleeve retraction. Interchanges with DNP PBV1 series Eaton FD54 Faster HNV Parker 60 series Stucchi IBR series. To ISO 7241-1 series B. -25 °C to +125 °C. Zinc Nickel (ZnNi) – MATE 1000 surface. Steel. 5 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Part No. Female | Body Size | D mm | Ls mm | Hs mm | T | Dash Size | Max W.P Female (Bar) |
|---|---|---|---|---|---|---|---|
| 1/4” | 28 | 58 | S19 | 1/4 BSPF | -4 | 350 | |
| 3/8” | 35 | 65 | S21 | 3/8 BSPF | -6 | 315 | |
| 1/2” | 44.5 | 72 | S29 | 1/2 BSPF | -8 | 250 | |
| 3/4” | 55 | 88 | S35 | 3/4 BSPF | -12 | 230 | |
| 1” | 65 | 102 | S41 | 1 BSPF | -16 | 200 |
