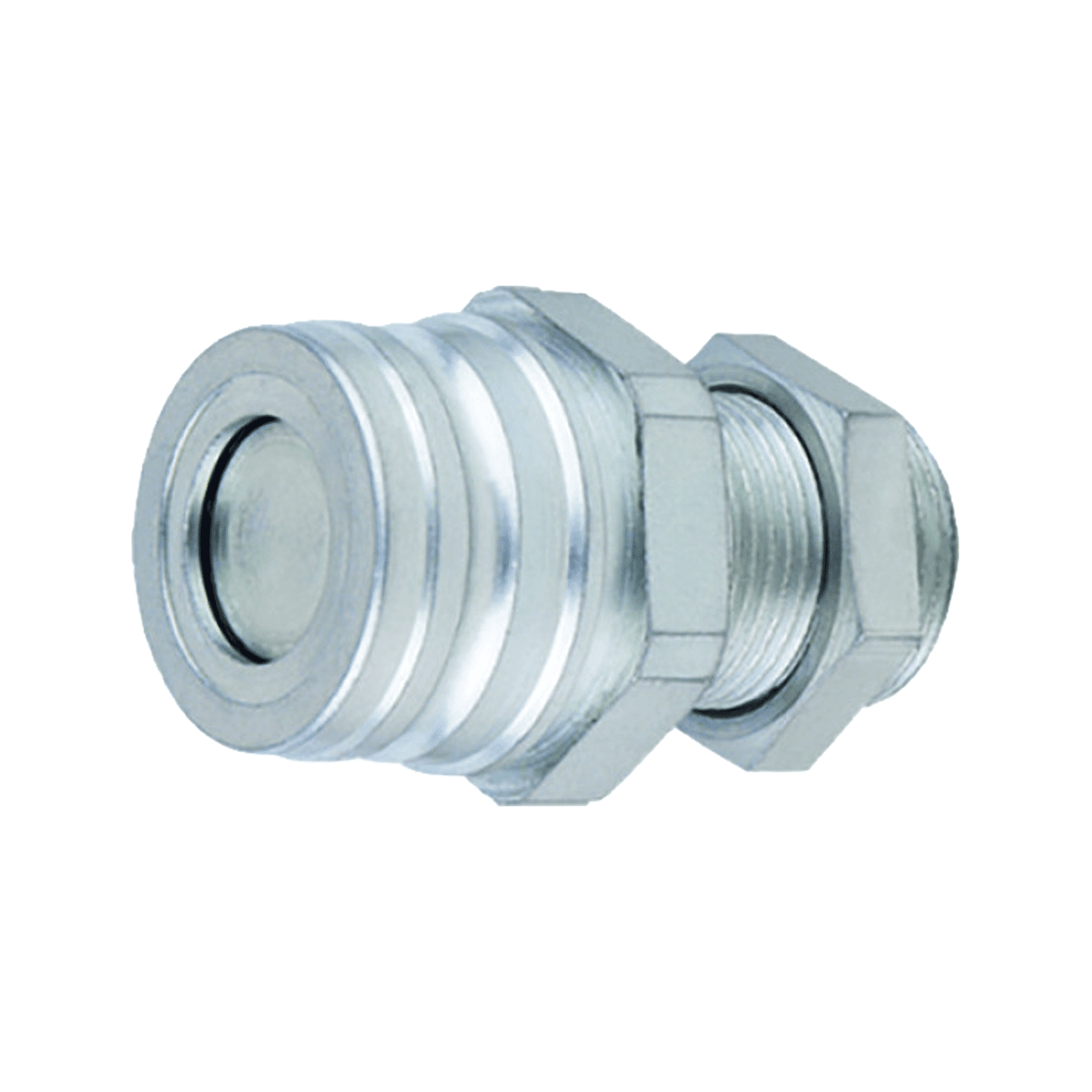

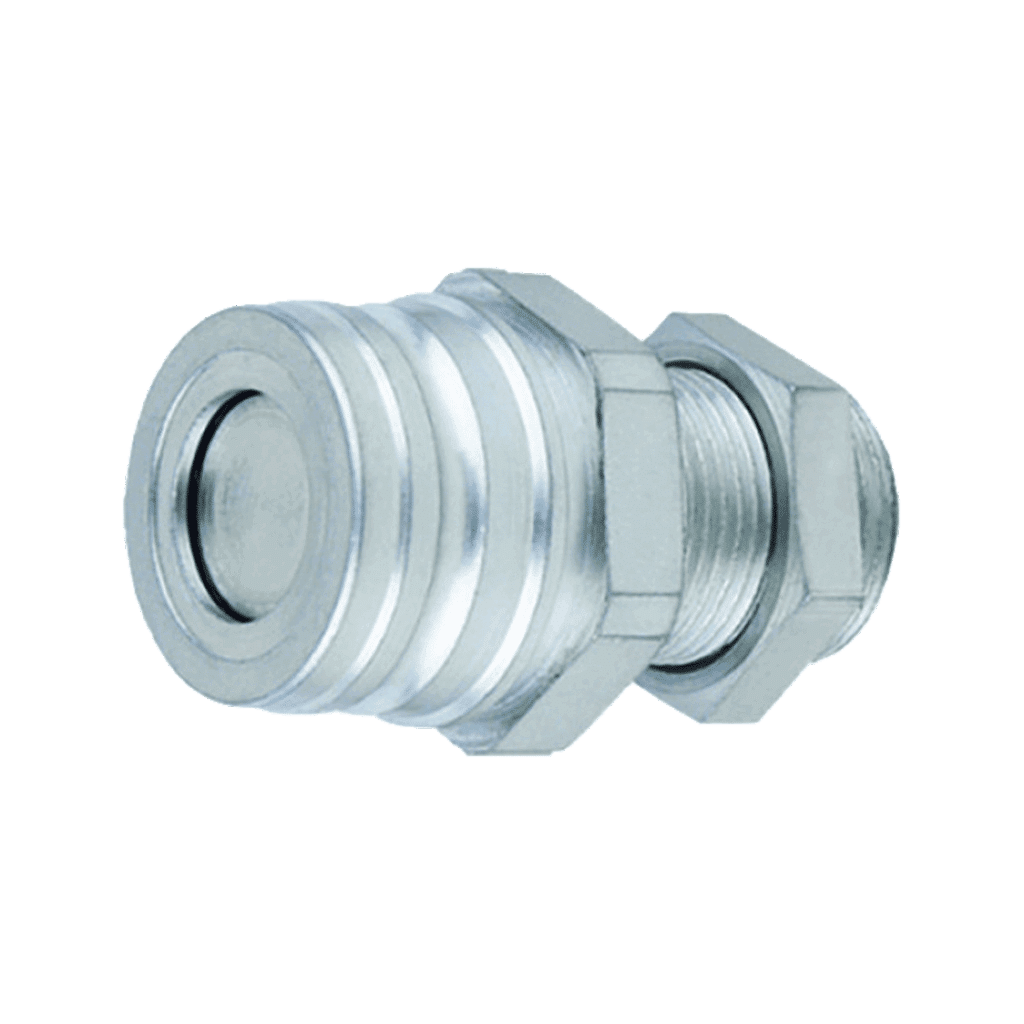

IFR | Zinc Nickel (ZnNi) – MATE 1000 | Flat Valve | Steel. Connects by sleeve retraction. Interchanges with Faster VF series Voswinkel BP series Stucchi IFR series DNP PFT series Gromelle 609 - A series Holmbury TB series. To ISO 5676. -25 °C to +125 °C. Zinc Nickel (ZnNi) – MATE 1000 surface. Steel. 4 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Part No. Male | Body Size | Lp mm | B mm | G mm | C mm | H1 mm | H2 mm | T | Dash Size | Max W.P Male (Bar) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3/8” | 51 | 23 | 30 | 6 | 27 | 32 | M18x1.5 | -6 | 150 | |
| 3/8” | 51 | 23 | 30 | 7 | 30 | 32 | M22x1.5 | -6 | 150 | |
| 3/8” | 62 | 34 | 30 | 8 | 30 | 32 | 1/2 BSPF | -6 | 150 | |
| 3/8” | 62 | 34 | 30 | 8 | 30 | 32 | 3/8 BSPF | -6 | 150 |
No size matches that. Clear the filter to see them all.
