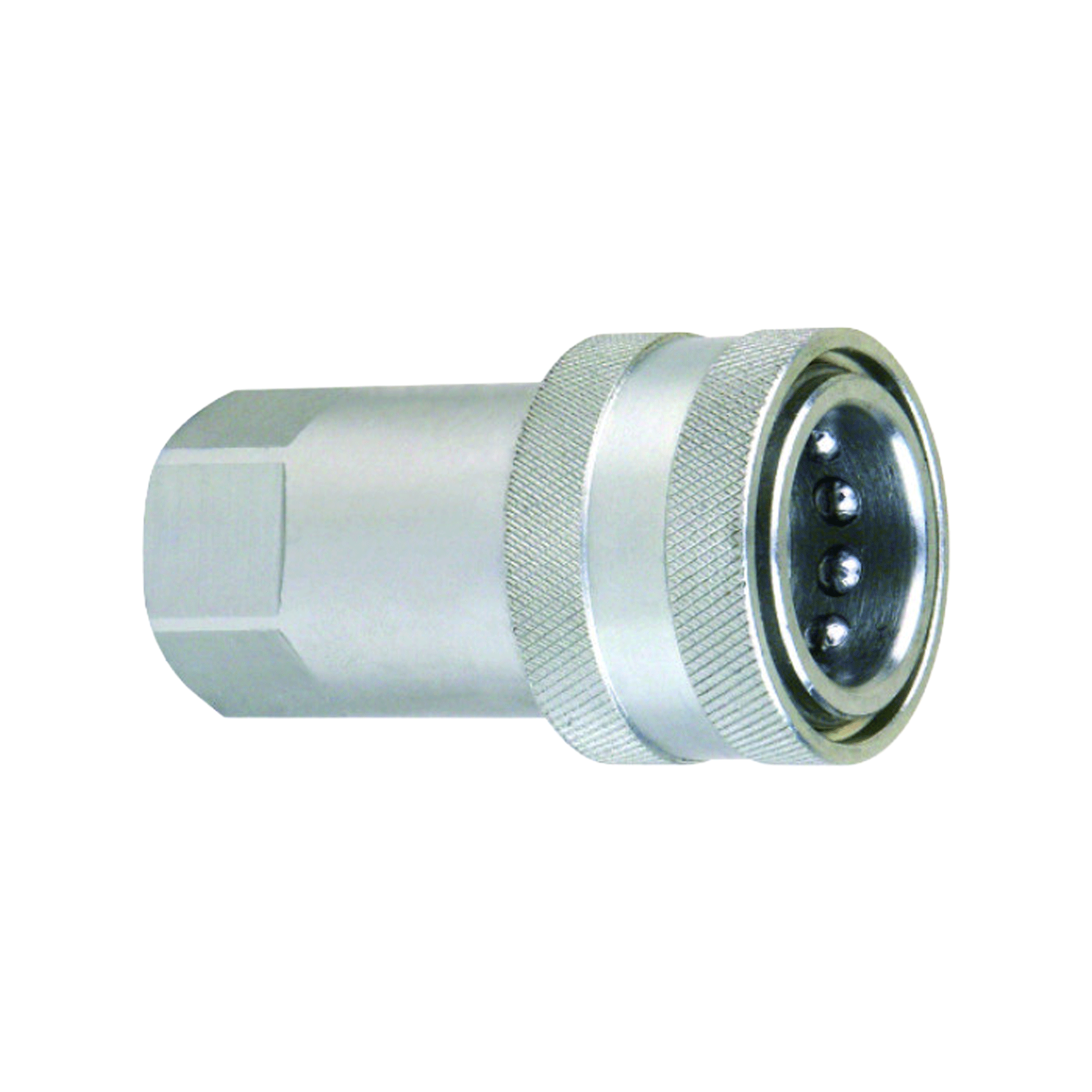

ANV | Zinc plated | Poppet Valve | Steel. Connects by sleeve retraction. Interchanges with Faster agri Faster NV Faster ANV Parker 6600 series Stucchi BIR series Stucchi IRV series. To ISO 7241-1 series A. -25 °C to +125 °C. Zinc plated (CRIII) – MATE 500 surface. Steel. 6 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Part No. Female | Body Size | D mm | Ls mm | Hs mm | T | Dash Size | Max W.P Female (Bar) |
|---|---|---|---|---|---|---|---|
| 1/4” | 25 | 47 | S19 | 1/4 BSPF | -4 | 350 | |
| 3/8” | 31 | 57 | S22 | 3/8 BSPF | -6 | 315 | |
| 1/2” | 38 | 66 | S27 | 1/2 BSPF | -8 | 250 | |
| 3/4” | 48 | 82.5 | S34 | 3/4 BSPF | -12 | 250 | |
| 1” | 54 | 97 | S41 | 1 BSPF | -16 | 230 | |
| 1.1/4” | 70 | 117 | S50 | 1.1/4 BSPF | -20 | 230 |
