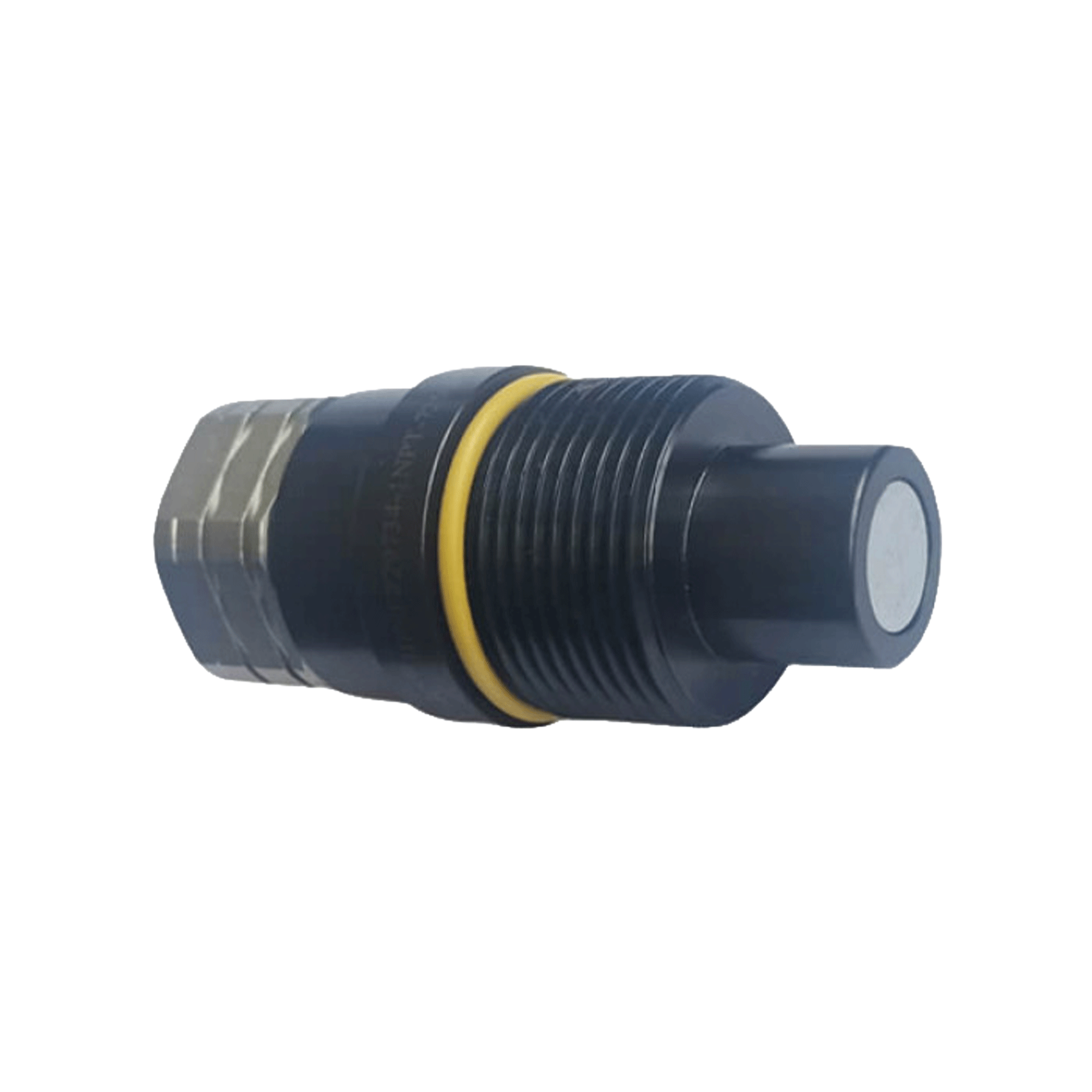

VEP | Zinc-Nickel (ZnNi) – MATE 1000 | Flat Valve | Screw to connect | Steel. Connects by screw to connect. Interchanges with Stucchi VEP - P series Parker FET series Faster FHV series Holmbury HFT series DNP PST4 series Voswinkel FT series. To ISO 16028. -25 °C to +125 °C. Zinc-Nickel (ZnNi) – MATE 1000 surface. Steel. 8 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Part No. Male | Body Size | N | M mm | Hp mm | Lp mm | T | Dash Size | Max W.P Male (Bar) |
|---|---|---|---|---|---|---|---|---|
| 3/8” | M33x2 | 37.8 | 27 | 82.5 | 3/8 BSPF | -6 | 550 | |
| 3/8” | M33x2 | 37.8 | 27 | 86 | 1/2 BSPF | -6 | 550 | |
| 1/2” | M40x3 | 45.8 | 36 | 97 | 1/2 BSPF | -8 | 550 | |
| 1/2” | M40x3 | 45.8 | 36 | 99 | 1.1/16 UNOF | -8 | 550 | |
| 3/4” | M50x3 | 54.8 | 46 | 114 | 1.1/16 UNOF | -12 | 500 | |
| 3/4” | M50x3 | 54.8 | 46 | 114 | 1 BSPF | -12 | 500 | |
| 1” | M58x3 | 64.5 | 55 | 123.5 | 1.5/16 UNOF | -16 | 470 | |
| 1” | M58x3 | 64.5 | 55 | 123.5 | 1.1/4 BSPF | -16 | 470 |
