Female

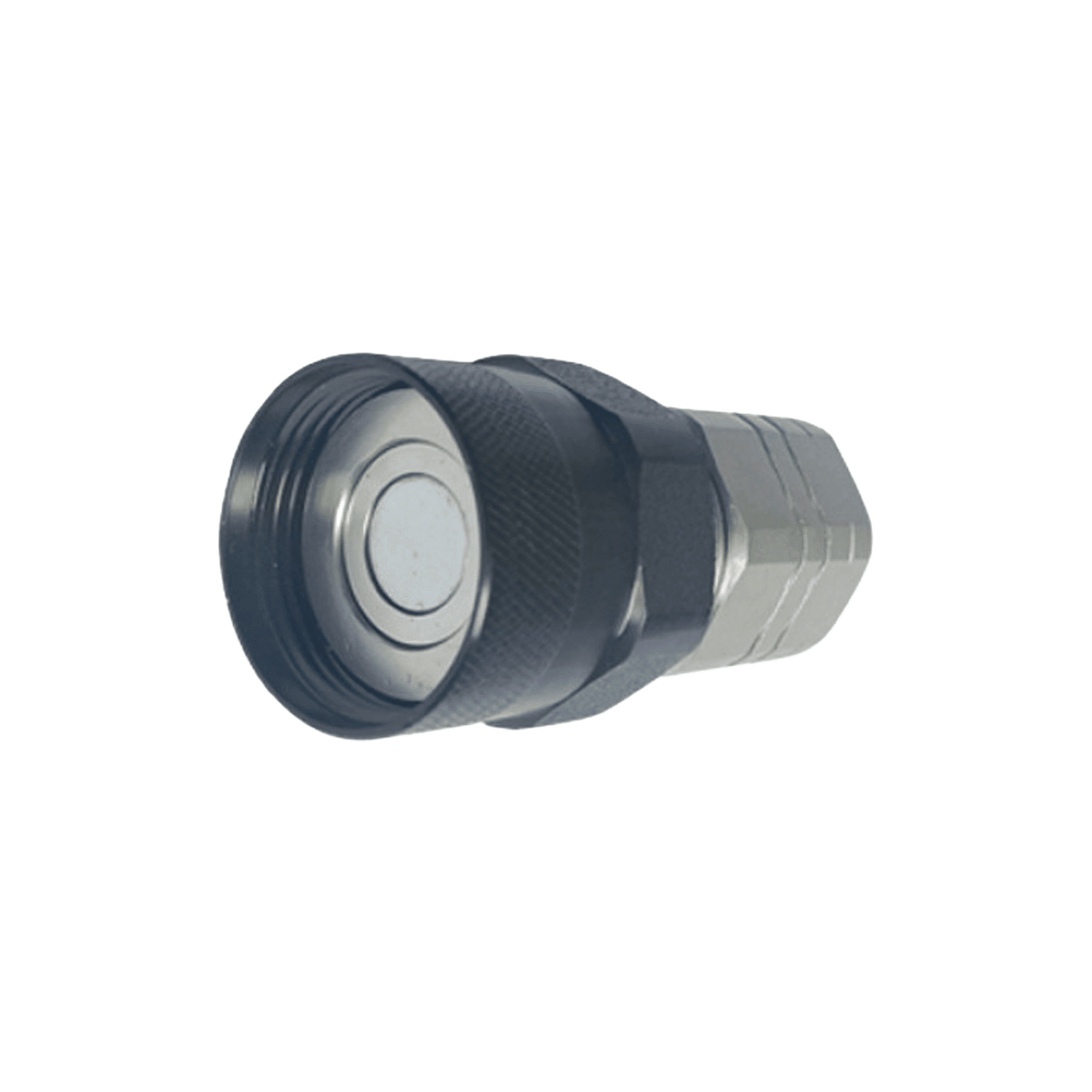

VEP | Zinc-Nickel (ZnNi) – MATE 1000 | Flat Valve | Screw to connect | Steel. Connects by screw to connect. Interchanges with Stucchi VEP - P series Parker FET series Faster FHV series Holmbury HFT series DNP PST4 series Voswinkel FT series. To ISO 16028. -25 °C to +125 °C. Zinc-Nickel (ZnNi) – MATE 1000 surface. Steel. 8 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Part No. Female | Body Size | E mm | Hs mm | Hq mm | Ls mm | T | Dash Size | Max W.P Female (Bar) |
|---|---|---|---|---|---|---|---|---|
| 3/8” | 41.8 | 30 | 38 | 70 | 3/8 BSPF | -6 | 330 | |
| 3/8” | 41.8 | 30 | 38 | 71.5 | 1/2 BSPF | -6 | 330 | |
| 1/2” | 49.8 | 36 | 46 | 78 | 1/2 BSPF | -8 | 330 | |
| 1/2” | 49.8 | 36 | 46 | 85 | 1.1/16 UNOF | -8 | 330 | |
| 3/4” | 58.8 | 46 | 55 | 99 | 1 BSPF | -12 | 330 | |
| 3/4” | 58.8 | 46 | 55 | 99 | 1.1/16 UNOF | -12 | 330 | |
| 1” | 70 | 55 | 65 | 106 | 1.1/4 BSPF | -16 | 300 | |
| 1” | 70 | 55 | 65 | 105 | 1.5/16 UNOF | -16 | 300 |
No size matches that. Clear the filter to see them all.
