Female

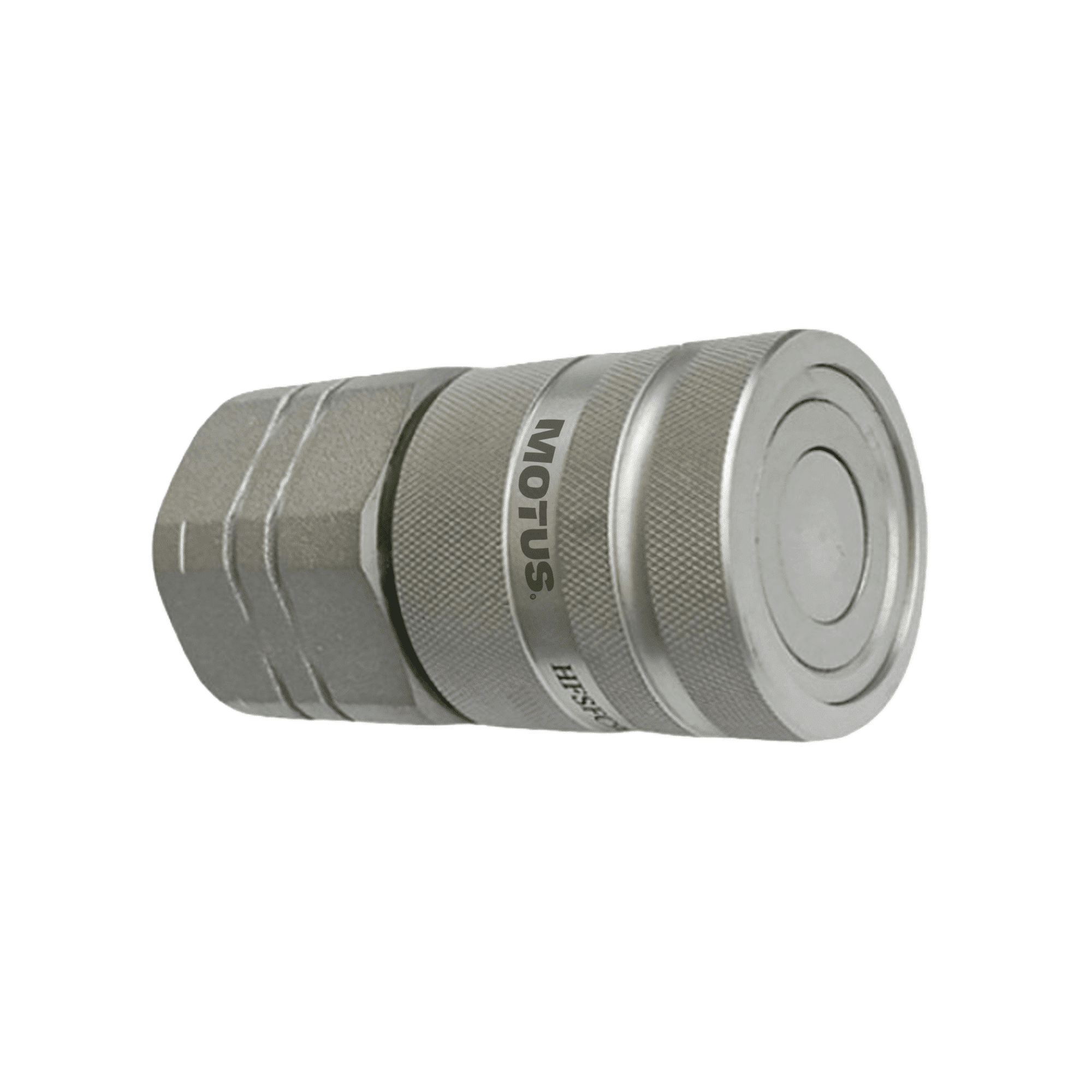

3FFH | Zinc-Nickel (ZnNi) – MATE 1000 | Flat Valve | Connection Under Pressure | Steel. Connects by push to connect. Interchanges with Faster 3FFH series Voswinkel FH series Stucchi A - HD series Parker FEM series. To ISO 16028. -25 °C to +125 °C. Zinc-Nickel (ZnNi) – MATE 1000 surface. Steel. 7 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Part No. Female | Body Size | D mm | Ls mm | Hs mm | T | Dash Size | Max W.P Female (Bar) |
|---|---|---|---|---|---|---|---|
| 3/8” | 32 | 69 | 30 | 3/8 BSPF | -6 | 350 | |
| 3/8” | 32 | 70 | 30 | 1/2 BSPF | -6 | 350 | |
| 1/2” | 38 | 77.5 | 36 | 1/2 BSPF | -8 | 330 | |
| 1/2” | 38 | 84 | 36 | 3/4 BSPF | -8 | 330 | |
| 3/4” | 48 | 95.8 | 46 | 3/4 BSPF | -12 | 300 | |
| 3/4” | 48 | 98.8 | 46 | 1 BSPF | -12 | 300 | |
| 1” | 55 | 104.5 | 55 | 1 BSPF | -16 | 300 |
