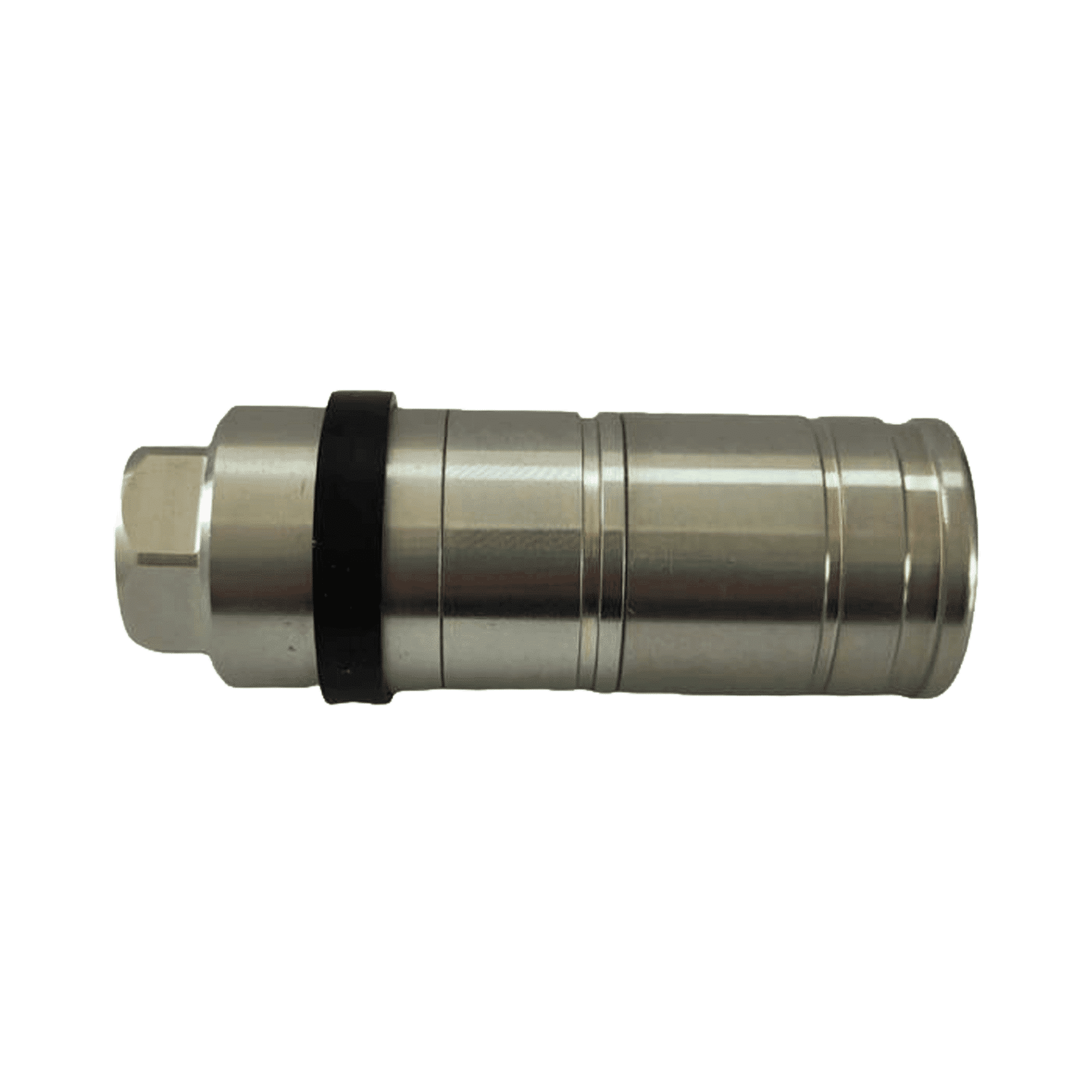

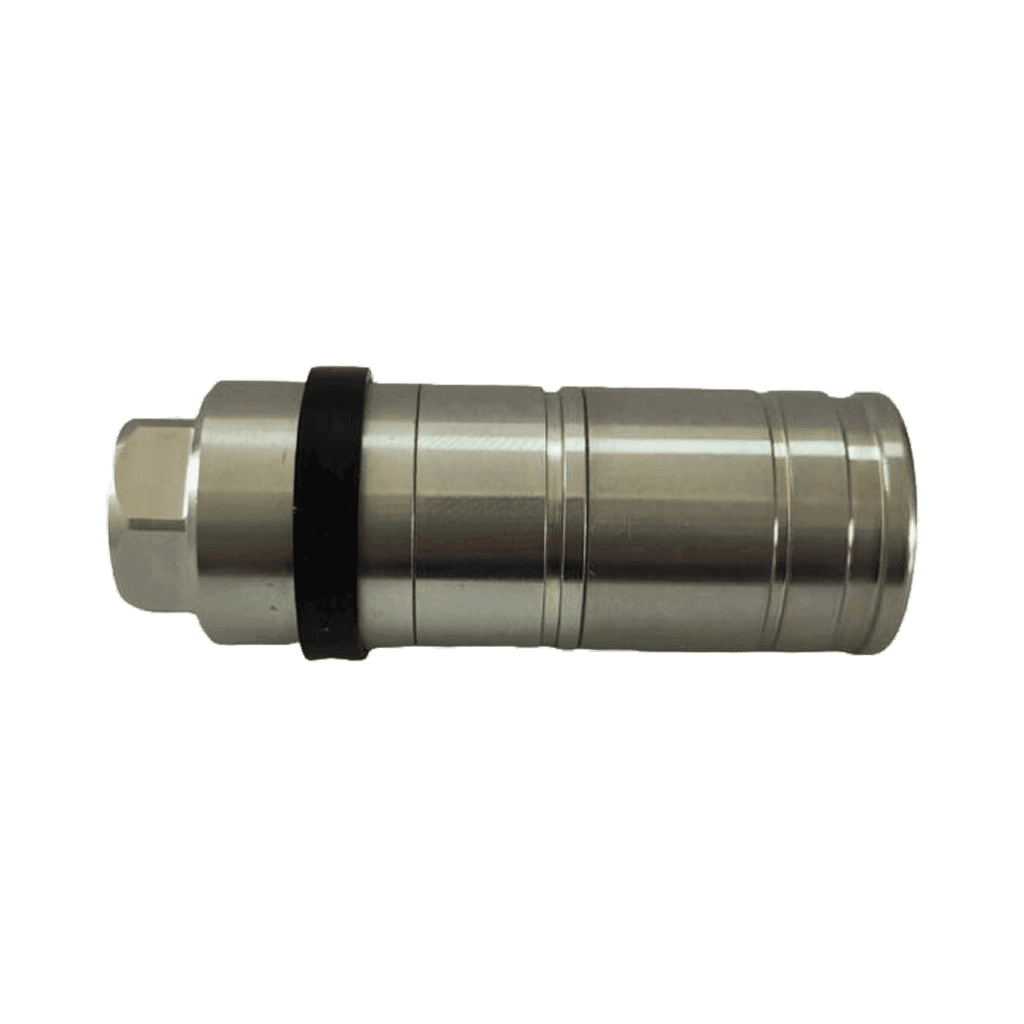

Valve Port Installation | Zinc plated (CRIII) – MATE 500 | Poppet Valve | Steel. Connects by sleeve retraction. Interchanges with Faster 3CFHF Parker RSD DNP PPK3 Stauff UX Voswinkel UX. To ISO 7241-1 series A. -25 °C to +125 °C. Zinc plated (CRIII) – MATE 500 surface. Steel. 12 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Part No. | Body Size | Standard Type | D mm | Hs mm | Ls mm | T | Dash Size | Max W.P Female (Bar) |
|---|---|---|---|---|---|---|---|---|
| 1/2” | DIN 3852-2 | 38 | 32 | 107.2 | 1/2”BSPP | -8 | 250 | |
| 1/2” | DIN 3852-2 | 38 | 32 | 107.2 | 1/2”NPT | -8 | 250 | |
| 1/2” | SAE J 1926-1 | 38 | 32 | 107.2 | 3/4”-16UNF-2B | -8 | 250 | |
| 1/2” | SAE J 1926-1 | 38 | 32 | 107.2 | 7/8”-14UNF-2B | -8 | 250 | |
| 1/2” | ISO 8434-1 - L | 38 | 32 | 113.2 | M18x1.5-12L | -8 | 250 | |
| 1/2” | ISO 8434-1 - S | 38 | 32 | 113.2 | M20x1.5-12S | -8 | 250 | |
| 1/2” | ISO 8434-1 - L | 38 | 32 | 113.2 | M22x1.5-15L | -8 | 250 | |
| 1/2” | ISO 8434-1 - S | 38 | 32 | 113.2 | M24x1.5-16S | -8 | 250 | |
| 1/2” | ISO 11926-3 | 38 | 32 | 131.5 | 3/4”-16UNF-2A | -8 | 250 | |
| 1/2” | ISO 11926-3 | 38 | 32 | 133.5 | 7/8”-14UNF-2A | -8 | 250 | |
| 1/2” | ISO 8434-2 | 38 | 32 | 133.5 | 3/4”-16UNF-2A | -8 | 250 | |
| 1/2” | DIN 7463 | 38 | 32 | 133.5 | M22x1.5 | -8 | 250 |
