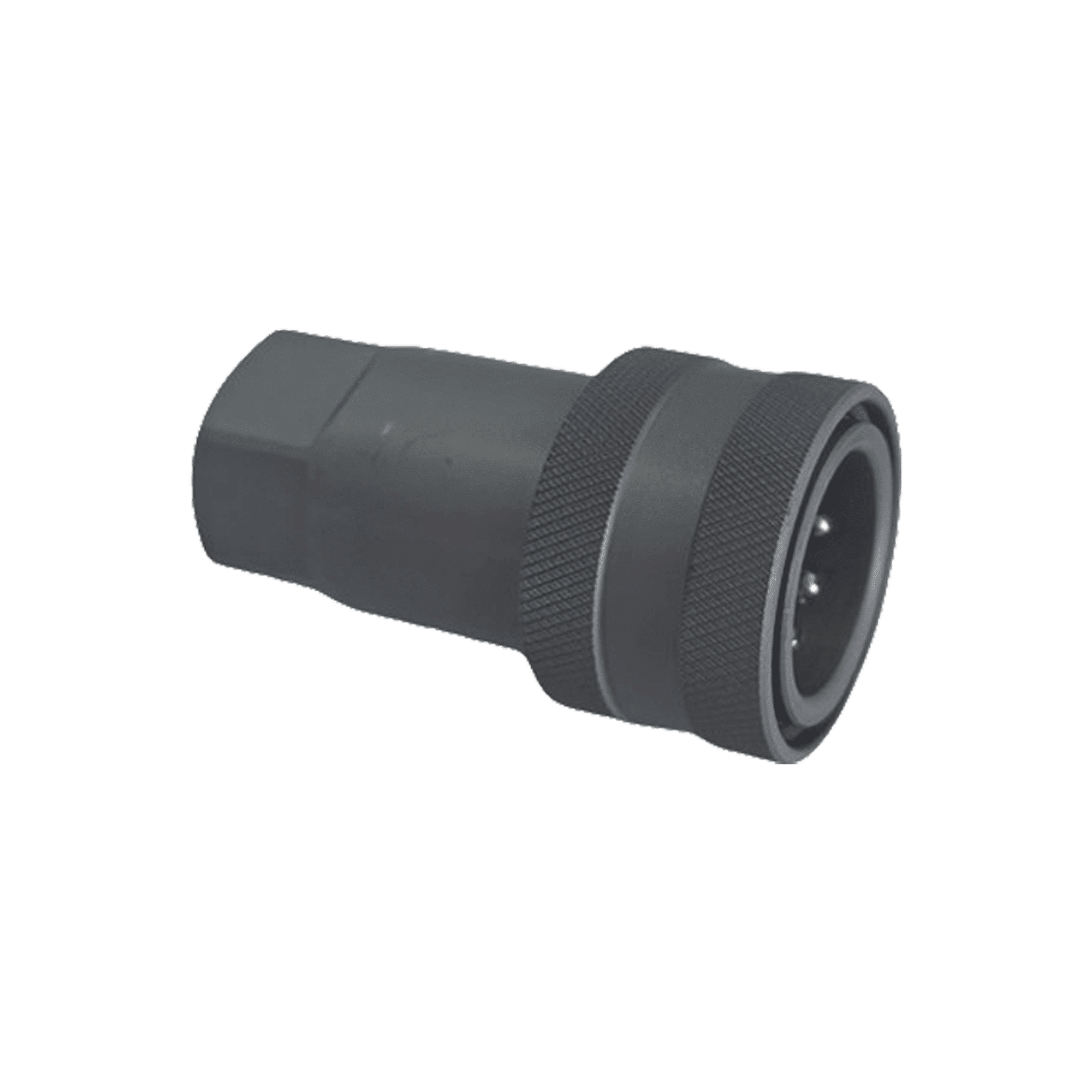

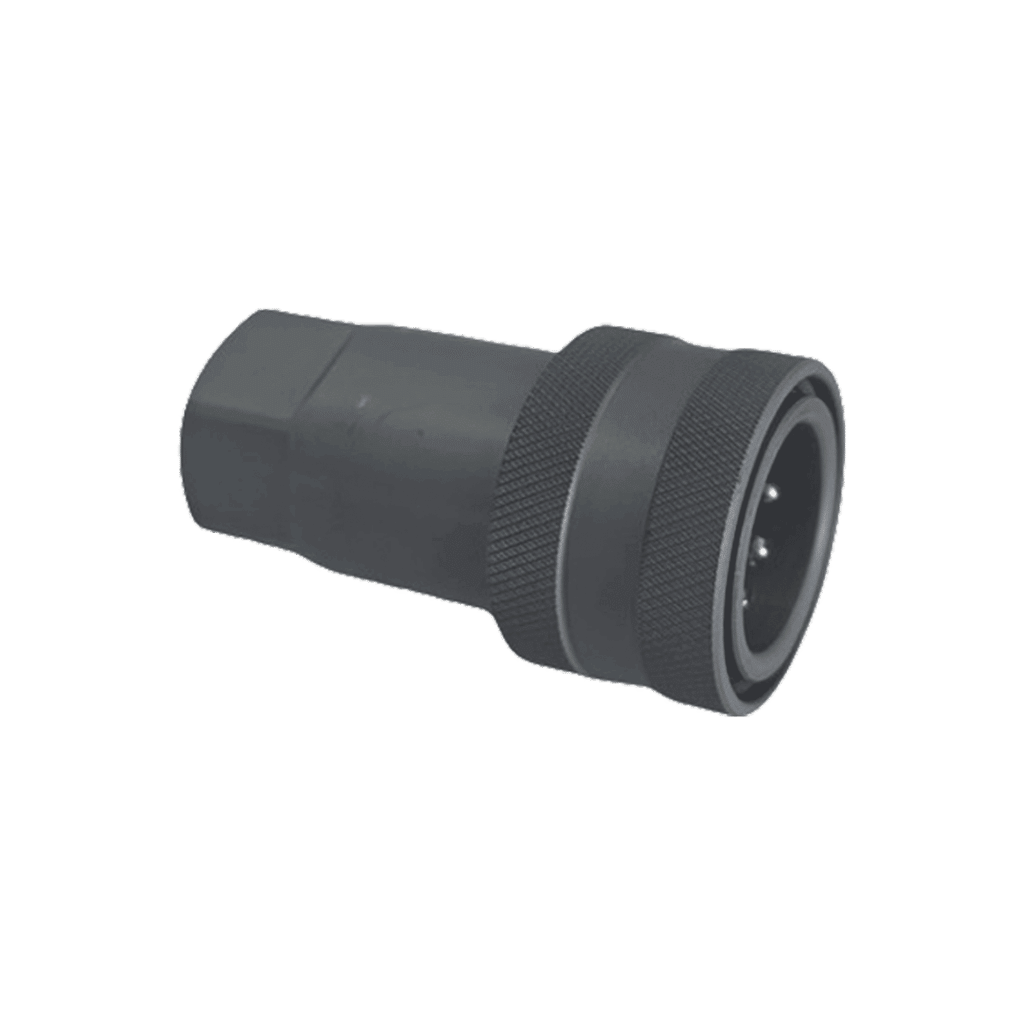

Agri NV | ZnNi Plated | Poppet Valve | Steel. For agricultural machinery Tractors and attachments Loaders and implements Industrial hydraulic circuits Mobile equipment. Connects by sleeve retraction. Interchanges with Faster agri, faster NV, faster ANV. To ISO 7241-1 series A. -25 °C to +125 °C. Zinc-Nickel (ZnNi) – MATE 1000 surface. Steel. 6 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Part NO. Female | Body size | D mm | Ls mm | Hs mm | T | Dash size | Max W.P Female (Bar) |
|---|---|---|---|---|---|---|---|
| 1/4” | 25 | 47 | S19 | 1/4 BSPF | -4 | 350 | |
| 3/8” | 31 | 57 | S22 | 3/8 BSPF | -6 | 315 | |
| 1/2” | 38 | 66 | S27 | 1/2 BSPF | -8 | 250 | |
| 3/4” | 48 | 82.5 | S34 | 3/4 BSPF | -12 | 250 | |
| 1” | 54 | 97 | S41 | 1 BSPF | -16 | 230 | |
| 1.1/4” | 70 | 117 | S50 | 1.1/4 BSPF | -20 | 230 |
Note: Other seal materials and configurations available on request.
