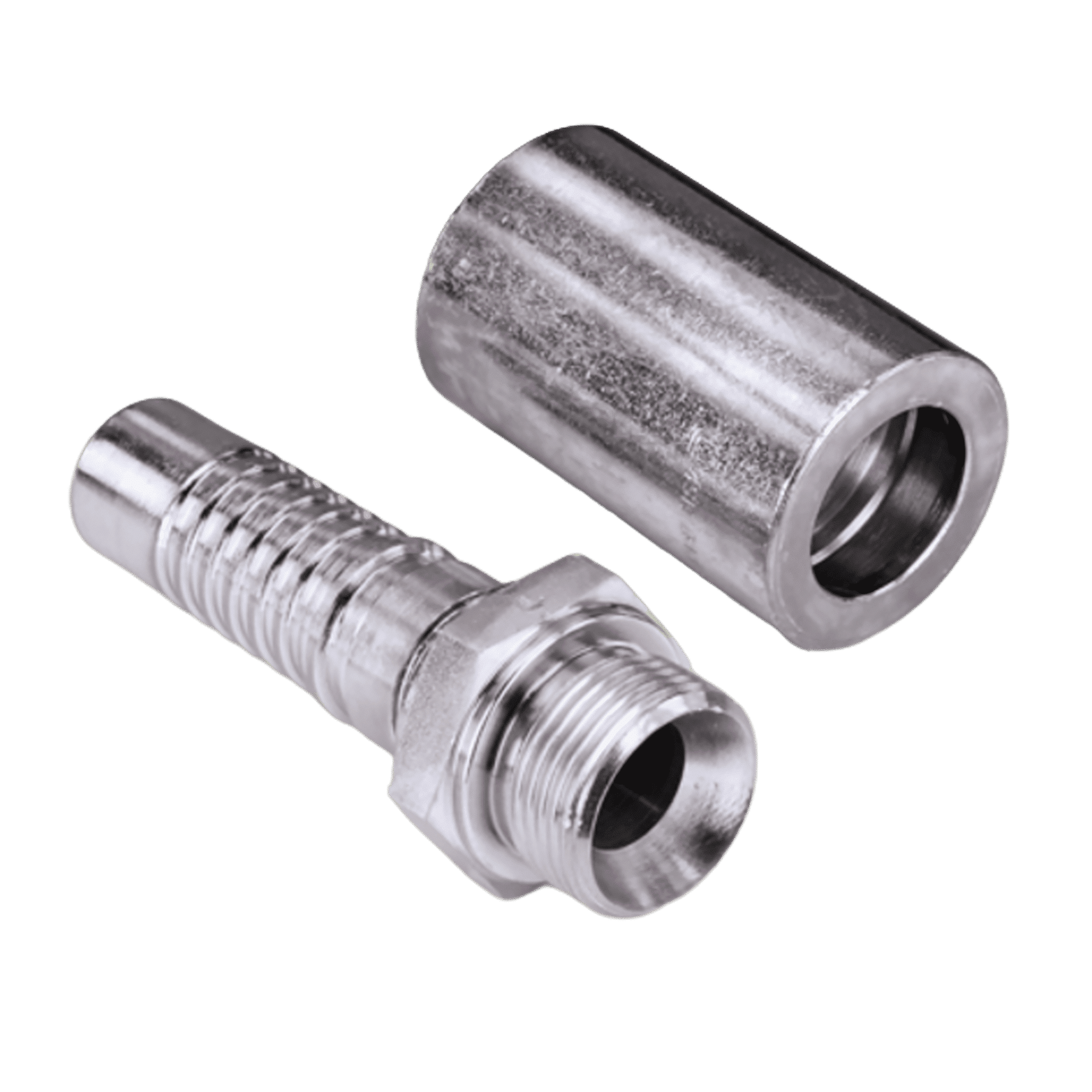

Swage fitting, AGR. For swage fitting for MH800 hose. BSP external thread, cylindrical. 60° inner cone. To ISO 8434-6, BS 5200. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 7 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | G1 | L1 mm | S1 |
|---|---|---|---|---|---|---|
| 12 | 8 | 1/2” | G 1/2”–14 | 79.3 | 27 | |
| 16 | 10 | 5/8” | G 5/8”–14 | 92.8 | 30 | |
| 19 | 12 | 3/4” | G 3/4”–14 | 97.5 | 32 | |
| 25 | 16 | 1” | G 1”–11 | 114.5 | 41 | |
| 31 | 20 | 1.1/4” | G 1.1/4”–11 | 125.5 | 50 | |
| 38 | 24 | 1.1/2” | G 1.1/2”–11 | 143.5 | 55 | |
| 51 | 32 | 2” | G 2”–11 | - | - |
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
