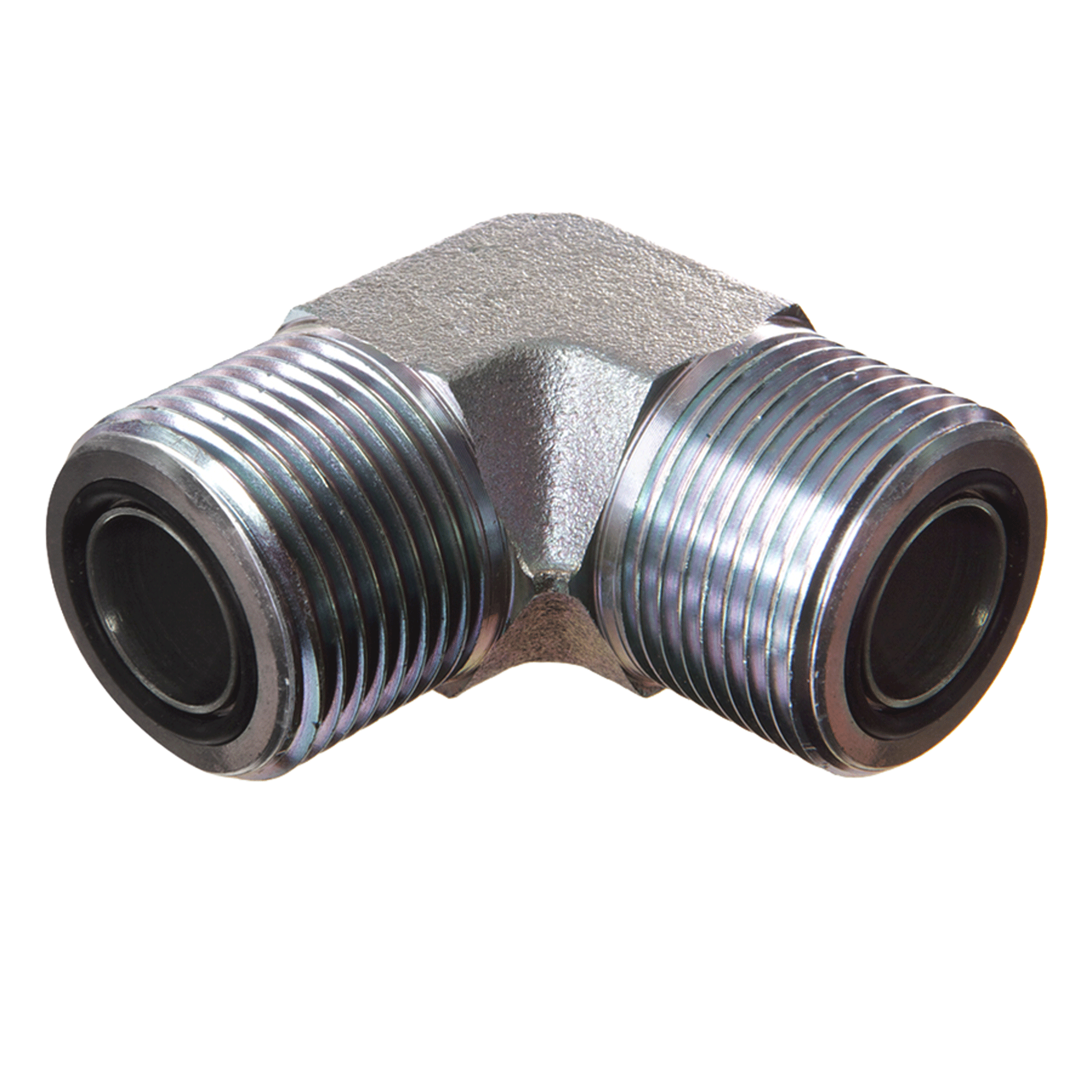

Fitting socket, angle 90°. ORFS external threads at both ends. Flat seal with O-ring. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 11 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | G2 | SW mm | OR1 | OR2 |
|---|---|---|---|---|---|
| 9/16”-18 UNF | 9/16”-18 UNF | 14 | 7.65 x 1.78 | 7.65 x 1.78 | |
| 9/16”-18 UNF | 11/16”-16 UN | 19 | 7.65 x 1.78 | 9.25 x 1.78 | |
| 11/16”-16 UN | 11/16”-16 UN | 19 | 9.25 x 1.78 | 9.25 x 1.78 | |
| 11/16”-16 UN | 13/16”-16 UN | 19 | 9.25 x 1.78 | 12.42 x 1.78 | |
| 13/16”-16 UN | 13/16”-16 UN | 19 | 12.42 x 1.78 | 12.42 x 1.78 | |
| 13/16”-16 UN | 1.3/16”-12 UN | 30 | 12.42 x 1.78 | 18.77 x 1.78 | |
| 1”–14 UNS | 1”–14 UNS | 27 | 15.60 x 1.78 | 15.60 x 1.78 | |
| 1.3/16”-12 UN | 1.3/16”-12 UN | 30 | 18.77 x 1.78 | 18.77 x 1.78 | |
| 1.7/16”-12 UN | 1.7/16”-12 UN | 36 | 23.52 x 1.78 | 23.52 x 1.78 | |
| 1.11/16”-12 UN | 1.11/16”-12 UN | 41 | 29.87 x 1.78 | 29.87 x 1.78 | |
| 2”–12 UN | 2”–12 UN | 48 | 37.82 x 1.78 | 37.82 x 1.78 |
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
