Hydraulic Adaptors

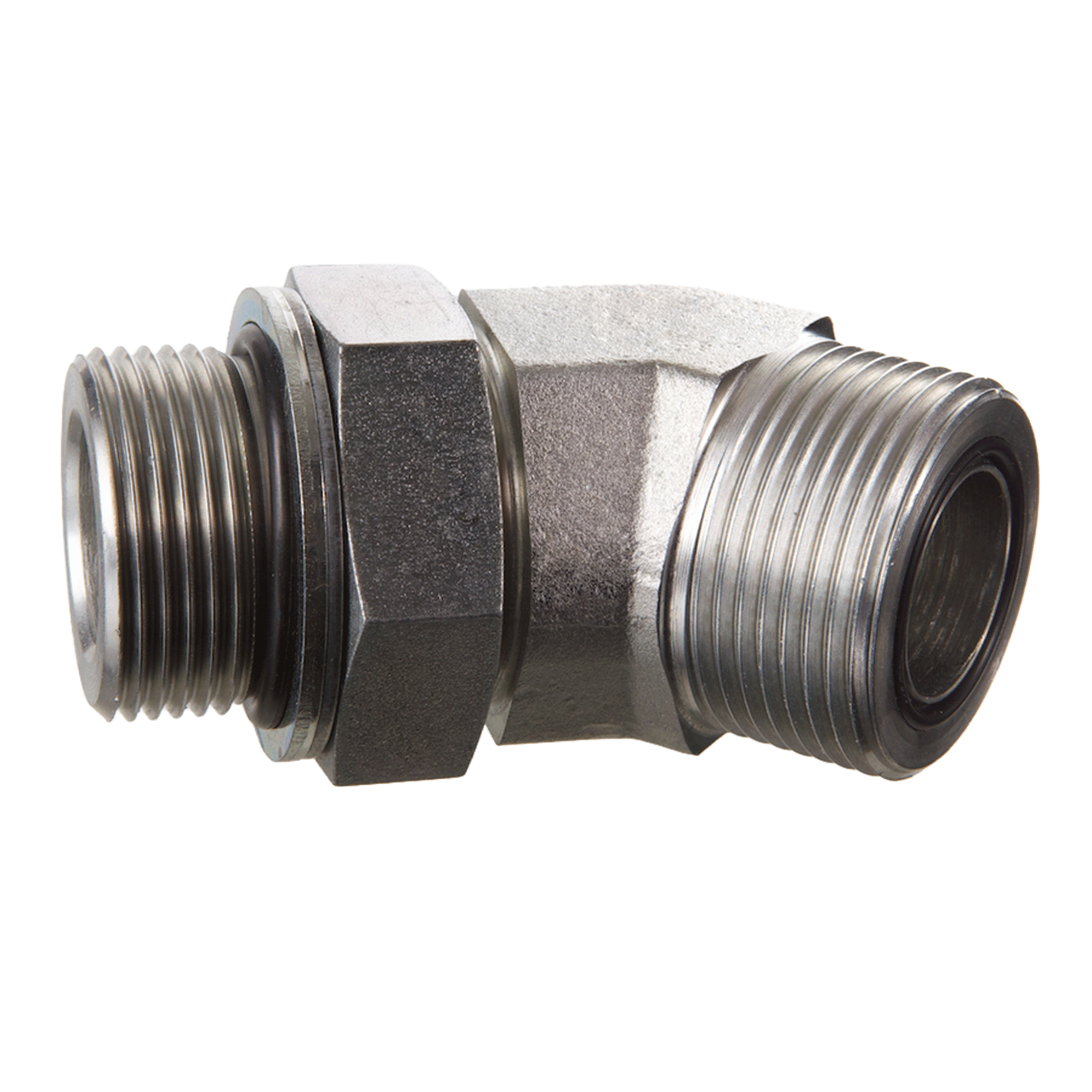

ORFS Male / BSPP Male Positional 45

ORFS Male / BSPP Male Positional 45

Screw-in socket, angle 45°. Adjustable direction screw-in socket. BSP external thread, cylindrical to oRFS external threads. Thread socket with O-ring + spacer diaphragm ring one end, flat seal with O-ring the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 14 sizes, each with its own part number.

14sizes
BPP-ORM-45C-0209-MC to BPP-ORM-45C-2432-MC
Request a priceData sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

SurfaceMotusCoat™
MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

IdentificationG1G2SW mmS1OR1OR2
G 1/8”–289/16”–18 UNF14148.00 x 2.007.65 x 1.78
G 1/4”–199/16”–18 UNF191910.77 x 2.627.65 x 1.78
G 1/4”–1911/16”–16 UN191910.77 x 2.629.25 x 1.78
G 3/8”–1911/16”–16 UN192213.94 x 2.629.25 x 1.78
G 3/8”–1913/16”–16 UN192213.94 x 2.6212.42 x 1.78
G 1/2”–1411/16”–16 UN272717.86 x 2.629.25 x 1.78
G 1/2”–1413/16”–16 UN272717.86 x 2.6212.42 x 1.78
G 1/2”–141”–14 UNS272717.86 x 2.6215.60 x 1.78
G 3/4”–141”–14 UNS303623.47 x 2.6215.60 x 1.78
G 3/4”–141.3/16”–12 UN303623.47 x 2.6218.77 x 1.78
G 1”–111.3/16”–12 UN364129.75 x 3.5318.77 x 1.78
G 1”–111.7/16”–12 UN364129.75 x 3.5323.52 x 1.78
G 1.1/4”–111.11/16”–12 UN415037.69 x 3.5329.87 x 1.78
G 1.1/2”–112”–12 UN505544.04 x 3.5337.82 x 1.78

SW, S1, S2 = Width across flats

The details

Connection 1
BSP external thread, cylindrical
Sealing form 1
Thread socket with O-ring + spacer diaphragm ring
Connection 2
ORFS external threads
Sealing form 2
Flat seal with O-ring
Design
Adjustable direction screw-in socket
Construction
Angle 45°
Material
Steel
Surface
MotusCoat™

Downloads

ORFS Male / BSPP Male Positional 45 data sheetPDF, matches the catalogueDownload
Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

Competitor coating after 1000-hour salt spray testing
A fitting with a competitor coating, covered in red rust
A fitting with MotusCoat, with no red rust
MotusCoat™After a 1000-hour salt spray test according to DIN EN ISO 9227
