Hydraulic Adaptors

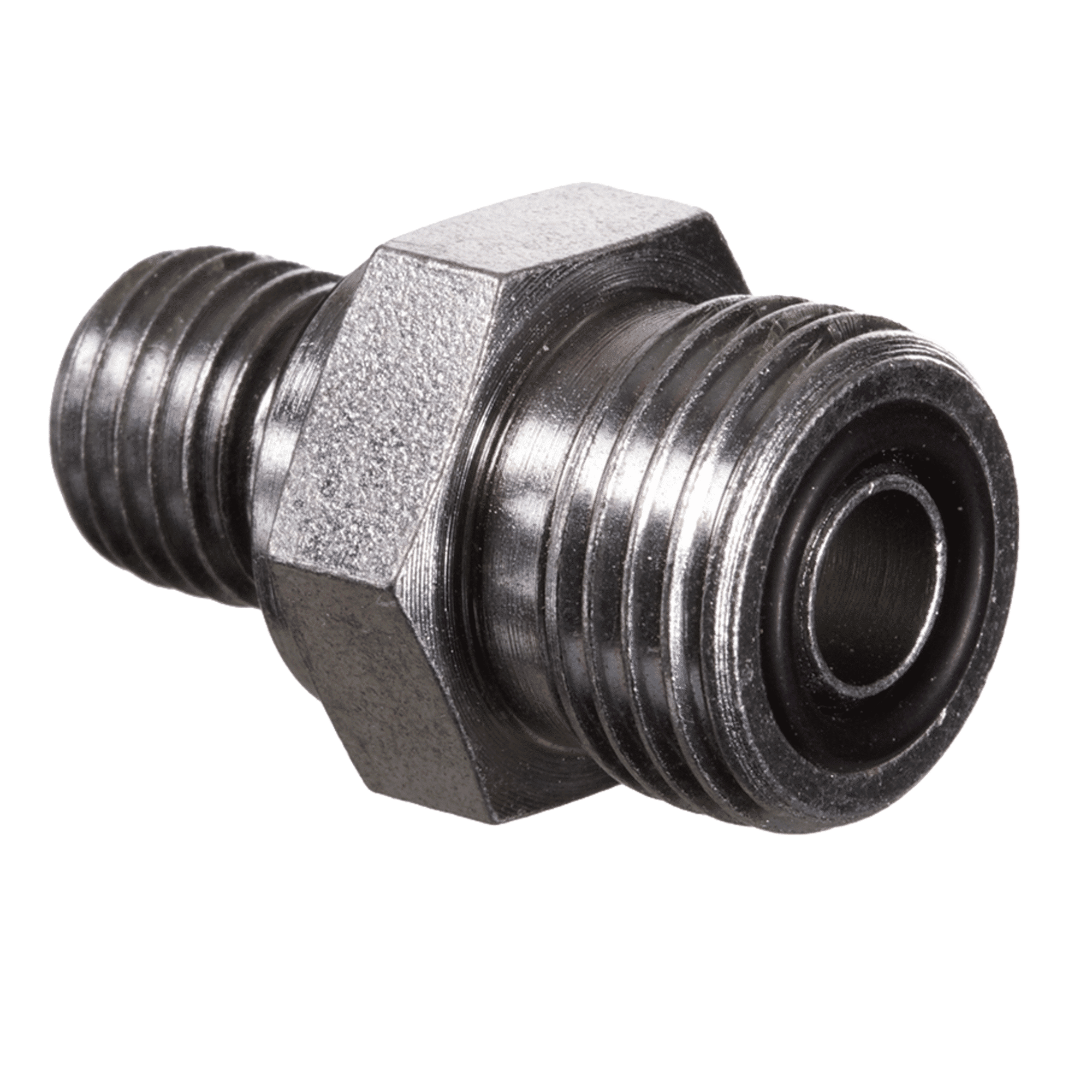

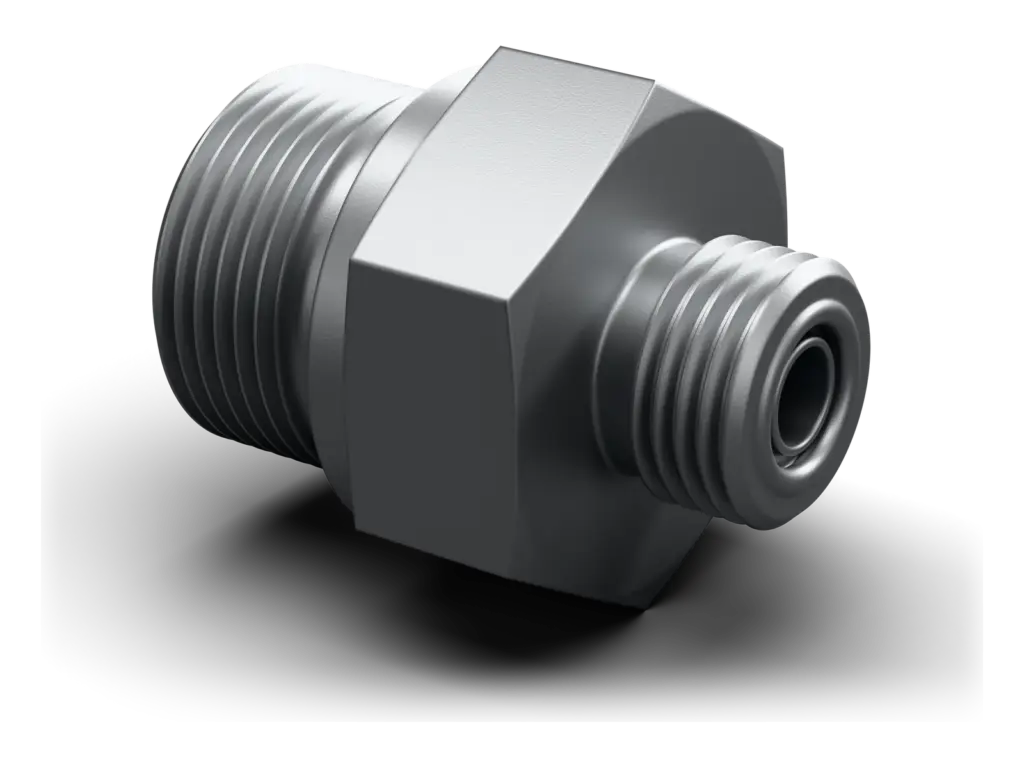

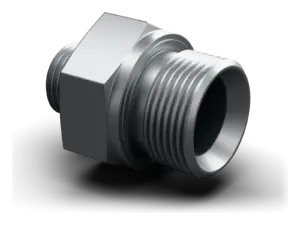

ORFS Male / BSPP Captive Male

ORFS Male / BSPP Captive Male

Screw-in sockets. Straight. BSP external thread, cylindrical to oRFS external threads. Shape E one end, flat seal with O-ring the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 28 sizes, each with its own part number.

28sizes
EDB-ORM-0209-MC to EDB-ORM-2432-MC
Request a priceData sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

SurfaceMotusCoat™
MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

SW
Width across flats
IdentificationG1G2SW mmOR
G 1/8”–289/16”–18 UNF177.65 x 1.78
G 1/8”–2811/16”–16 UN199.25 x 1.78
G 1/4”–199/16”–18 UNF197.65 x 1.78
G 1/4”–1911/16”–16 UN199.25 x 1.78
G 1/4”–1913/16”–16 UN2212.42 x 1.78
G 3/8”–199/16”–18 UNF227.65 x 1.78
G 3/8”–1911/16”–16 UN229.25 x 1.78
G 3/8”–1913/16”–16 UN2212.42 x 1.78
G 3/8”–191”–14 UNS2715.60 x 1.78
G 1/2”–149/16”–18 UNF277.65 x 1.78
G 1/2”–1411/16”–16 UN279.25 x 1.78
G 1/2”–1413/16”–16 UN2712.42 x 1.78
G 1/2”–141”–14 UNS2715.60 x 1.78
G 1/2”–141.3/16”–12 UN3218.77 x 1.78
G 3/4”–1411/16”–16 UN329.25 x 1.78
G 3/4”–1413/16”–16 UN3212.42 x 1.78
G 3/4”–141”–14 UNS3215.60 x 1.78
G 3/4”–141.3/16”–12 UN3218.77 x 1.78
G 3/4”–141.7/16”–12 UN4123.52 x 1.78
G 1”–111”–14 UNS4115.60 x 1.78
G 1”–111.3/16”–12 UN4118.77 x 1.78
G 1”–111.7/16”–12 UN4123.52 x 1.78
G 1”–111.11/16”–12 UN4629.87 x 1.78
G 1.1/4”–111.7/16”–12 UN5023.52 x 1.78
G 1.1/4”–111.11/16”–12 UN5029.87 x 1.78
G 1.1/2”–111.7/16”–12 UN5523.52 x 1.78
G 1.1/2”–111.11/16”–12 UN5529.87 x 1.78
G 1.1/2”–112”–12 UN5537.82 x 1.78

Product Version: Stainless Steel (SS) Spare parts: WD - Soft seal for ED fittings

The details

Connection 1
BSP external thread, cylindrical
Sealing form 1
Shape E
Connection 2
ORFS external threads
Sealing form 2
Flat seal with O-ring
Design
Screw-in sockets
Construction
Straight
Material
Steel
Surface
MotusCoat™

Downloads

ORFS Male / BSPP Captive Male data sheetPDF, matches the catalogueDownload
Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

Competitor coating after 1000-hour salt spray testing
A fitting with a competitor coating, covered in red rust
A fitting with MotusCoat, with no red rust
MotusCoat™After a 1000-hour salt spray test according to DIN EN ISO 9227
