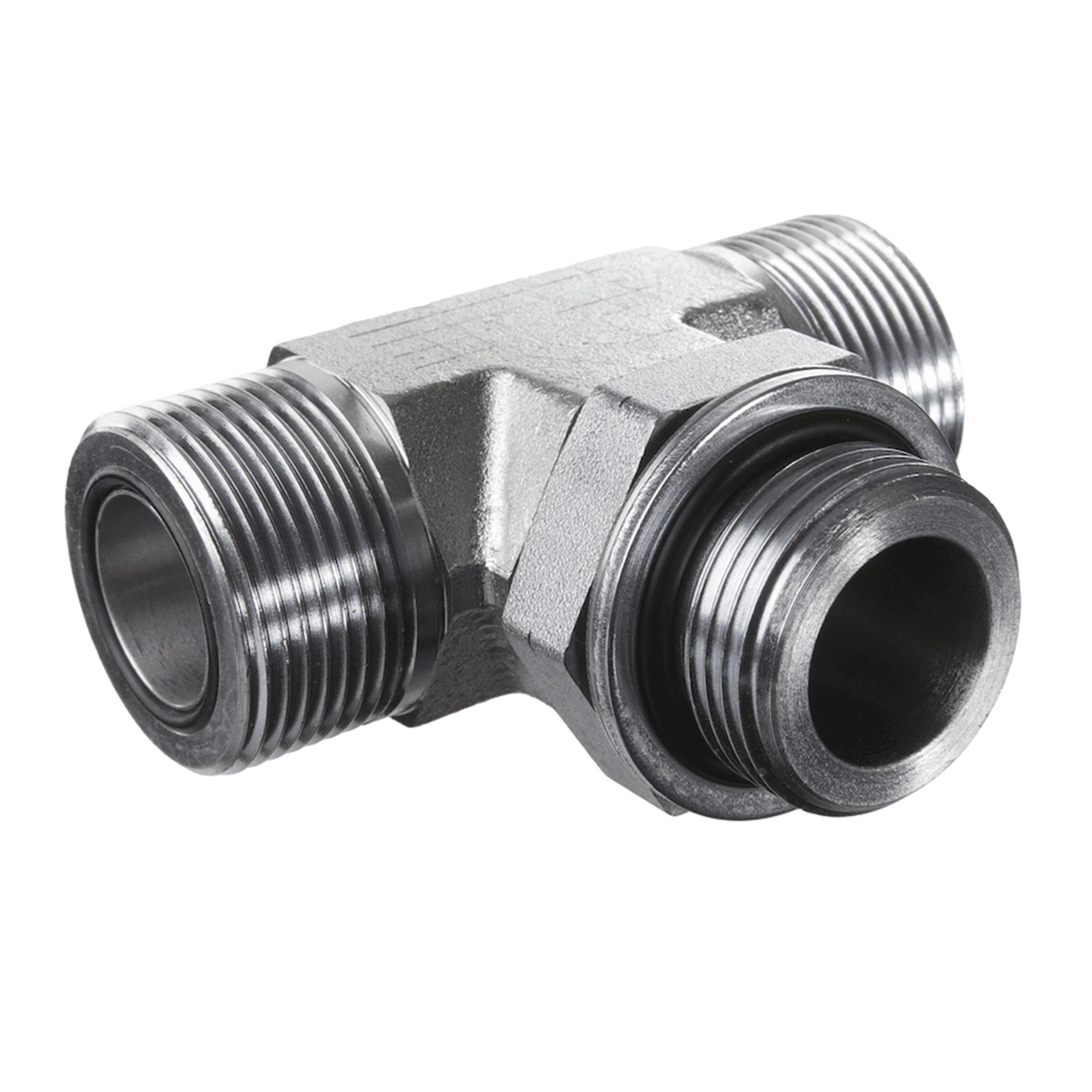

Screw-in socket, T shaped. Adjustable direction screw-on socket. BSP external thread, cylindrical to oRFS external threads. Thread socket with O-ring + spacer diaphragm ring one end, flat seal with O-ring the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 12 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | G2 + G3 | SW mm | S1 | OR1 | OR2 + OR3 |
|---|---|---|---|---|---|---|
| G 1/8”-28 | 9/16”-18 UNF | 14 | 14 | 8.00 x 2.00 | 7.65 x 1.78 | |
| G 1/4”-19 | 9/16”-18 UNF | 19 | 19 | 10.77 x 2.62 | 7.65 x 1.78 | |
| G 1/4”-19 | 11/16”-16 UN | 19 | 19 | 10.70 x 2.62 | 9.25 x 1.78 | |
| G 3/8”-19 | 11/16”-16 UN | 19 | 22 | 13.94 x 2.62 | 9.25 x 1.78 | |
| G 3/8”-19 | 13/16”-16 UN | 19 | 22 | 13.94 x 2.62 | 12.42 x 1.78 | |
| G 1/2”-14 | 13/16”-16 UN | 27 | 27 | 17.86 x 2.62 | 12.42 x 1.78 | |
| G 1/2”-14 | 1”-14 UNS | 27 | 27 | 17.86 x 2.62 | 15.60 x 1.78 | |
| G 3/4”-14 | 1”-14 UNS | 30 | 36 | 23.47 x 2.62 | 15.60 x 1.78 | |
| G 3/4”-14 | 1.3/16”-12 UN | 30 | 36 | 23.47 x 2.62 | 12.42 x 1.78 | |
| G 1”-11 | 1.7/16”-12 UN | 36 | 41 | 29.75 x 3.53 | 23.52 x 1.78 | |
| G 1.1/4”-11 | 1.11/16”-12 UN | 41 | 50 | 37.69 x 3.53 | 29.87 x 1.78 | |
| G 1.1/2”-11 | 2”-12 UN | 50 | 55 | 44.04 x 3.53 | 37.82 x 1.78 |
SW, S1, S2 = Width across flats
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
