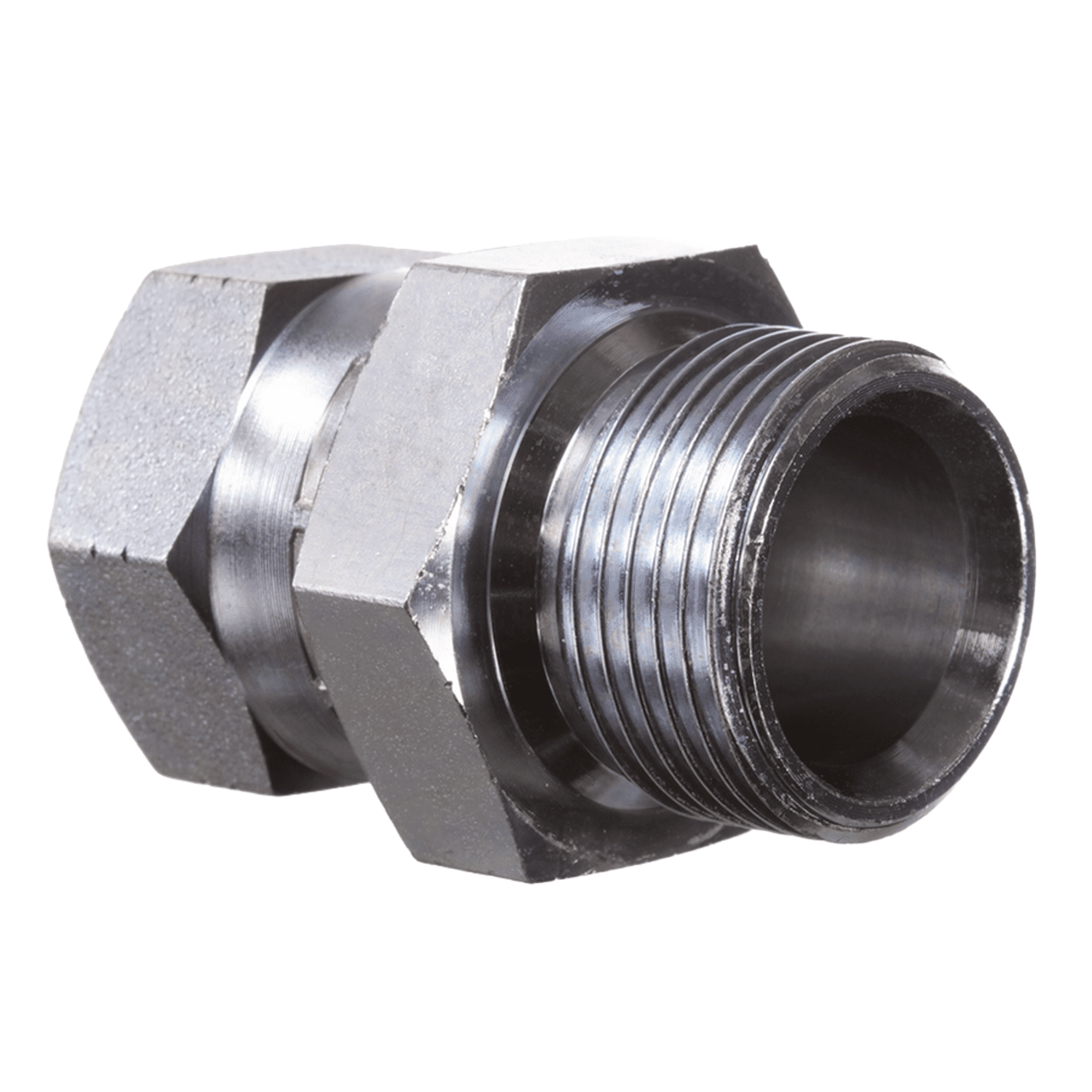

Connectors. Straight. ORFS nut threads to bSP cylindrical external threads. Flat sealing one end, 60° inner cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 17 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | G2 | SW mm | S1 |
|---|---|---|---|---|
| 9/16”-18 UNF | G 1/4”–19 | 19 | 17 | |
| 9/16”-18 UNF | G 3/8”–19 | 22 | 17 | |
| 11/16”–16 UN | G 1/4”–19 | 19 | 22 | |
| 11/16”–16 UN | G 3/8”–19 | 22 | 22 | |
| 11/16”–16 UN | G 1/2”–14 | 27 | 22 | |
| 13/16”–16 UN | G 3/8”–19 | 22 | 24 | |
| 13/16”–16 UN | G 1/2”–14 | 27 | 24 | |
| 1”–14 UNS | G 1/2”–14 | 27 | 30 | |
| 1”–14 UNS | G 5/8”–14 | 30 | 30 | |
| 1”–14 UNS | G 3/4”–14 | 32 | 30 | |
| 1.3/16”–12 UN | G 3/4”–14 | 32 | 36 | |
| 1.3/16”–12 UN | G 1”–11 | 41 | 36 | |
| 1.7/16”–12 UN | G 3/4”–14 | 32 | 41 | |
| 1.7/16”–12 UN | G 1”–11 | 41 | 41 | |
| 1.7/16”–12 UN | G 1.1/4”–11 | 50 | 41 | |
| 1.11/16”–12 UN | G 1.1/4”–11 | 50 | 50 | |
| 2”–12 UN | G 1.1/2”–11 | 55 | 60 |
SW, S1, S2 = Width across flats
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
