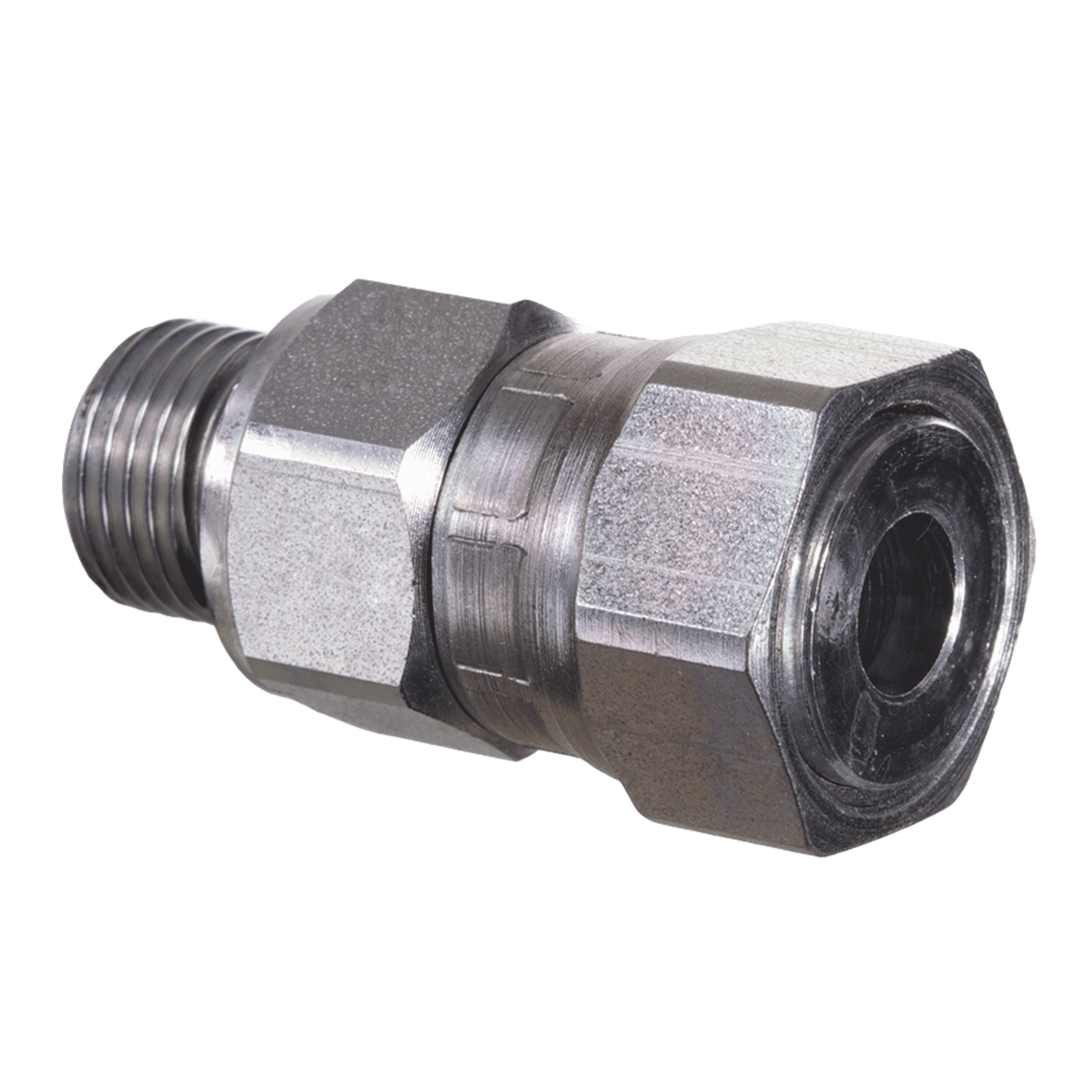

Screw-in sockets. Straight. BSP external thread, cylindrical to oRFS nut threads. Shape E one end, flat seal the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 15 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | Working pressure bar | G1 | G2 | SW mm | S1 |
|---|---|---|---|---|---|
| PN 500 | G 1/8”–28 | 9/16”-18 UNF | 14 | 17 | |
| PN 500 | G 1/4”–19 | 9/16”-18 UNF | 19 | 17 | |
| PN 630 | G 1/4”–19 | 11/16”–16 UN | 19 | 22 | |
| PN 630 | G 1/4”–19 | 13/16”–16 UN | 22 | 24 | |
| PN 630 | G 3/8”–19 | 11/16”–16 UN | 22 | 22 | |
| PN 630 | G 3/8”–19 | 13/16”–16 UN | 22 | 24 | |
| PN 420 | G 1/2”–14 | 11/16”–16 UN | 27 | 22 | |
| PN 420 | G 1/2”–14 | 13/16”–16 UN | 27 | 24 | |
| PN 400 | G 1/2”–14 | 1”–14 UNS | 27 | 30 | |
| PN 420 | G 1/2”–14 | 1.3/16”–12 UN | 30 | 36 | |
| PN 420 | G 3/4”–14 | 1”–14 UNS | 32 | 30 | |
| PN 400 | G 3/4”–14 | 1.3/16”–12 UN | 32 | 36 | |
| PN 400 | G 1”–11 | 1.7/16”–12 UN | 41 | 41 | |
| PN 250 | G 1.1/4”–11 | 1.11/16”–12 UN | 50 | 50 | |
| PN 250 | G 1.1/2”–11 | 2”–12 UN | 55 | 60 |
SW, S1, S2 = Width across flats
Spare Parts: WD Soft Seal for ED Fittings
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
