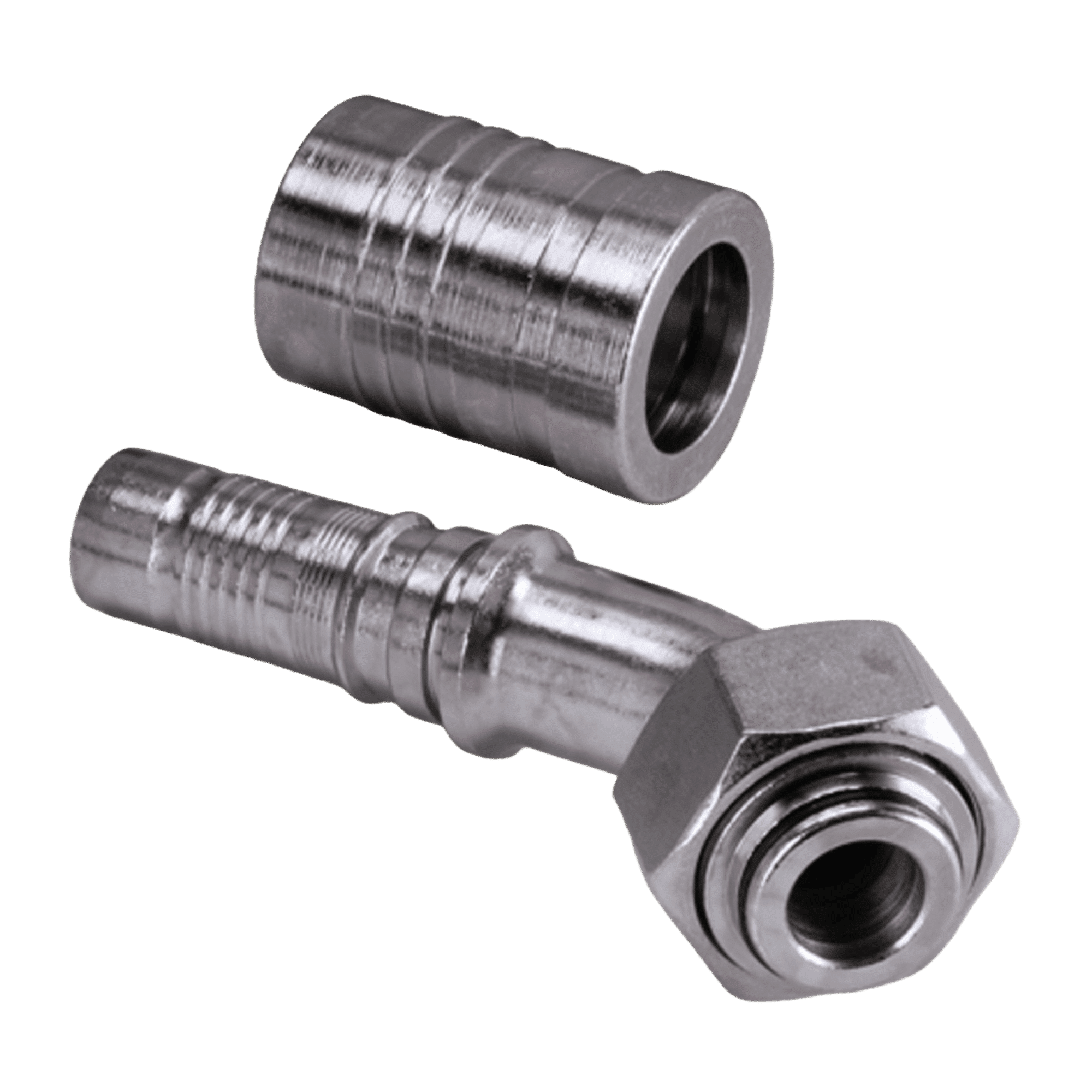

For swage fitting for HD 500 hoses. Metric nut thread. 24° outer cone with O-ring. To ISO 8434-1. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 2 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | G1 | for external pipe Ømm | L1 mm | L2 mm | S1 | OR |
|---|---|---|---|---|---|---|---|---|---|
| 31 | 20 | 1.1/4” | M 45 x 2 | 35 | 194.0 | 47.0 | 50 | 32.0 x 2.5 | |
| 38 | 24 | 1.1/2” | M 52 x 2 | 42 | 210.0 | 48.0 | 60 | 38.0 x 2.5 |
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
