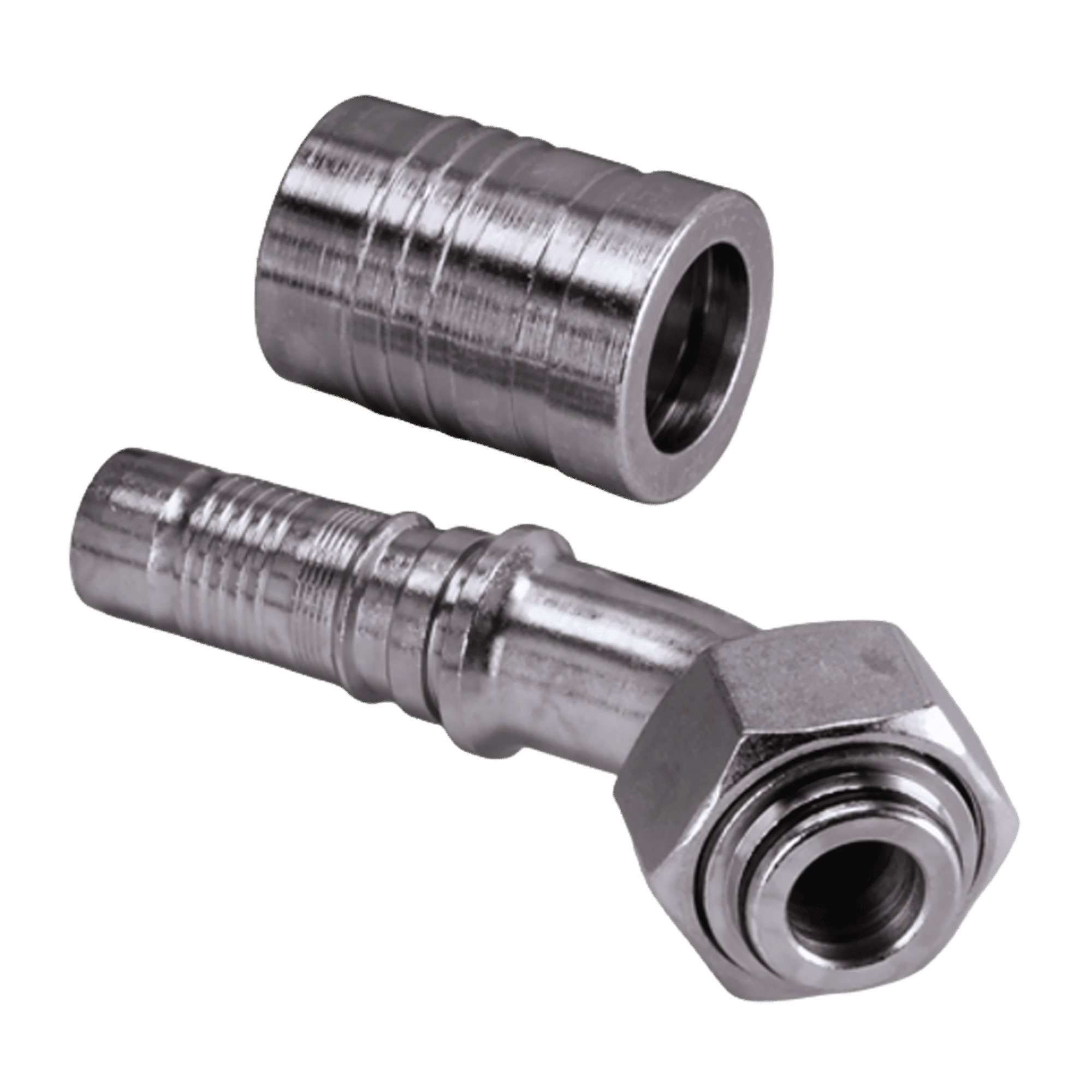

Swage fitting, DKOL angle 45°. For swage fitting for MH800 hose. Metric nut thread. 24° outer cone with O-ring. To ISO 8434-1. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 3 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | G1 | for external pipe Ø mm | L1 mm | L2 mm | S1 | OR |
|---|---|---|---|---|---|---|---|---|---|
| 10 | 6 | 3/8” | M 18 x 1.5 | 12 | 82.5 | 19.5 | 22 | 10.5 x 1.5 | |
| 12 | 8 | 1/2” | M 22 x 1.5 | 15 | 93.5 | 21.0 | 27 | 12.0 x 2.0 | |
| 16 | 10 | 5/8” | M 26 x 1.5 | 18 | 115.0 | 26.5 | 32 | 15.0 x 2.0 |
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
