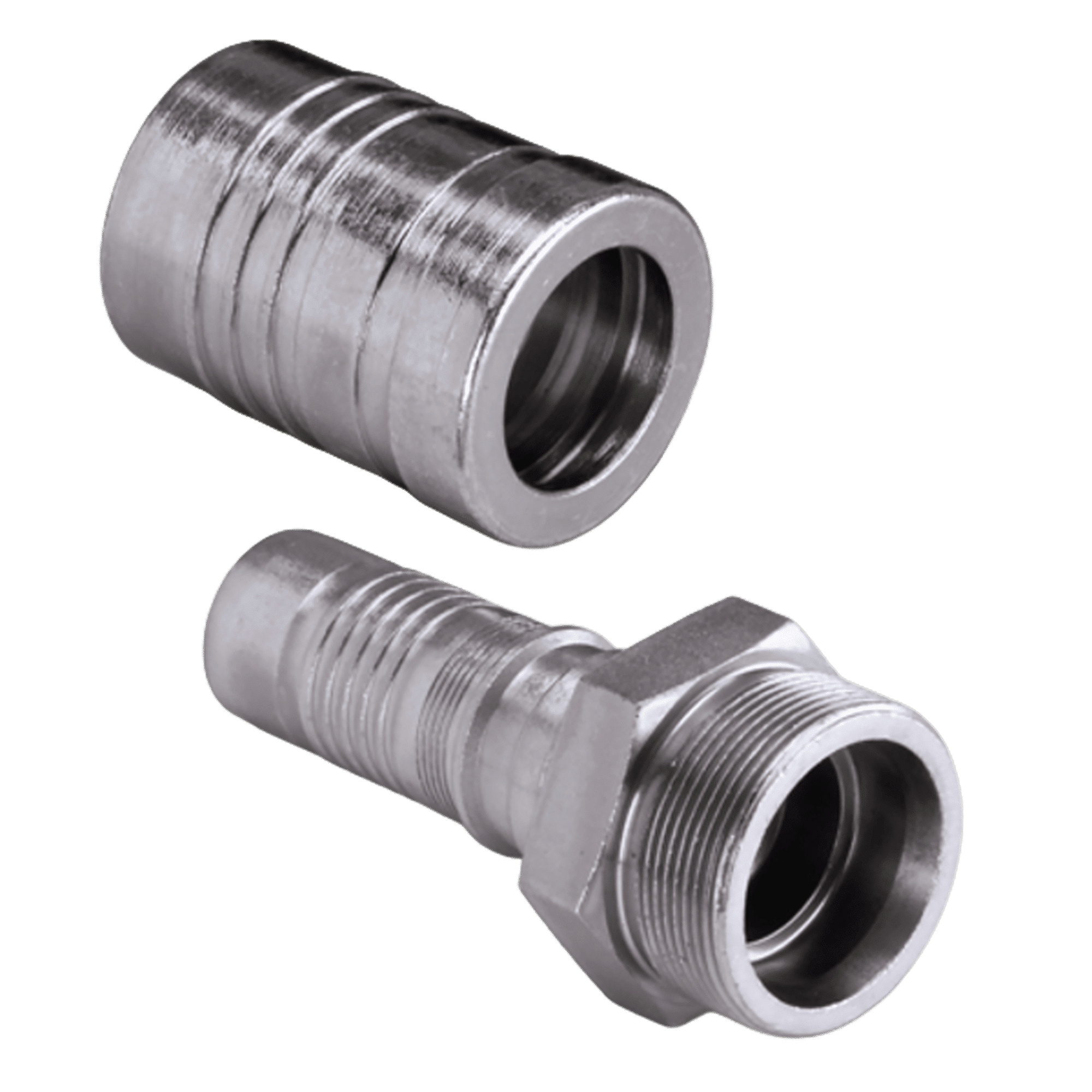

Swage fitting, CES. For swage fitting for MH800 hose. Metric cylindrical outer thread. 24° inner cone. To ISO 8434-1. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 9 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | Series | G1 | For pipe Ø | L1 mm | S1 |
|---|---|---|---|---|---|---|---|---|
| 10 | 6 | 3/8” | S | M 20 x 1.5 | 12 mm | 67.8 | 22 | |
| 10 | 6 | 3/8” | S | M 22 x 1.5 | 14 mm | 69.7 | 22 | |
| 12 | 8 | 1/2” | S | M 24 x 1.5 | 16 mm | 75.0 | 24 | |
| 12 | 8 | 1/2” | S | M 30 x 2 | 20 mm | - | - | |
| 16 | 10 | 5/8” | S | M 30 x 2 | 20 mm | 90.5 | 30 | |
| 19 | 12 | 3/4” | S | M 30 x 2 | 20 mm | 97.0 | 32 | |
| 19 | 12 | 3/4” | S | M 36 x 2 | 25 mm | 99.0 | 41 | |
| 25 | 16 | 1” | S | M 42 x 2 | 30 mm | 117.0 | 46 | |
| 31 | 20 | 1.1/4” | S | M 52 x 2 | 38 mm | 123.0 | 55 |
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
