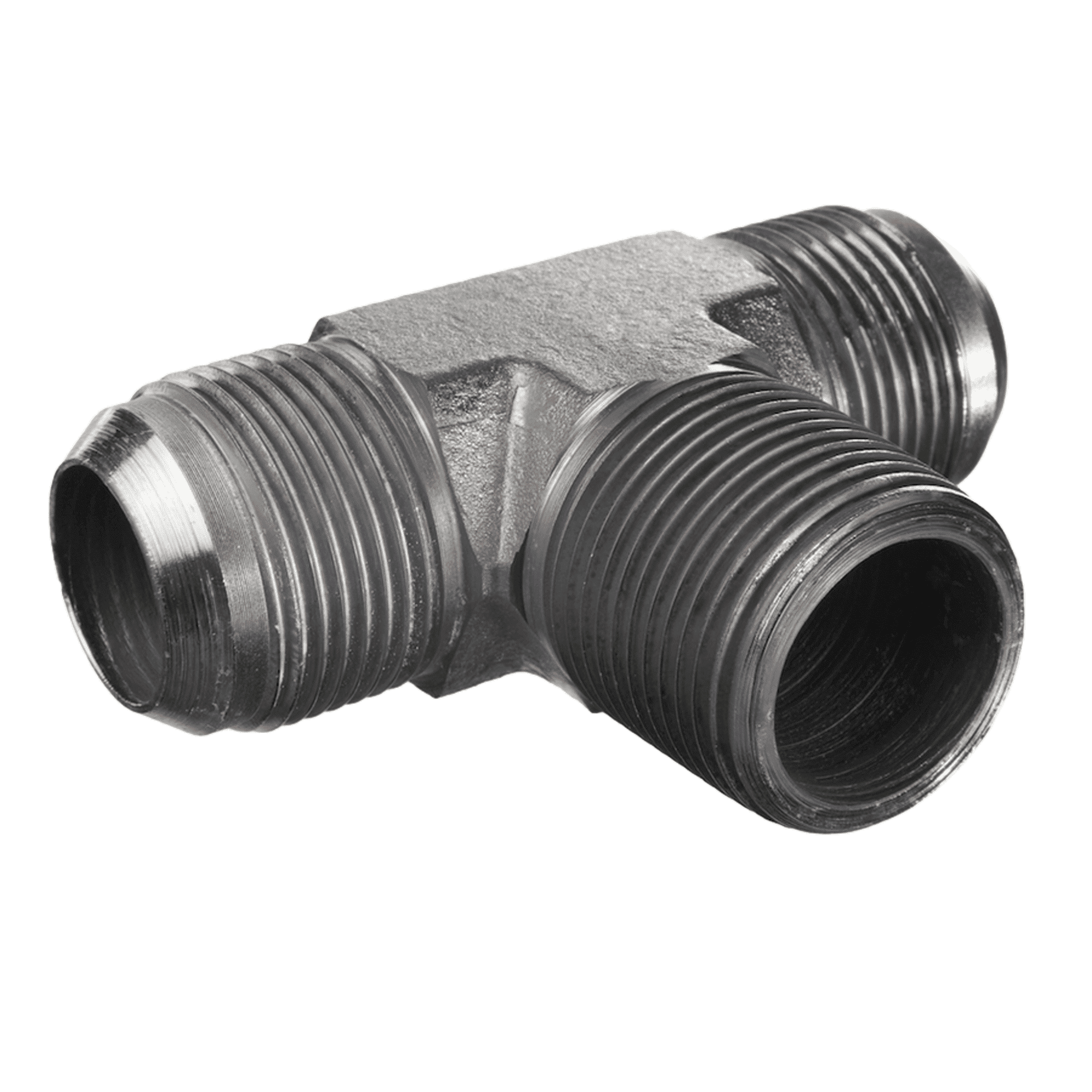

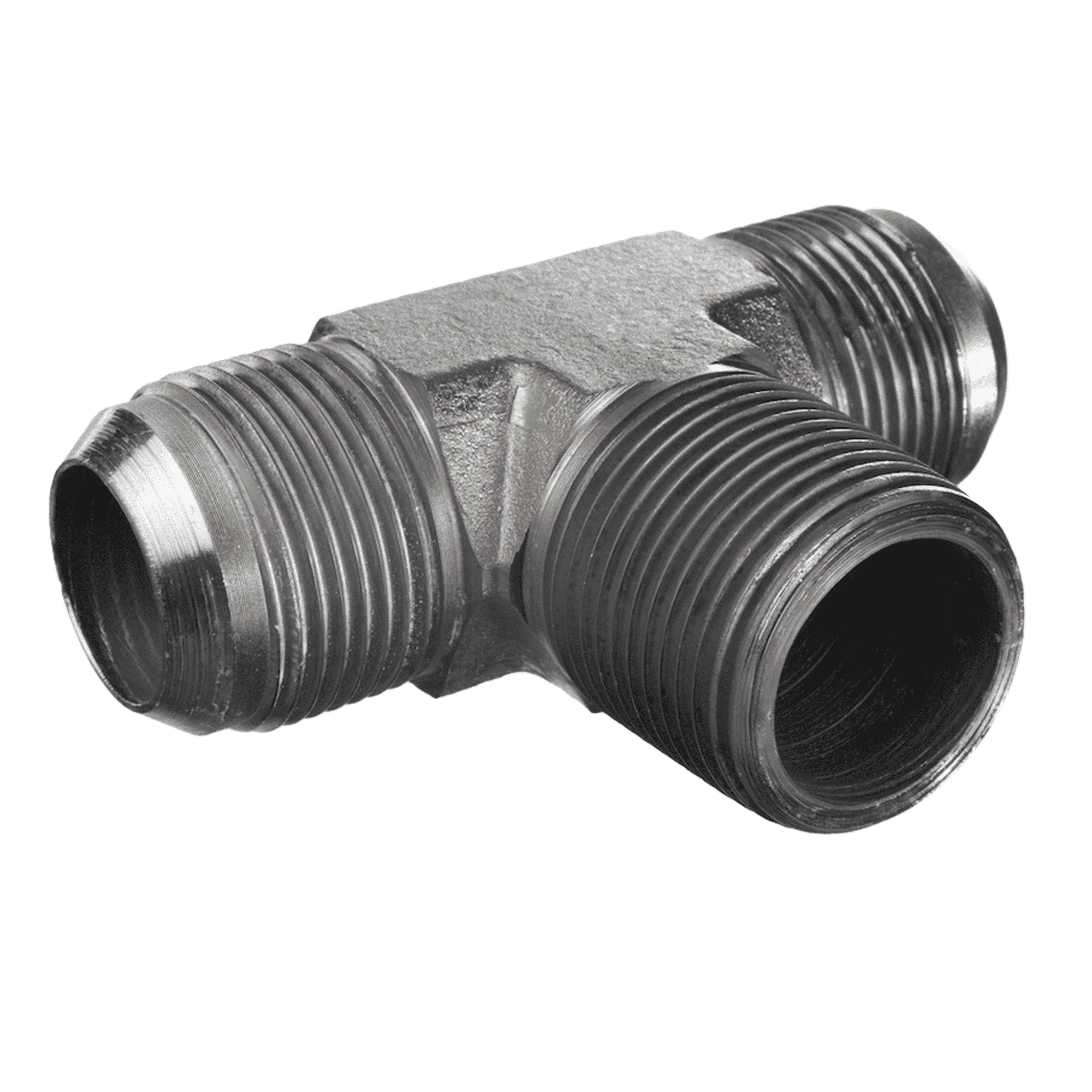

Screw-in socket, T shaped. Screw-in sockets. NPT external threads to uN / UNF external threads. Thread seal one end, 74° outer cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 19 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 + G2 | G3 | SW mm |
|---|---|---|---|
| 7/16”–20 UNF | 1/8”–27 NPT | 11 | |
| 7/16”–20 UNF | 1/4”–18 NPT | 14 | |
| 1/2”–20 UNF | 1/8”–27 NPT | 14 | |
| 1/2”–20 UNF | 1/4”–18 NPT | 14 | |
| 9/16”–18 UNF | 1/8”–27 NPT | 14 | |
| 9/16”–18 UNF | 1/4”–18 NPT | 14 | |
| 9/16”–18 UNF | 3/8”–18 NPT | 19 | |
| 9/16”–18 UNF | 1/2”–14 NPT | 22 | |
| 3/4”–16 UNF | 1/4”–18 NPT | 19 | |
| 3/4”–16 UNF | 3/8”–18 NPT | 19 | |
| 3/4”–16 UNF | 1/2”–14 NPT | 22 | |
| 7/8”–14 UNF | 3/8”–18 NPT | 22 | |
| 7/8”–14 UNF | 1/2”–14 NPT | 22 | |
| 1.1/16”–12 UN | 1/2”–14 NPT | 27 | |
| 1.1/16”–12 UN | 3/4”–14 NPT | 27 | |
| 1.5/16”–12 UN | 3/4”–14 NPT | 33 | |
| 1.5/16”–12 UN | 1”–11.5 NPT | 33 | |
| 1.5/8”–12 UN | 1.1/4”–11.5 NPT | 41 | |
| 1.7/8”–12 UN | 1.1/2”–11.5 NPT | 48 |
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
