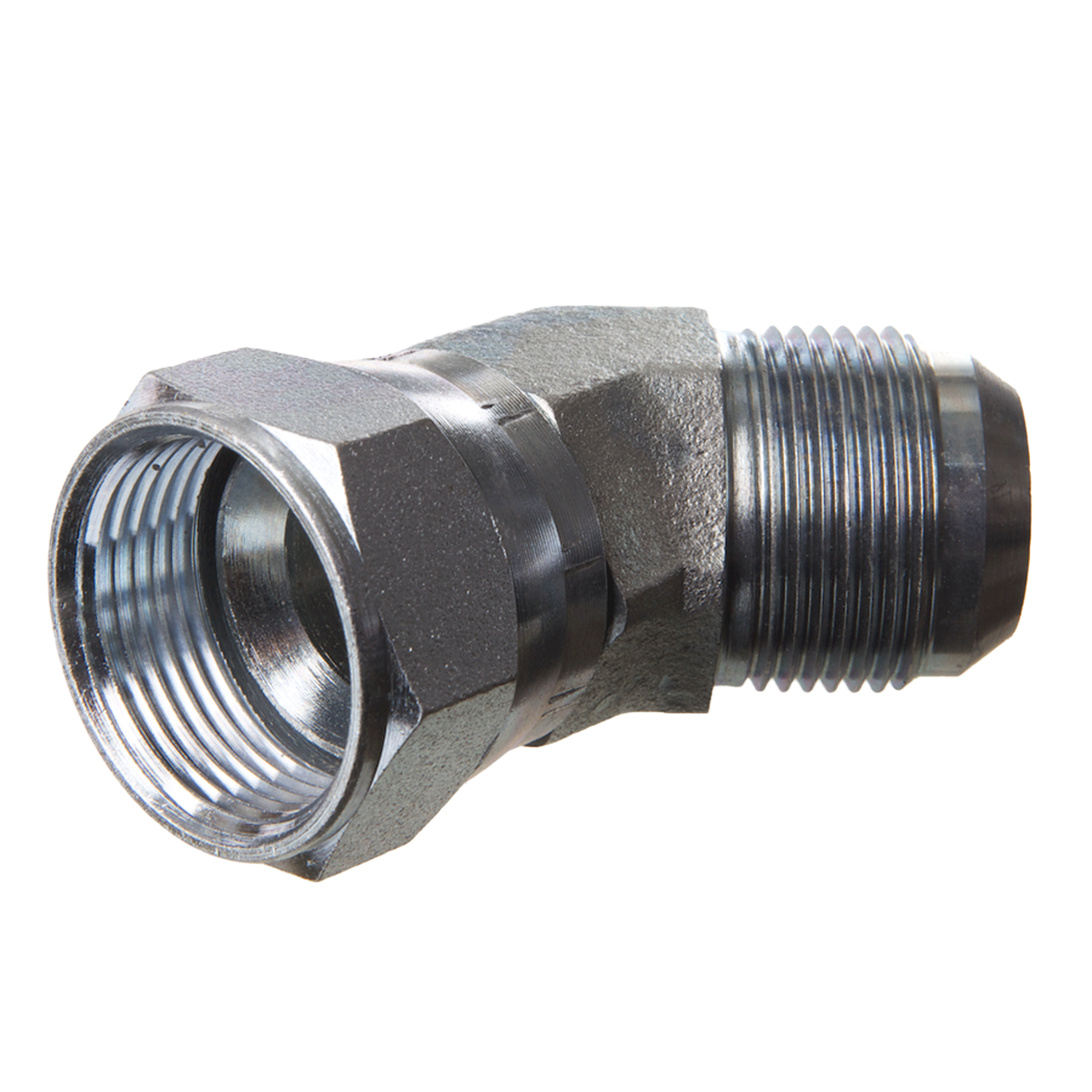

Screw-on socket, angle 45°. Screw-in sockets. Straight. NPT external threads to uN / UNF external threads. Thread seal one end, 74° outer cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 11 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | Working pressure bar | G1 | G2 | SW mm | S1 |
|---|---|---|---|---|---|
| PN 350 | 7/16”-20 UNF | 7/16”-20 UNF | 12 | 14 | |
| PN 350 | 1/2”-20 UNF | 1/2”-20 UNF | 14 | 16 | |
| PN 250 | 9/16”-18 UNF | 9/16”-18 UNF | 14 | 19 | |
| PN 250 | 3/4”-16 UNF | 3/4”-16 UNF | 19 | 22 | |
| PN 200 | 7/8”-14 UNF | 7/8”-14 UNF | 22 | 27 | |
| PN 200 | 1.1/16”-12 UN | 1.1/16”-12 UN | 27 | 32 | |
| PN 160 | 1.3/16”-12 UN | 1.3/16”-12 UN | 32 | 36 | |
| PN 160 | 1.5/16”-12 UN | 1.5/16”-12 UN | 33 | 41 | |
| PN 125 | 1.5/8”-12 UN | 1.5/8”-12 UN | 41 | 50 | |
| PN 100 | 1.7/8”-12 UN | 1.7/8”-12 UN | 48 | 60 | |
| PN 80 | 2.1/2”-12 UN | 2.1/2”-12 UN | 65 | 75 |
SW, S1, S2 = Width across flats
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
