Hydraulic Adaptors

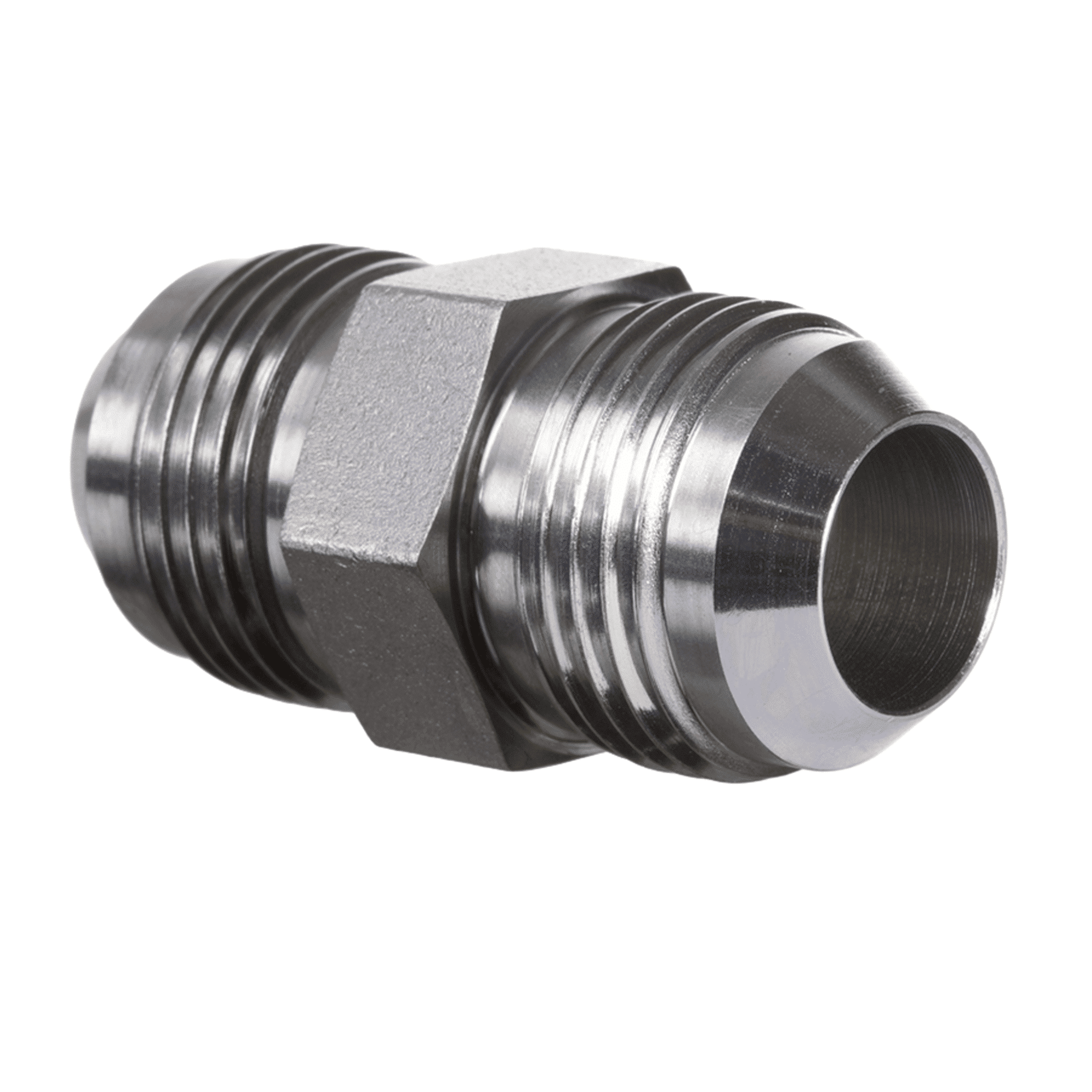

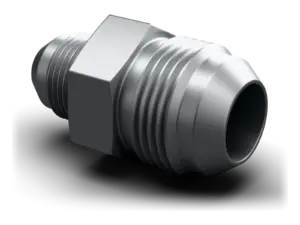

JIC Male / Male

JIC Male / Male

Connection sockets. Connectors. Straight. UN / UNF inner thread to uN / UNF external threads. 74° inner cone one end, 74° outer cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 35 sizes, each with its own part number.

35sizes
JIM-JIM-0303-MC to JIM-JIM-3232-MC
Request a priceData sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

SurfaceMotusCoat™
MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

SW
Width across flats
IdentificationG1G2SW mm
3/8”-24 UNF3/8”-24 UNF12
3/8”-24 UNF7/16”-20 UNF12
7/16”-20 UNF7/16”-20 UNF12
7/16”-20 UNF1/2”-20 UNF14
7/16”-20 UNF9/16”-18 UNF17
7/16”-20 UNF3/4”-16 UNF19
7/16”-20 UNF7/8”-14 UNF24
1/2”-20 UNF1/2”-20 UNF14
1/2”-20 UNF9/16”-18 UNF17
1/2”-20 UNF3/4”-16 UNF19
1/2”-20 UNF7/8”-14 UNF24
9/16”-18 UNF9/16”-18 UNF17
9/16”-18 UNF3/4”-16 UNF19
9/16”-18 UNF7/8”-14 UNF24
9/16”-18 UNF1.1/16”-12 UN27
3/4”-16 UNF3/4”-16 UNF19
3/4”-16 UNF7/8”-14 UNF24
3/4”-16 UNF1.1/16”-12 UN27
3/4”-16 UNF1.5/16”-12 UN36
7/8”-14 UNF7/8”-14 UNF24
7/8”-14 UNF1.1/16”-12 UN27
7/8”-14 UNF1.5/16”-12 UN36
1.1/16”-12 UN1.1/16”-12 UN27
1.1/16”-12 UN1.3/16”-12 UN32
IdentificationG1G2SW mm
1.1/16”-12 UN1.5/16”-12 UN36
1.1/16”-12 UN1.5/8”-12 UN46
1.3/16”-12 UN1.3/16”-12 UN32
1.3/16”-12 UN1.5/16”-12 UN36
1.5/16”-12 UN1.5/16”-12 UN36
1.5/16”-12 UN1.5/8”-12 UN46
1.5/16”-12 UN1.7/8”-12 UN50
1.5/8”-12 UN1.5/8”-12 UN46
1.5/8”-12 UN1.7/8”-12 UN50
1.7/8”-12 UN1.7/8”-12 UN50
2.1/2”-12 UN2.1/2”-12 UN65

Product Version: Stainless Steel (SS)

The details

Connection 1
UN / UNF inner thread
Sealing form 1
74° inner cone
Connection 2
UN / UNF external threads
Sealing form 2
74° outer cone
Design
Connectors
Construction
Straight
Material
Steel
Surface
MotusCoat™

Downloads

JIC Male / Male data sheetPDF, matches the catalogueDownload
Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

Competitor coating after 1000-hour salt spray testing
A fitting with a competitor coating, covered in red rust
A fitting with MotusCoat, with no red rust
MotusCoat™After a 1000-hour salt spray test according to DIN EN ISO 9227
