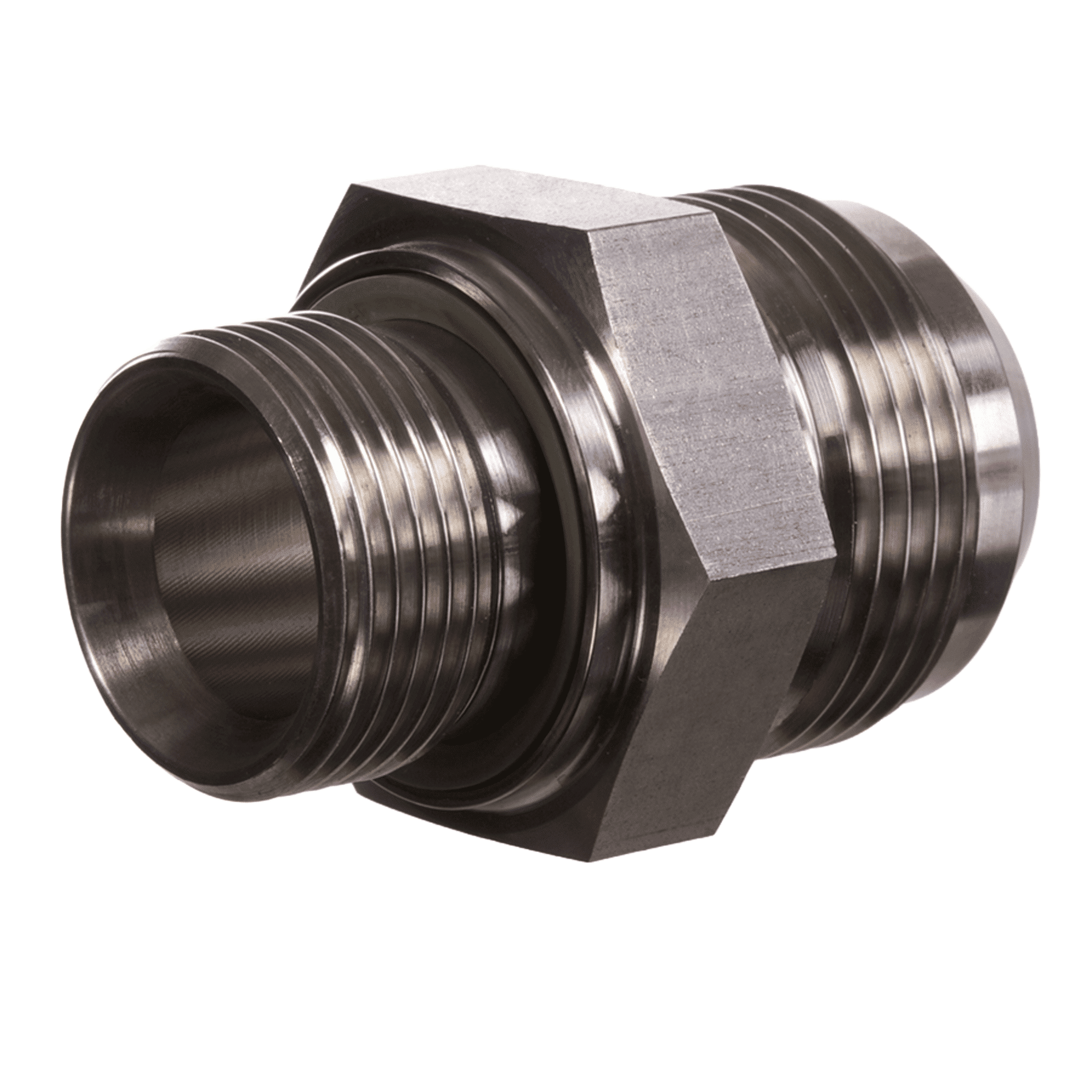

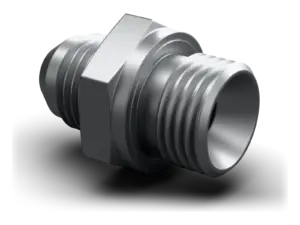

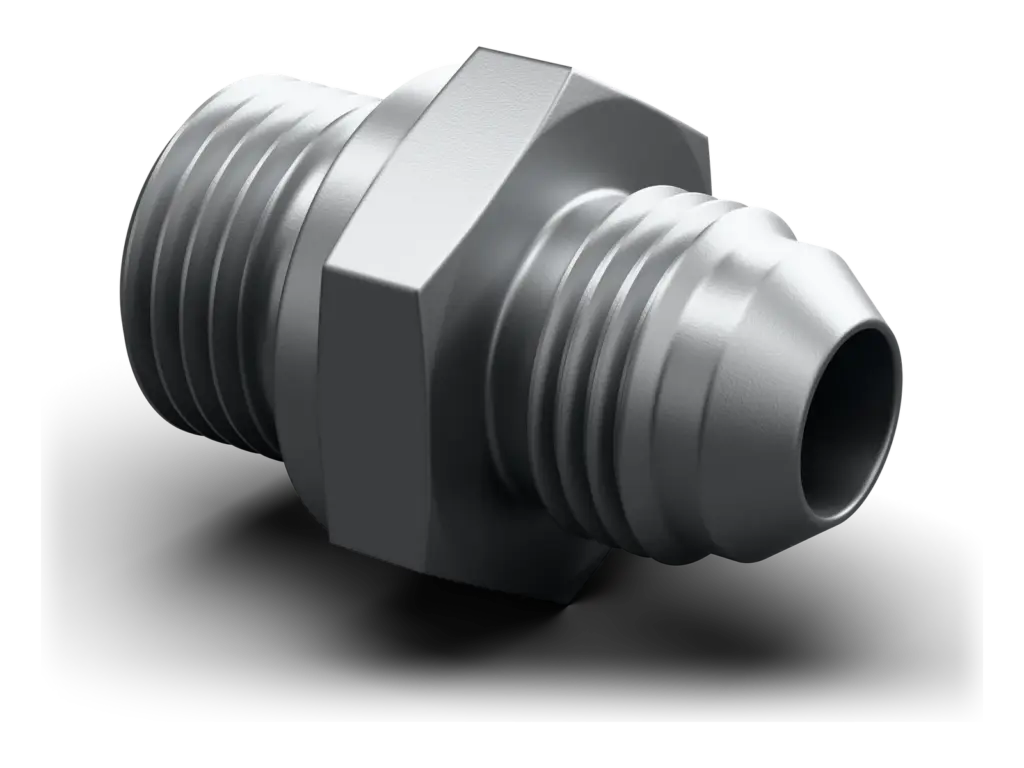

Screw-in sockets. Straight. BSP external thread, cylindrical to uN / UNF external threads. Shape E one end, 74° outer cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 31 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | G2 | SW mm |
|---|---|---|---|
| G 1/8”–28 | 7/16”–20 UNF | 14 | |
| G 1/8”–28 | 1/2”–20 UNF | 14 | |
| G 1/8”–28 | 9/16”–18 UNF | 19 | |
| G 1/4”–19 | 7/16”–20 UNF | 19 | |
| G 1/4”–19 | 1/2”–20 UNF | 19 | |
| G 1/4”–19 | 9/16”–18 UNF | 19 | |
| G 1/4”–19 | 3/4”–16 UNF | 19 | |
| G 3/8”–19 | 7/16”–20 UNF | 22 | |
| G 3/8”–19 | 1/2”–20 UNF | 22 | |
| G 3/8”–19 | 9/16”–18 UNF | 22 | |
| G 3/8”–19 | 3/4”–16 UNF | 22 | |
| G 3/8”–19 | 7/8”–14 UNF | 24 | |
| G 3/8”–19 | 1.1/16”–12 UN | 27 | |
| G 1/2”–14 | 7/16”–20 UNF | 27 | |
| G 1/2”–14 | 9/16”–18 UNF | 27 | |
| G 1/2”–14 | 3/4”–16 UNF | 27 | |
| G 1/2”–14 | 7/8”–14 UNF | 27 | |
| G 1/2”–14 | 1.1/16”–12 UN | 27 | |
| G 3/4”–14 | 3/4”–16 UNF | 32 | |
| G 3/4”–14 | 7/8”–14 UNF | 32 | |
| G 3/4”–14 | 1.1/16”–12 UN | 32 | |
| G 3/4”–14 | 1.5/16”–12 UN | 36 |
| Identification | G1 | G2 | SW mm |
|---|---|---|---|
| G 1”–11 | 1.1/16”–12 UN | 41 | |
| G 1”–11 | 1.5/16”–12 UN | 41 | |
| G 1”–11 | 1.5/8”–12 UN | 46 | |
| G 1”–11 | 1.7/8”–12 UN | 50 | |
| G 1.1/4”–11 | 1.5/16”–12 UN | 50 | |
| G 1.1/4”–11 | 1.5/8”–12 UN | 50 | |
| G 1.1/4”–11 | 1.7/8”–12 UN | 50 | |
| G 1.1/2”–11 | 1.5/8”–12 UN | 55 | |
| G 1.1/2”–11 | 1.7/8”–12 UN | 55 |
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
