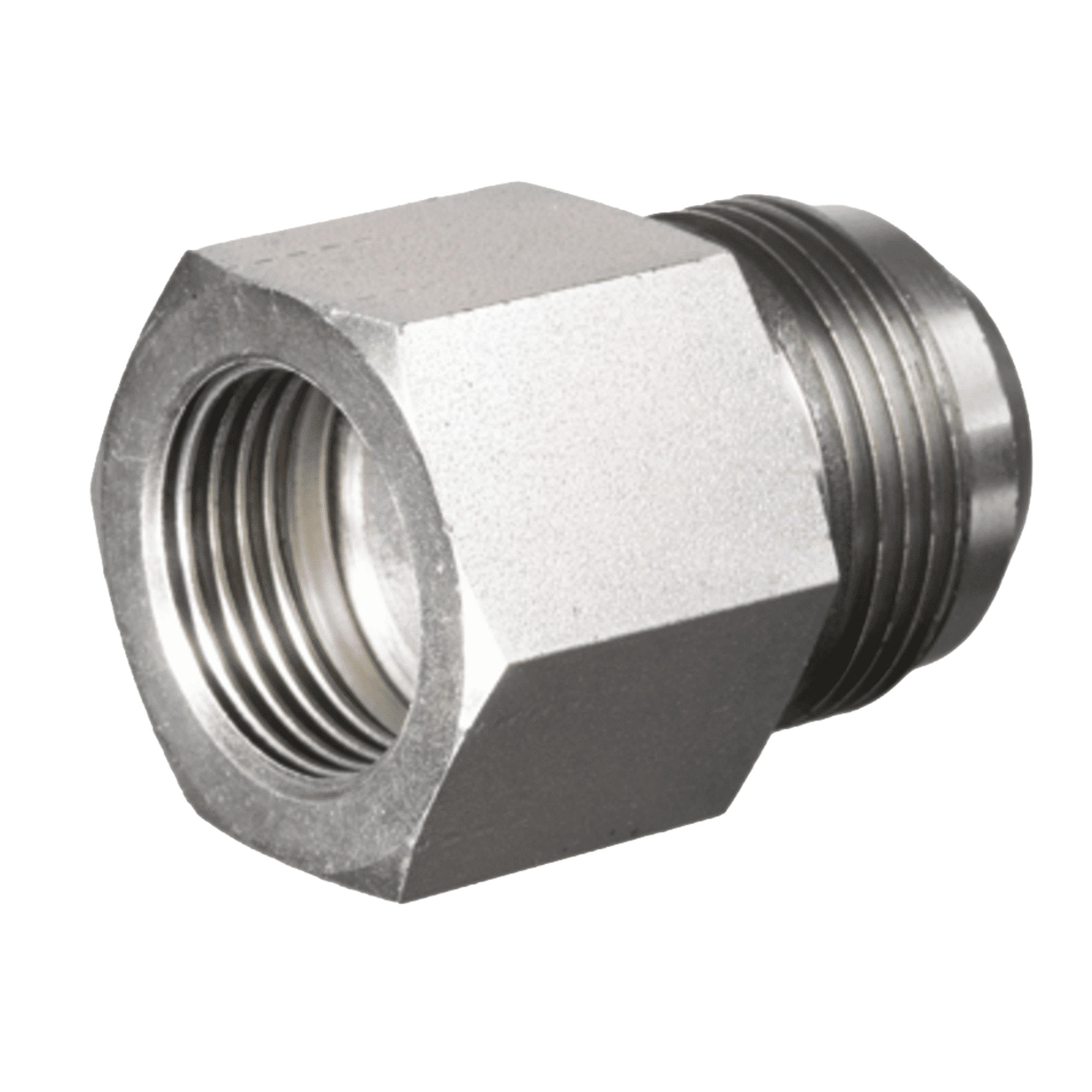

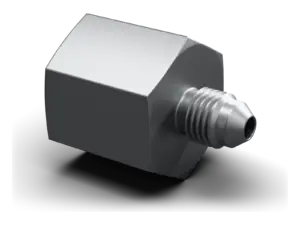

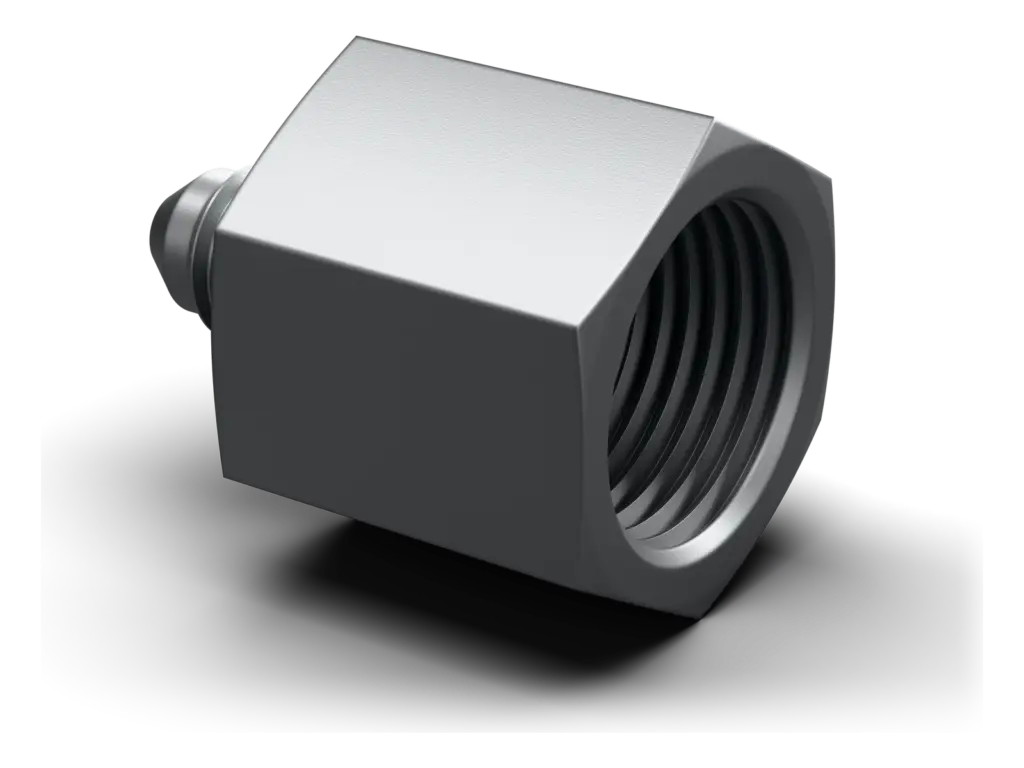

Connectors. Straight. UN / UNF inner thread to uN / UNF external threads. 74° inner cone one end, 74° outer cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 27 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | G2 | SW mm |
|---|---|---|---|
| 7/16”-20 UNF | 9/16”-18 UNF | 17 | |
| 7/16”-20 UNF | 3/4”-16 UNF | 22 | |
| 7/16”-20 UNF | 7/8”-14 UNF | 24 | |
| 1/2”-20 UNF | 7/16”-20 UNF | 17 | |
| 1/2”-20 UNF | 9/16”-18 UNF | 17 | |
| 1/2”-20 UNF | 3/4”-16 UNF | 17 | |
| 9/16”-18 UNF | 7/16”-20 UNF | 19 | |
| 9/16”-18 UNF | 1/2”-20 UNF | 19 | |
| 9/16”-18 UNF | 3/4”-16 UNF | 19 | |
| 3/4”-16 UNF | 7/16”-20 UNF | 22 | |
| 3/4”-16 UNF | 9/16”-18 UNF | 22 | |
| 3/4”-16 UNF | 7/8”-14 UNF | 24 | |
| 3/4”-16 UNF | 1.1/16”-12 UN | 22 | |
| 7/8”-14 UNF | 7/16”-20 UNF | 27 | |
| 7/8”-14 UNF | 9/16”-18 UNF | 27 | |
| 7/8”-14 UNF | 3/4”-16 UNF | 27 | |
| 1.1/16”-12 UN | 7/16”-20 UNF | 32 | |
| 1.1/16”-12 UN | 9/16”-18 UNF | 32 | |
| 1.1/16”-12 UN | 3/4”-16 UNF | 32 | |
| 1.1/16”-12 UN | 7/8”-14 UNF | 32 | |
| 1.5/16”-12 UN | 3/4”-16 UNF | 41 | |
| 1.5/16”-12 UN | 7/8”-14 UNF | 41 | |
| 1.5/16”-12 UN | 1.1/16”-12 UN | 41 | |
| 1.5/8”-12 UN | 1.1/16”-12 UN | 50 | |
| 1.5/8”-12 UN | 1.5/16”-12 UN | 50 | |
| 1.7/8”-12 UN | 1.5/8”-12 UN | 60 | |
| 2.1/2”-12 UN | 1.7/8”-12 UN | 75 |
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
