Pipe clamp, double pipes. NPT external threads. To NPT internal thread. Temperature range Thread seal to Screw-in sockets. Angle 90°. 22 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | Clamp size | External pipe Ø d2 mm | External pipe Ø d2 inch | a mm | B mm | H mm | L mm | S1 mm |
|---|---|---|---|---|---|---|---|---|
| 1 | 6.0 | - | 20 | 30 | 27 | 36 | 1.0 | |
| 1 | 6.4 | 1/4” | 20 | 30 | 27 | 36 | 1.0 | |
| 1 | 8.0 | 5/16” | 20 | 30 | 27 | 36 | 1.0 | |
| 1 | 9.5 | 3/8” | 20 | 30 | 27 | 36 | 1.0 | |
| 1 | 10.0 | - | 20 | 30 | 27 | 36 | 1.0 | |
| 1 | 12.0 | - | 20 | 30 | 27 | 36 | 1.0 | |
| 2 | 12.7 | 1/2” | 29 | 30 | 26 | 53 | 1.2 | |
| 2 | 13.5 | - | 29 | 30 | 26 | 53 | 1.2 | |
| 2 | 14.0 | - | 29 | 30 | 26 | 53 | 1.2 | |
| 2 | 15.0 | - | 29 | 30 | 26 | 53 | 1.2 | |
| 2 | 16.0 | 5/8” | 29 | 30 | 26 | 53 | 1.2 | |
| 2 | 17.2 | - | 29 | 30 | 26 | 53 | 1.2 | |
| 2 | 18.0 | - | 29 | 30 | 26 | 53 | 1.2 | |
| 3 | 19.0 | 3/4” | 36 | 30 | 37 | 67 | 1.6 | |
| 3 | 20.0 | - | 36 | 30 | 37 | 67 | 1.6 | |
| 3 | 21.3 | - | 36 | 30 | 37 | 67 | 1.6 | |
| 3 | 22.0 | - | 36 | 30 | 37 | 67 | 1.6 | |
| 3 | 25.0 | 1" | 36 | 30 | 37 | 67 | 1.6 | |
| 4 | 26.9 | - | 45 | 30 | 42 | 82 | 2.0 | |
| 4 | 28.0 | - | 45 | 30 | 42 | 82 | 2.0 | |
| 4 | 30.0 | - | 45 | 30 | 42 | 82 | 2.0 | |
| 5 | 32.0 | 1.1/4” | 56 | 30 | 54 | 106 | 2.0 |
Note: The use of clamps with a smooth inner surface is recommended for retaining hoses and cables. No pretension is applied when fitting and the block height H is reduced to the gap width S1.

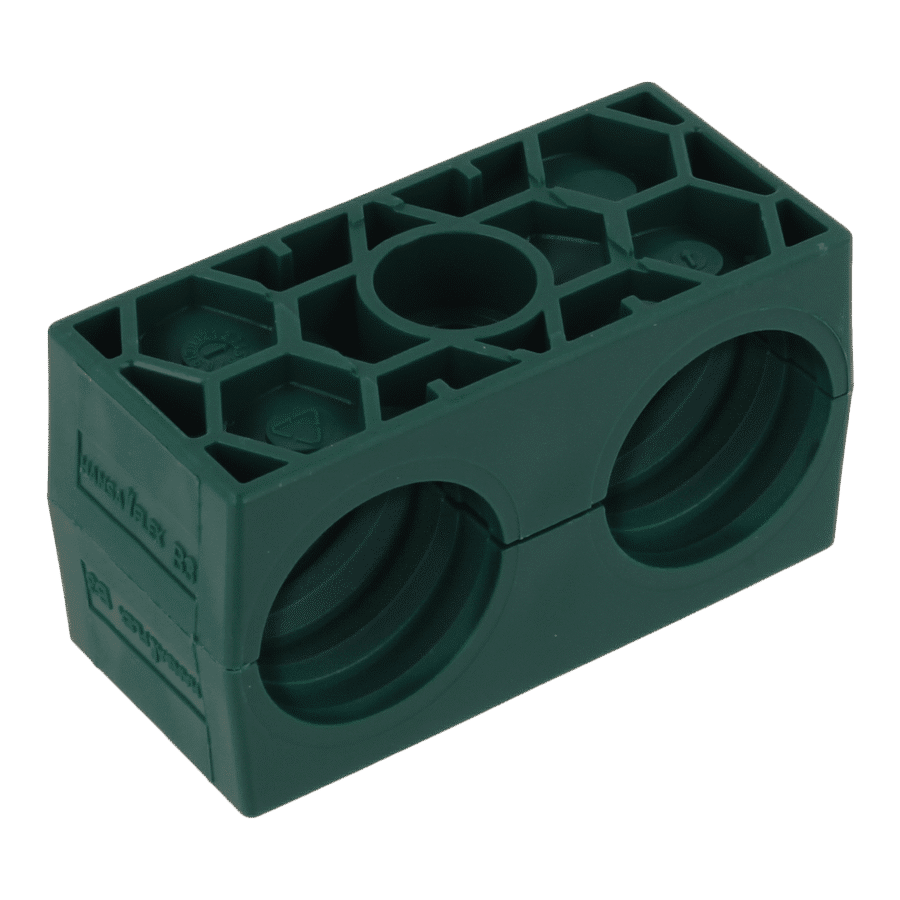

Product Versions: Double Pipe Clamp G - Pipe clamp, double pipes, Polypropylene, Inside of clamp, smooth
SRS 1-5 D PA - Pipe clamp, double pipes, Polyamide 6, Inside of clamp with web
SRS 1-5 D VG - Pipe clamp, double pipes, Solid rubber Shore 64° / 73°, Inside of clamp, smooth
Additional element for following products: B A - Configuration of group B composition; B - Configuration of group B
