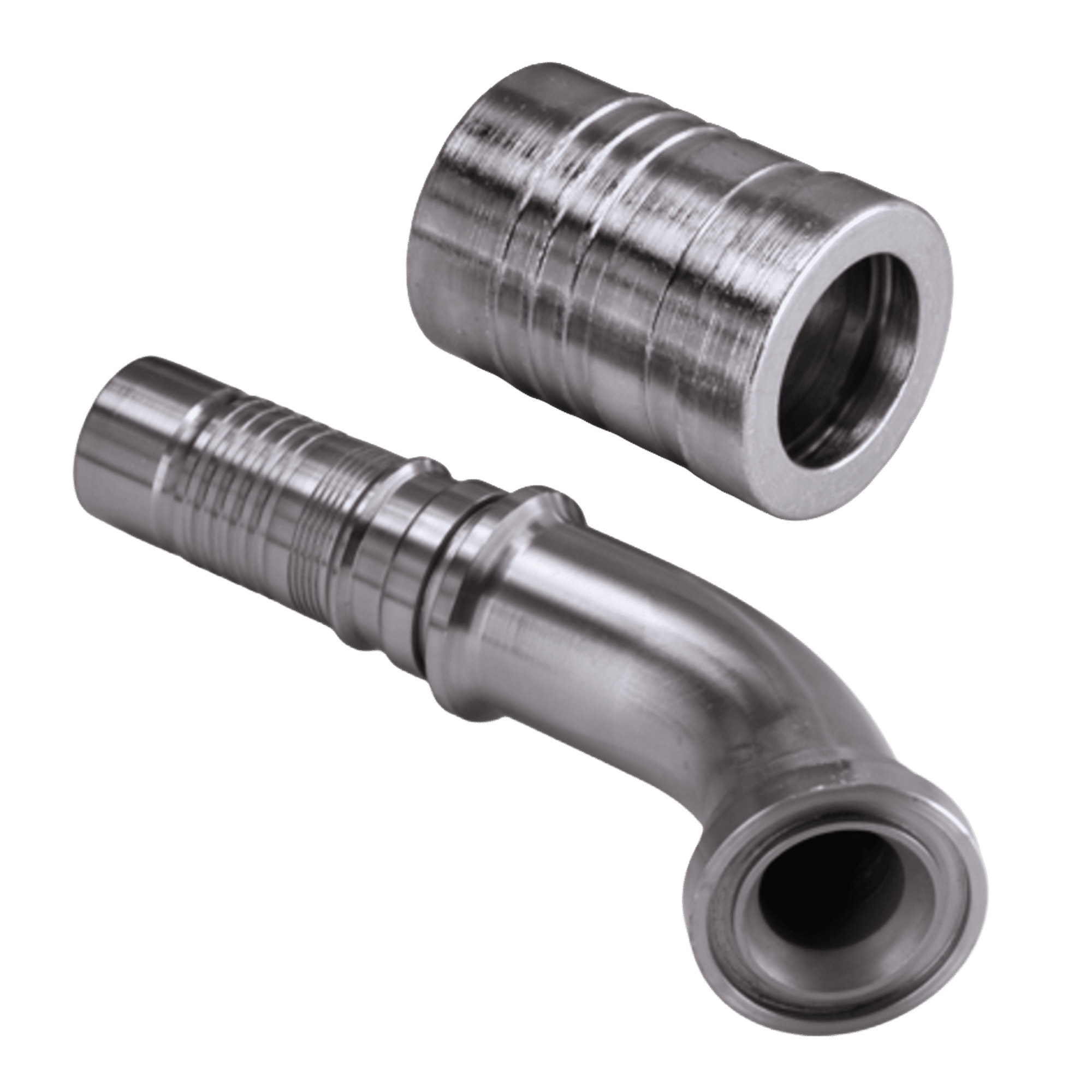

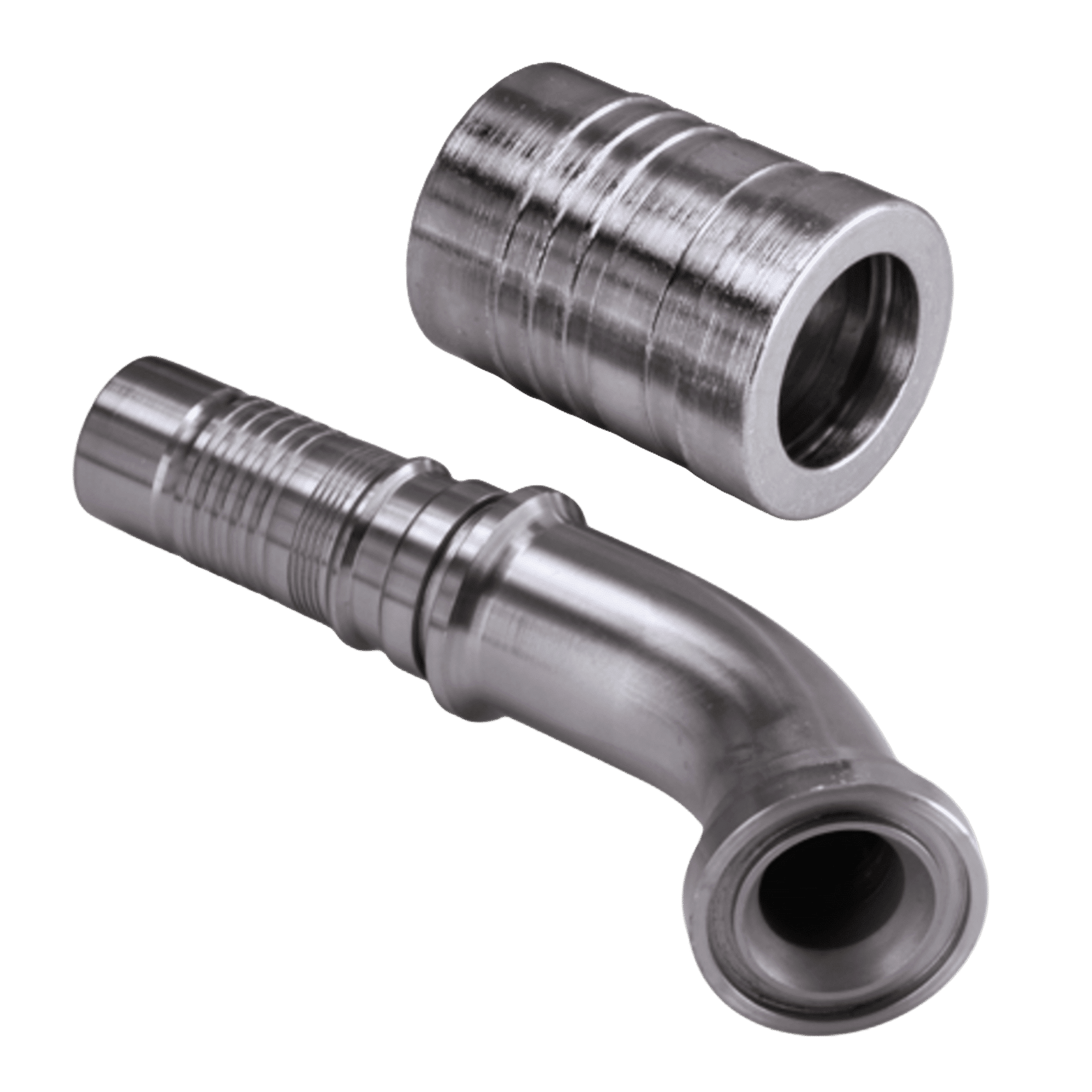

For swage fitting for HD 500 hoses. SAE flange connection 6000 PSI. Flat seal with SF O-ring. To SAE J518, ISO 6162-2. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 11 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | Flange size | D mm | H mm | L1 mm | L2 mm |
|---|---|---|---|---|---|---|---|---|
| 19 | 12 | 3/4” | 3/4” | 41.3 | 8.8 | 135.5 | 30.0 | |
| 19 | 12 | 3/4” | 1” | 47.6 | 9.6 | 139.5 | 34.5 | |
| 25 | 16 | 1” | 1” | 47.6 | 9.6 | 164.0 | 33.5 | |
| 25 | 16 | 1” | 1.1/4” | 54.0 | 10.4 | 169.0 | 38.5 | |
| 31 | 20 | 1.1/4” | 1” | 47.6 | 9.5 | - | - | |
| 31 | 20 | 1.1/4” | 1.1/4” | 54.0 | 10.3 | 191.0 | 41.5 | |
| 31 | 20 | 1.1/4” | 1.1/2” | 63.5 | 12.6 | 197.0 | 47.5 | |
| 38 | 24 | 1.1/2” | 1.1/4” | 54.0 | 10.3 | - | - | |
| 38 | 24 | 1.1/2” | 1.1/2” | 63.5 | 12.6 | 222.5 | 49.0 | |
| 38 | 24 | 1.1/2” | 2” | 79.4 | 12.6 | 236.0 | 61.0 | |
| 51 | 32 | 2” | 2” | 79.4 | 12.6 | 275.0 | 64.5 |
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
