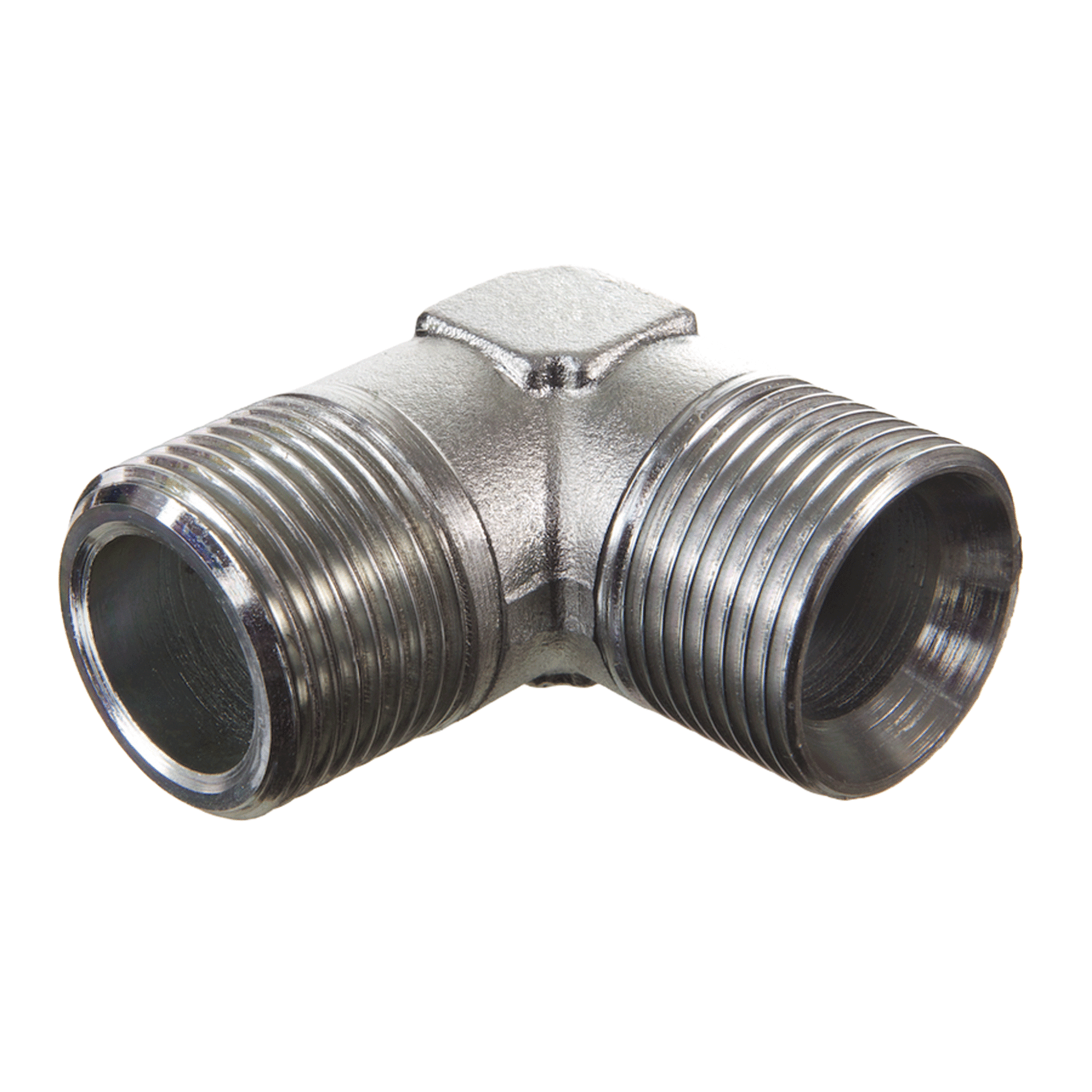

Screw-in socket, angle 90°. Screw-in sockets. BSPT conical external threads to bSP cylindrical external threads. Thread seal one end, 60° inner cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 19 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | G2 | SW mm |
|---|---|---|---|
| R 1/8”K | G 1/8”-28 | 11 | |
| R 1/8”K | G 1/4”-19 | 11 | |
| R 1/4”K | G 1/8”-28 | 14 | |
| R 1/4”K | G 1/4”-19 | 14 | |
| R 1/4”K | G 3/8”-19 | 14 | |
| R 3/8”K | G 1/4”-19 | 14 | |
| R 3/8”K | G 3/8”-19 | 17 | |
| R 3/8”K | G 1/2”-14 | 19 | |
| R 1/2”K | G 3/8”-19 | 19 | |
| R 1/2”K | G 1/2”-14 | 19 | |
| R 1/2”K | G 3/4”-14 | 27 | |
| R 3/4”K | G 1/2”-14 | 27 | |
| R 3/4”K | G 3/4”-14 | 27 | |
| R 3/4”K | G 1”-11 | 33 | |
| R 1”K | G 3/4”-14 | 33 | |
| R 1”K | G 1”-11 | 36 | |
| R 1.1/4”K | G 1.1/4”-11 | 41 | |
| R 1.1/2”K | G 1.1/2”-11 | 48 | |
| R 2”K | G 2”-11 | 64 |
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
