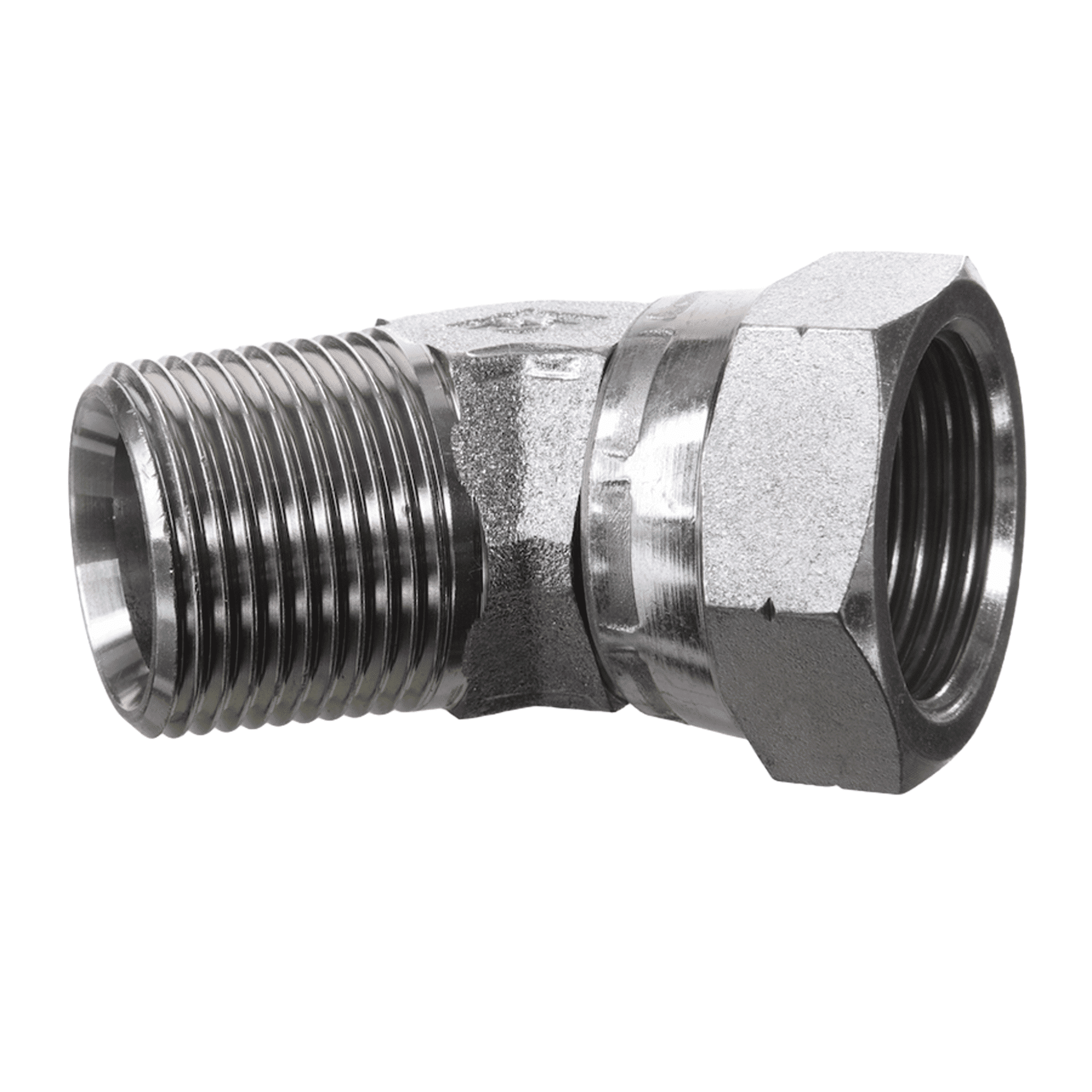

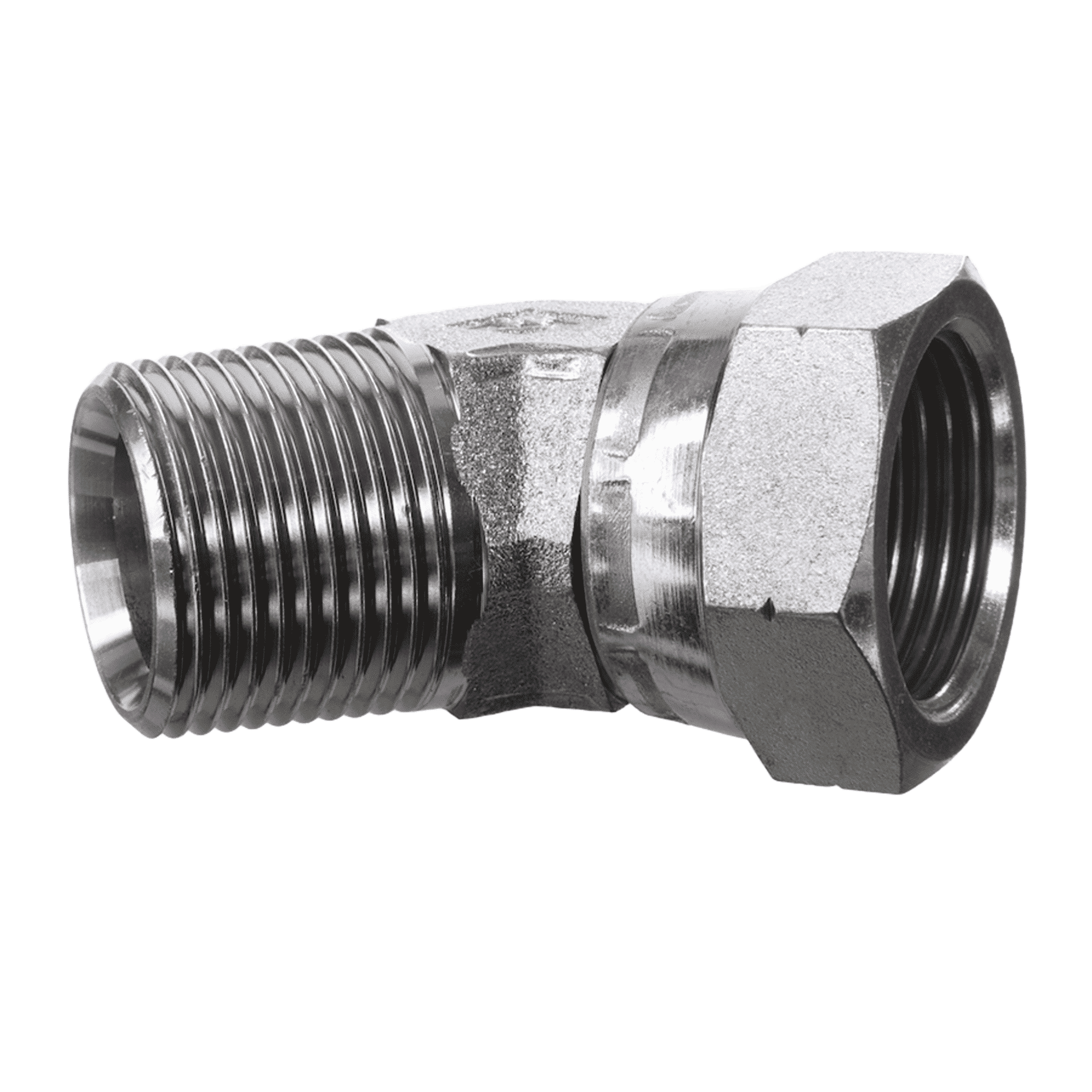

Screw-in socket, angle 45°. Screw-in sockets. BSPT conical external threads to bSP nut thread. Thread seal one end, 60° inner cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 6 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | G2 | SW mm | S1 |
|---|---|---|---|---|
| R 1/4”K | G 1/4”-19 | 19 | 19 | |
| R 3/8”K | G 3/8”-19 | 22 | 22 | |
| R 1/2”K | G 1/2”-14 | 27 | 27 | |
| R 3/4”K | G 3/4”-14 | 32 | 32 | |
| R 1”K | G 1”-11 | 41 | 41 | |
| R 1.1/4”K | G 1.1/4”-11 | 50 | 50 |
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
