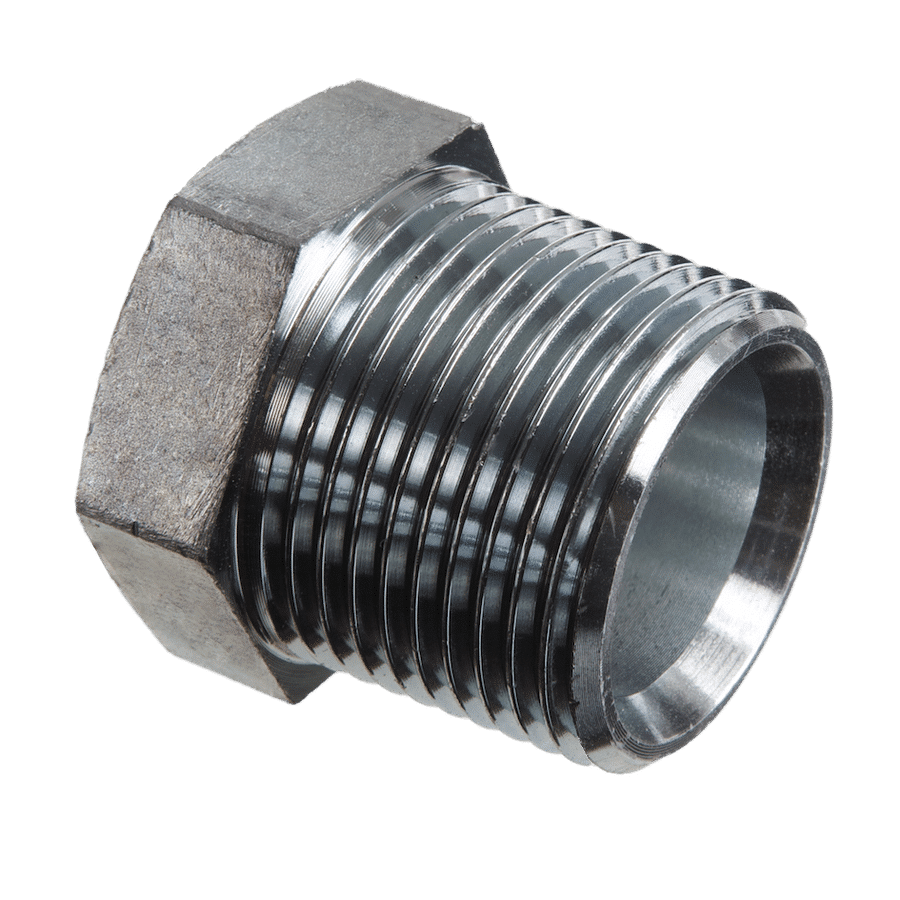

Blanking socket, with hexagon head. Straight. BSPT conical external threads. Thread seal. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 11 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | SW mm |
|---|---|---|
| R 1/8”K | 12 | |
| R 1/4”K | 14 | |
| R 3/8”K | 17 | |
| R 1/2”K | 22 | |
| R 5/8”K | 30 | |
| R 3/4”K | 27 | |
| R 1”K | 36 | |
| R 1.1/4”K | 46 | |
| R 1.1/2”K | 50 | |
| R 2”K | 70 | |
| R 2.1/2”K | 70 |
SW, S1, S2 = Width across flats
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
