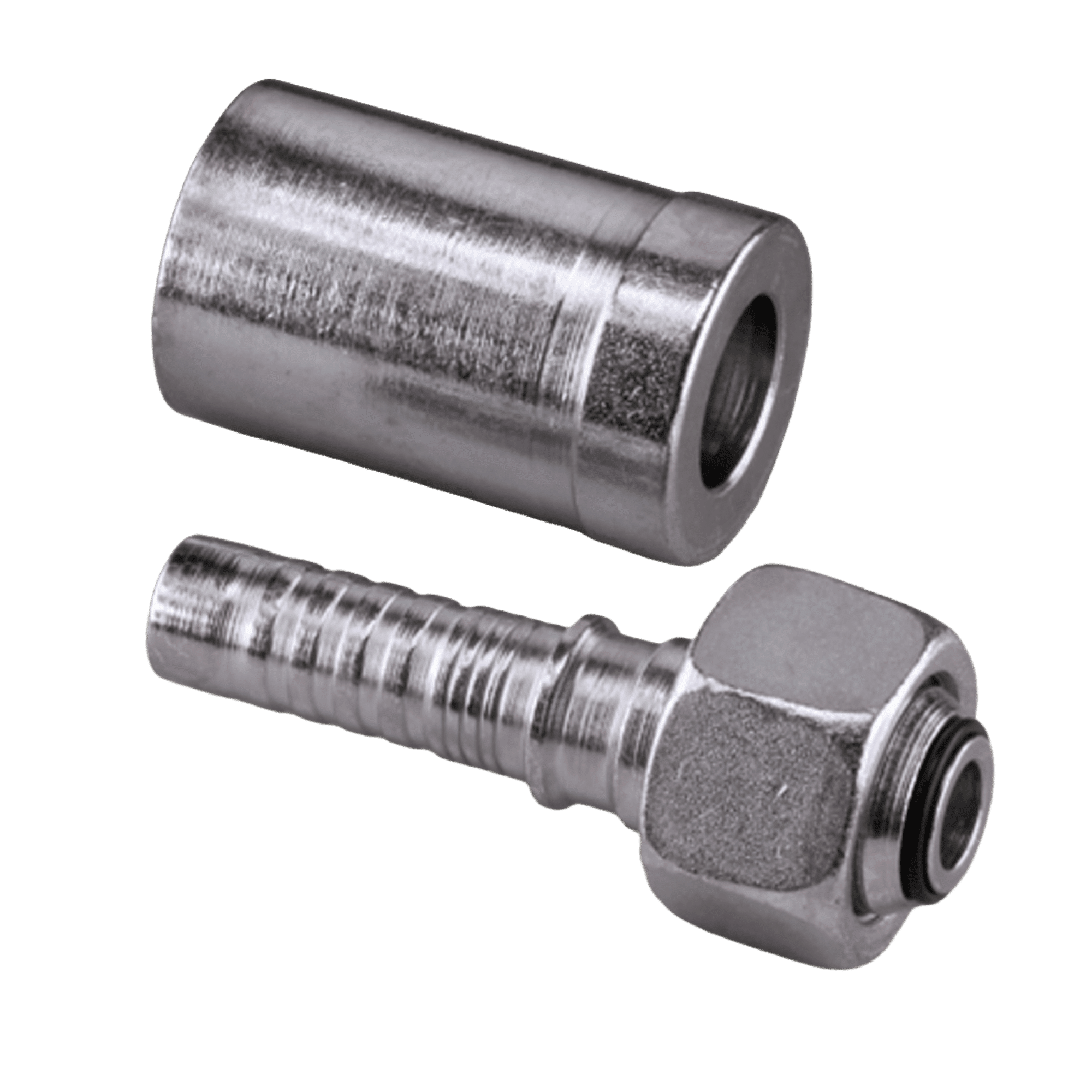

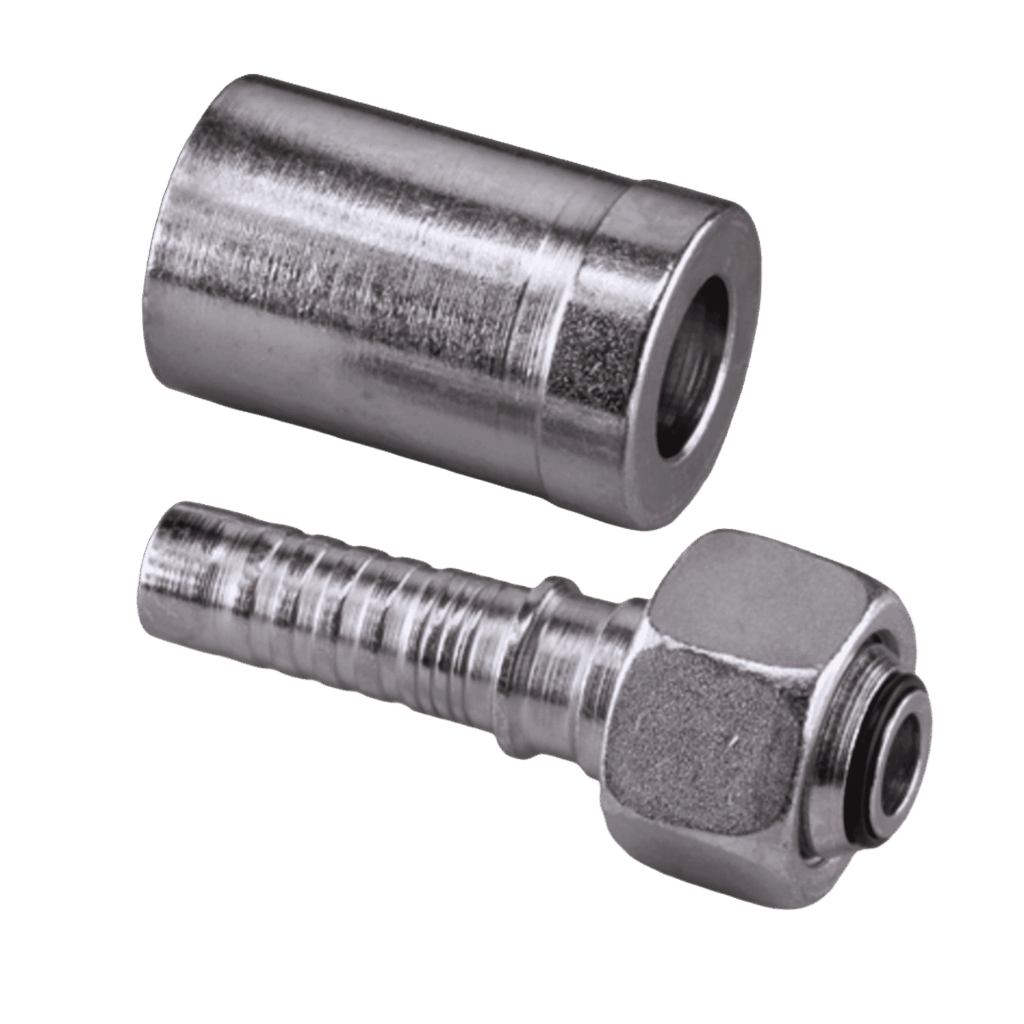

For swage fitting for HD 500 hoses. BSP nut thread. 60° outer cone with O-ring. To ISO 8434-6, BS 5200. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 5 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | G1 | L1 MM | S1 | OR |
|---|---|---|---|---|---|---|---|
| 19 | 12 | 3/4” | G 3/4”–14 | 88.0 | 32 | 17.1 x 1.6 | |
| 25 | 16 | 1” | G 1”–11 | 102.5 | 41 | 22.1 x 1.6 | |
| 31 | 20 | 1.1/4” | G 1.1/4”–11 | 116.0 | 50 | 29.1 x 1.6 | |
| 38 | 24 | 1.1/2” | G 1.1/2”–11 | 133.5 | 55 | 35.1 x 1.6 | |
| 51 | 32 | 2” | G 2”–11 | 147.0 | 70 | 48.1 x 1.6 |
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
