BSP Swivel Female (Breaker Operation)

Name: BSP Swivel Female (Breaker Operation) – Swage fitting, DKOR
Brand: Motus Hydraulics
SKU: BSP-SWIVEL-FEMALE-120

Swage fitting, DKOR

Swage fitting, DKOR. For swage fitting for MH800 hose. BSP nut thread. 60° outer cone with O-ring. To ISO 8434-6, BS 5200. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 2 sizes, each with its own part number.

2sizes
STMI7-BSF-1212-BO-MC to STMI7-BSF-1616-BO-MC

Request a price Data sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

StandardISO 8434-6, BS 5200

SurfaceMotusCoat™

MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

Identification	DN	Size	Inches	G1	L1 mm	S1	OR
STMI7-BSF-1212-BO-MC	19	12	3/4”	G 3/4”–14	96.5	32	17.1 x 1.6
STMI7-BSF-1616-BO-MC	25	16	1”	G 1”–11	103.0	41	22.1 x 1.6

The details

Application: Swage fitting for MH800 hose
Connection 1: BSP nut thread
Sealing form 1: 60° outer cone with O-ring
Short code: DKOR
Standard: ISO 8434-6, BS 5200
Integration: With pull-out protection (interlock)

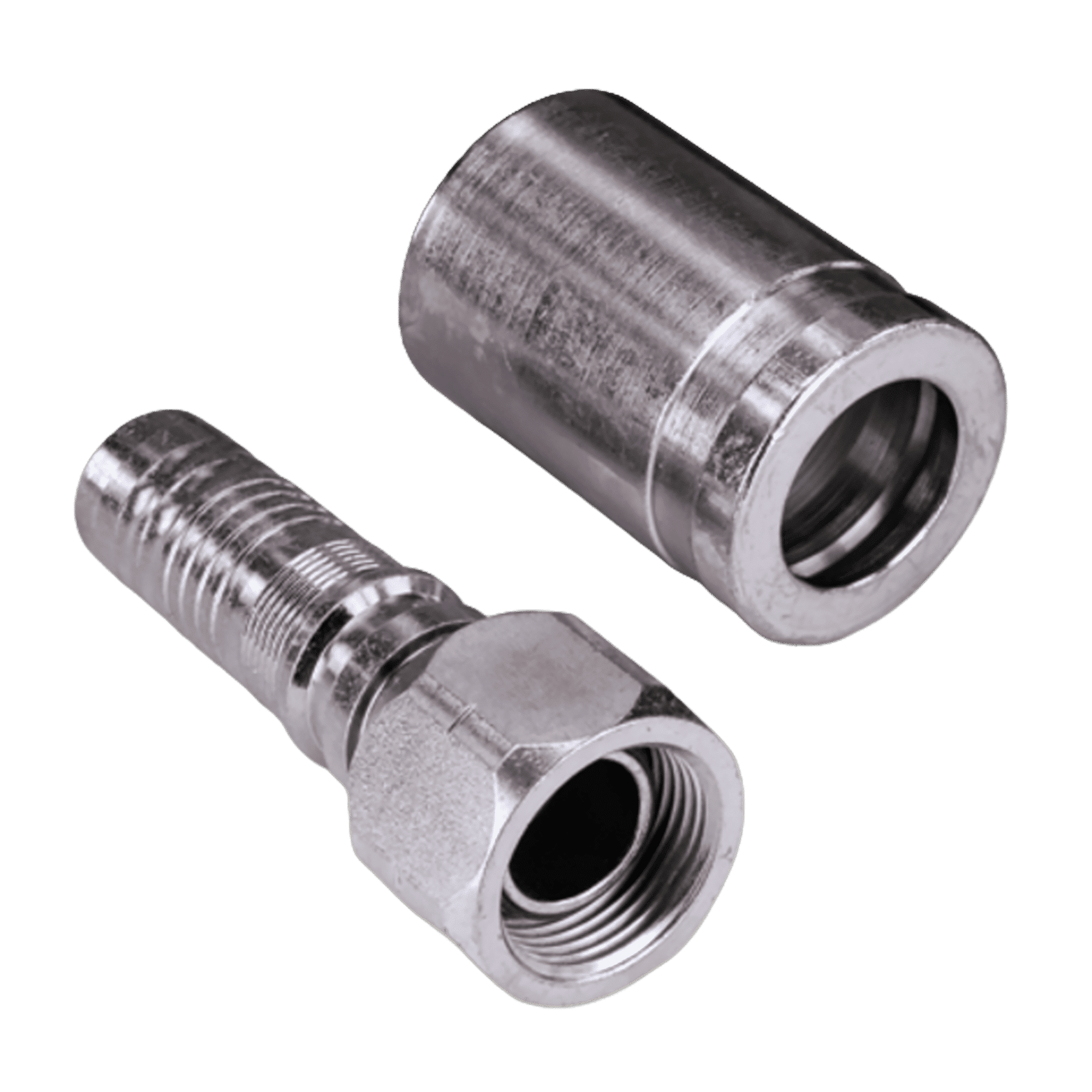

Included in scope of supply: Swage nipple + swage ferrule
Additional feature: For breaker operation
Material: Steel
Surface: MotusCoat™
Description: Reinforced design for extreme loads, e.g. use in hammers.

Downloads

BSP Swivel Female (Breaker Operation) – Swage fitting, DKOR data sheetPDF, matches the catalogueDownload

Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

A fitting with a competitor coating, covered in red rust — Competitor coating after 1000-hour salt spray testing

A fitting with MotusCoat, with no red rust — **MotusCoat™**After a 1000-hour salt spray test according to DIN EN ISO 9227
