$558.00 – $4,695.00 (NZD) excl. GST

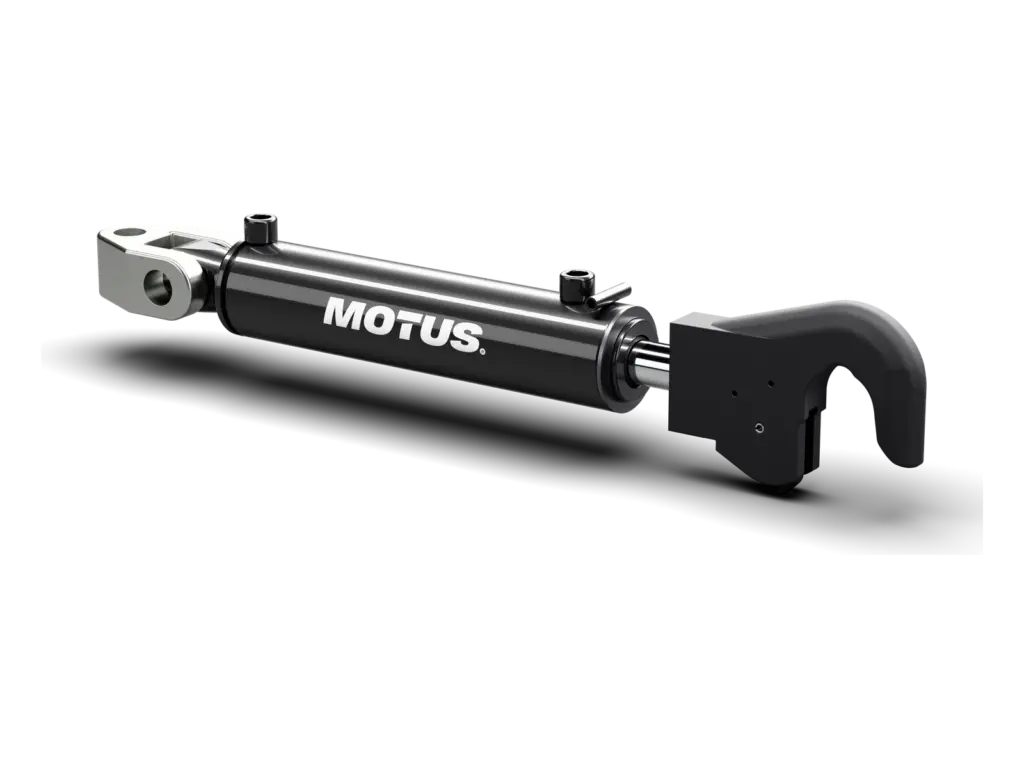

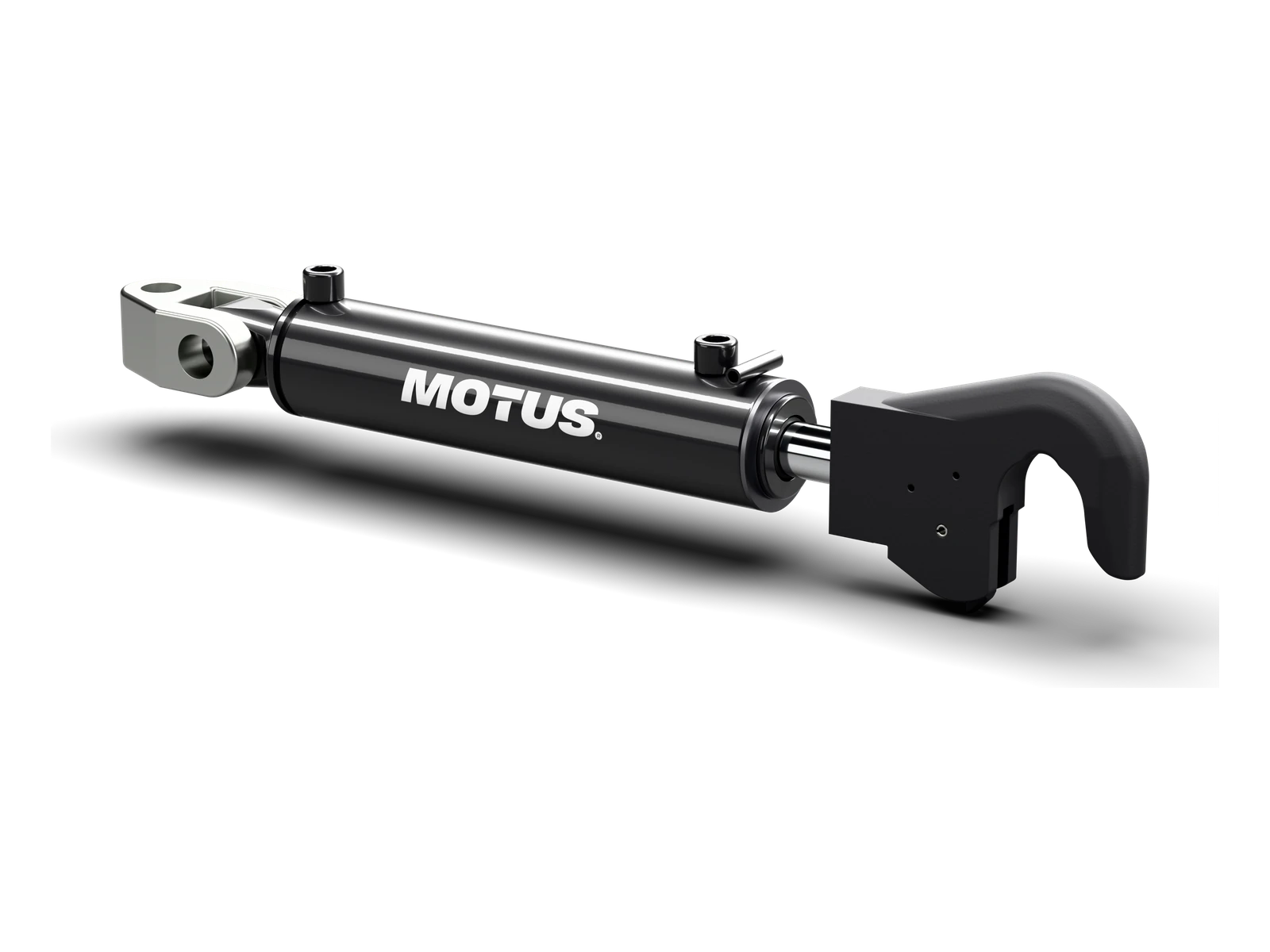

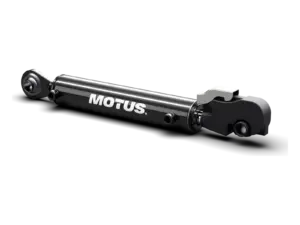

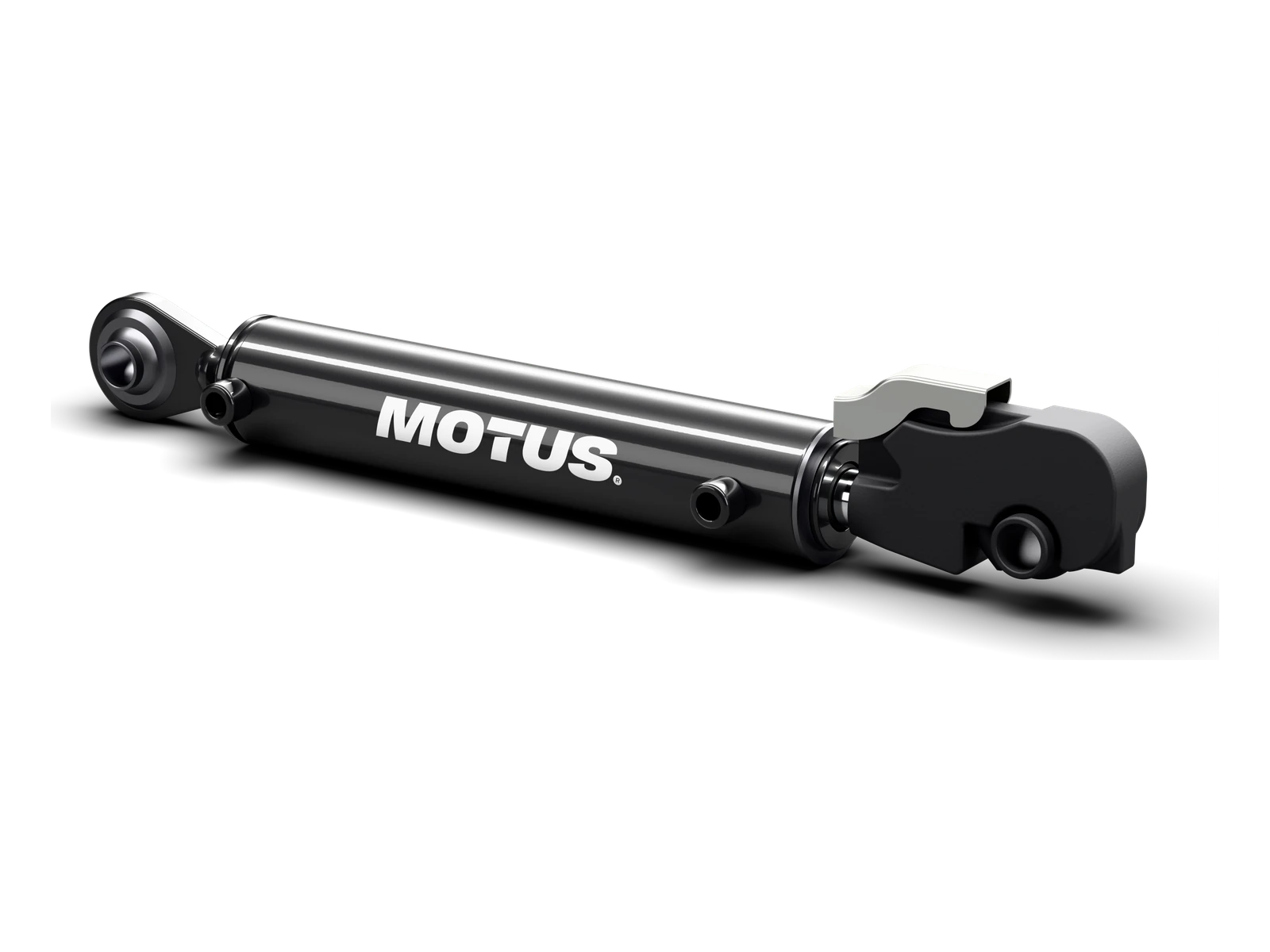

Toplink Rams
Motus Toplink Cylinders are built to perform, engineered for tractors from 15hp through to 500hp.
Designed with robust materials and precise manufacturing, every cylinder delivers reliable strength,
smooth operation, and long service life in demanding conditions.
Our full Toplink range covers multiple mounting styles, stroke lengths, and horsepower categories,
making it easy to match the right cylinder to your tractor. All models are stocked and ready to ship,
keeping your operation moving without downtime.
If you’re unsure which model fits your machine, we’re here to help. Get in touch and our team
will point you in the right direction.
| Horse Power | Code | Bore x Shaft x Stroke |
|---|---|---|
| 15 – 35hp | TL-A | 2″ x 1″ x 250mm |
| 15 – 35hp | TL-A2 | 2″ x 1″ x 250mm |
| 30 – 70hp | TL-B | 2½” x 1¼” x 250mm |
| 30 – 70hp | TL-B2 | 2½” x 1¼” x 200mm |
| 70 – 130hp | TL-C | 2½” x 1¼” x 250mm |
| 70 – 130hp | TL-C QH2 | 2½” x 1¼” x 250mm |
| 110 – 150hp | TL-D | 3″ x 1½” x 250mm |
| 110 – 150hp | TL-D QH2 | 3″ x 1½” x 250mm |
| 140 – 200hp | TL-E | 3½” x 1¾” x 300mm |
| 60 – 120hp | TL-F | 2½” x 1¼” x 250mm |
| 100 – 130hp | TL-G | 2½” x 1¼” x 250mm |
| 100 – 130hp | TL-G QH2 | 2½” x 1¼” x 250mm |
| 100 – 130hp | TL-G QH3 | 2½” x 1¼” x 250mm |
| 130 – 170hp | TL-H | 3″ x 1½” x 250mm |
| 130 – 170hp | TL-H QH2 | 3″ x 1½” x 250mm |
| 130 – 170hp | TL-H QH3 | 3″ x 1½” x 250mm |
| 130 – 170hp | TL-H1 | 3″ x 1½” x 250mm |
| 130 – 170hp | TL-H1 QH3 | 3″ x 1½” x 250mm |
| 180 – 240hp | TL-H2 | 3½” x 1¾” x 250mm |
| 180 – 240hp | TL-H2 QH2 | 3½” x 1¾” x 250mm |
| 180 – 240hp | TL-H2 QH3 | 3½” x 1¾” x 250mm |
| 200 – 300hp | TL-H3 | 4″ x 2″ x 250mm |
| 200 – 300hp | TL-H3 QH3 | 4″ x 2″ x 250mm |
| 90 – 120hp | TL-O | 2½” x 1¼” x 300mm |
| 90 – 120hp | TL-O QH2 | 2½” x 1¼” x 300mm |
| 110 – 150hp | TL-P | 3″ x 1½” x 300mm |
| 90 – 120hp | TL-Q | 2½” x 1¼” x 250mm |
| 110 – 150hp | TL-Q2 | 3″ x 1½” x 250mm |
| 70 – 130hp | TL-R | 2½” x 1¼” x 200mm |
| 70 – 130hp | TL-R2 | 2½” x 1¼” x 200mm |
| 70 – 130hp | TL-S | 2½” x 1¼” x 155mm |
| 70 – 130hp | TL-S2 | 2½” x 1¼” x 155mm |
| 250hp + | TL-X | 5″ x 2½” x 166mm |
