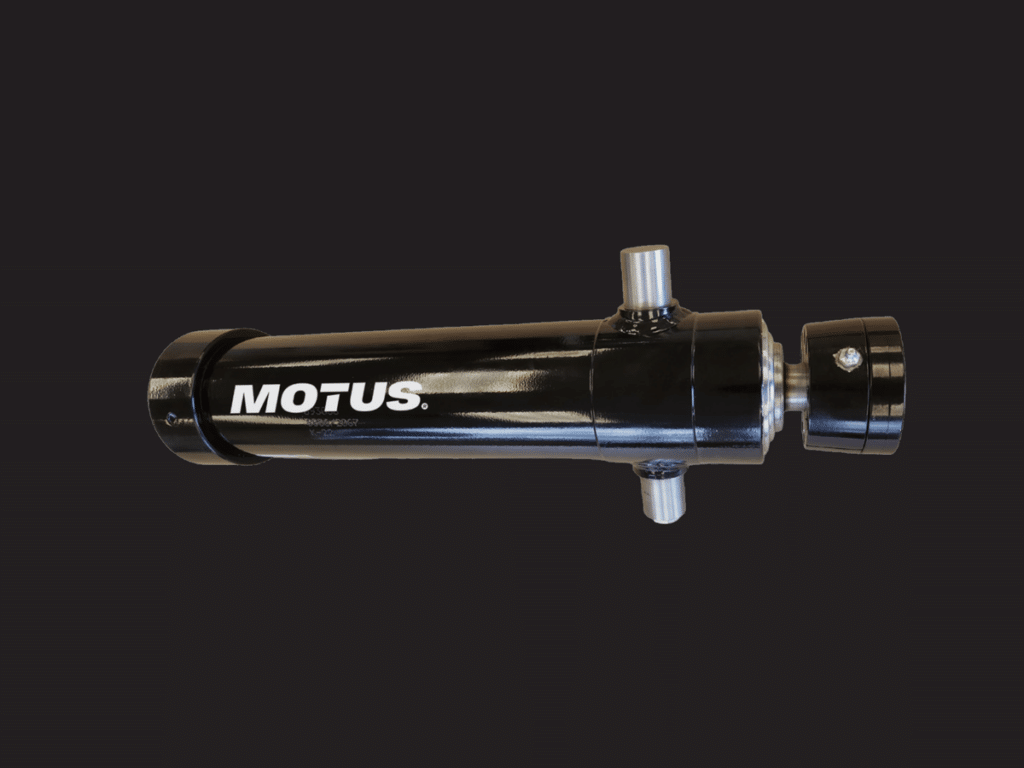

Stock single-acting lift/hoist cylinders in a variety of sizes, mounting styles and lengths.
Motus stock single-acting lift/hoist cylinders in a variety of sizes, mounting styles and lengths. These are rated to 3000 PSI. Double-acting telescopic cylinders are available upon request. 7 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Part No. | # of Stages | Stroke | Closed Centres | Base Mount | Spear Mount | Lifting Capacity (T) |
|---|---|---|---|---|---|---|
| 2 | 1081 mm | 780mm | Collar Pin | Collar Pin | 5 | |
| 2 | 1395 mm | 937mm | Collar Pin | Collar Pin | 6 | |
| 3 | 1283 mm | 598mm | Mid Trunnion | Ball Joint | 8 | |
| 4 | 1500 mm | 557mm | Base Trunnion | Cross-hole | 10 | |
| 4 | 1700 mm | 507mm | Base Trunnion | Cross-hole | 10 | |
| 5 | 2150 mm | 560mm | Base Trunnion | Cross-hole | 10 | |
| 5 | 2120 mm | 578 mm | Mid Trunnion | Cross-hole | 16 |
