Hydraulic Steel Tube

Metric Steel Tube – Electro Galvanised

Metric Steel Tube – Electro Galvanised

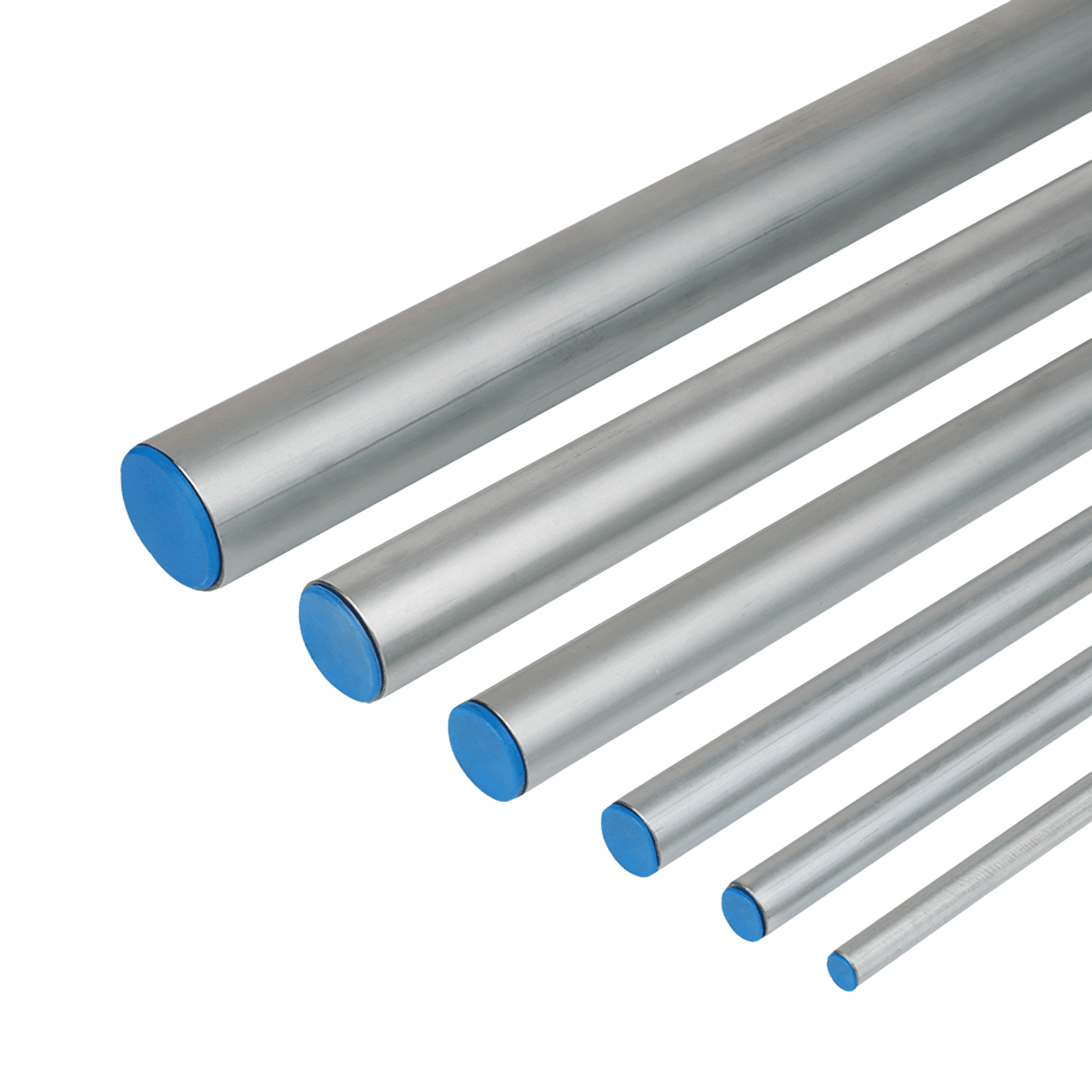

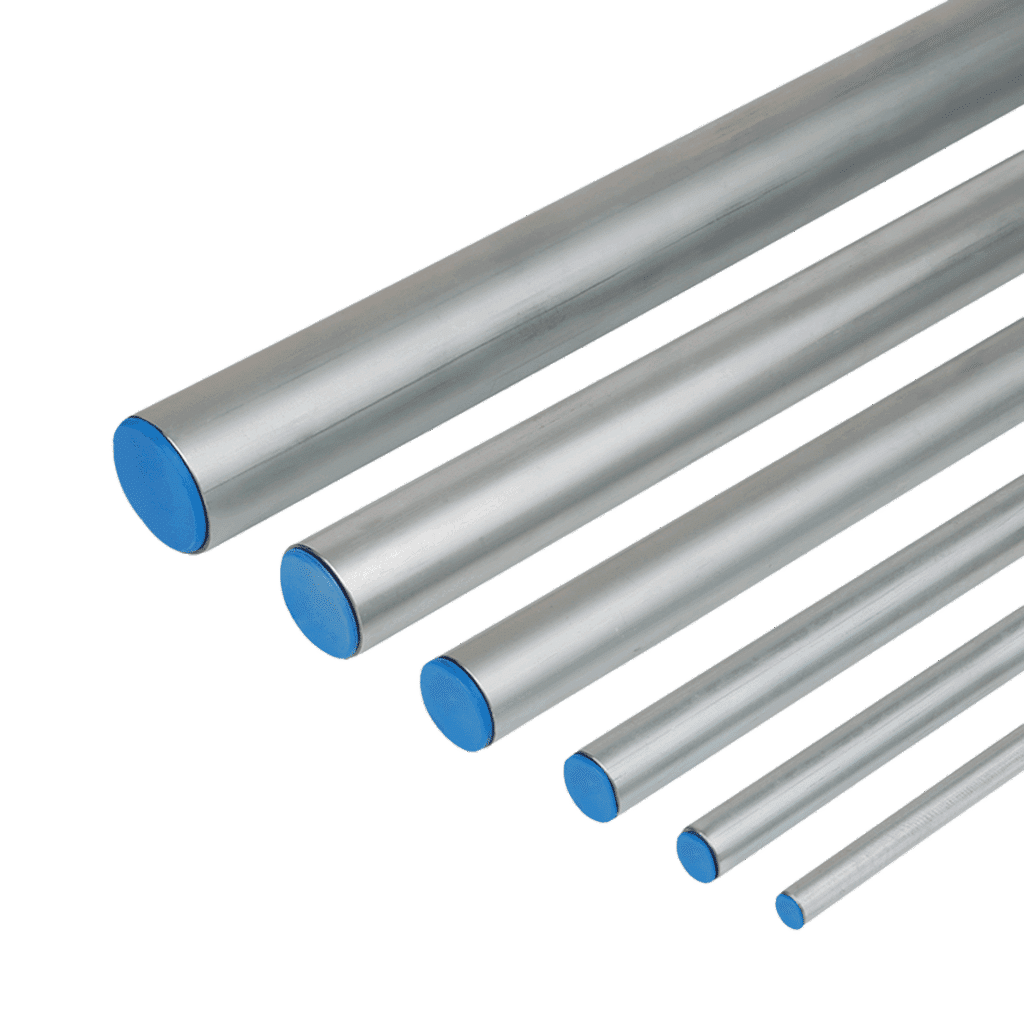

Metric precision steel pipe, EN 10305-4, E235+N. Precision steel pipe, metric. To DIN EN 10305-4. Electro galvanised surface. Steel ST 37.4 NBK (1.0255). 66 sizes, each with its own part number.

66sizes
TUB-M04-1.0-EG to TUB-M42-3.0-EG
Request a priceData sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

StandardDIN EN 10305-4
SurfaceElectro galvanised
MaterialSteel ST 37.4 NBK (1.0255)

Pick your size

Tick the sizes you need, then request a price.

IdentificationØ d2 mmAD tolerance + / - mmØ d1 mmID tolerance + / - mmS mmSpecific load I barSpecific load III bar
4.00.082.00.151.00602484
5.00.082.50.150.75325282
5.00.083.00.151.00482400
6.00.084.50.150.75286251
6.00.084.00.121.00416352
6.00.083.00.151.50663524
6.00.082.00.152.00924683
8.00.086.00.101.00320278
8.00.085.00.101.50516424
8.00.084.00.152.00693543
10.00.088.00.081.00263232
10.00.087.00.121.50407345
10.00.086.00.152.00554451
10.00.085.00.152.50711555
12.00.0810.00.081.00219196
12.00.089.00.101.50344297
12.00.088.00.122.00469391
12.00.087.00.152.50592477
14.00.0811.00.081.50299262
14.00.0810.00.102.00407345
14.00.089.00.122.50514423
15.00.0813.00.081.00175159
15.00.0812.00.081.50279246
15.00.0811.00.102.00380324
15.00.0810.00.082.50480398
16.00.0813.00.081.50262231
16.00.0812.00.152.00346298
16.00.0811.00.122.50450377
IdentificationØ d2 mmAD tolerance + / - mmØ d1 mmID tolerance + / - mmS mmSpecific load I barSpecific load III bar
18.00.0816.00.081.00146133
18.00.0815.00.081.50233207
18.0-14.00.082.00320278
18.00.0813.00.152.50395335
20.00.0817.00.081.50209188
20.00.0816.00.082.00288252
20.00.0815.00.152.50355305
20.00.0814.00.153.00433364
20.00.0813.00.083.50512421
22.00.0819.00.081.50190172
22.00.0818.00.082.00262231
22.00.0817.00.082.50333288
25.00.0822.00.081.50167152
25.00.0821.00.082.00230205
25.00.0820.00.082.50293256
25.00.0819.00.153.00347299
25.0-18.0-3.50--
25.00.0817.00.154.00472393
28.00.0825.00.081.50149136
28.00.0824.00.082.00205184
28.00.0823.00.082.50261231
28.00.0822.00.153.00309270
30.00.0825.00.082.50244217
30.00.0824.00.153.00289253
30.00.0822.00.154.00393334
30.00.0820.00.155.00498411
35.00.0832.00.081.50119110
35.00.1531.00.152.00152138
35.00.1529.00.153.00241214
35.00.1527.00.154.00331286
38.00.1534.00.152.00140128
38.00.1523.00.152.50181163
38.00.1532.00.153.00222198
38.00.1530.00.154.00305266
38.00.1528.00.155.00387330
38.00.1526.00.156.00469391
42.00.2038.00.202.00119109
42.00.2036.00.203.00193174

Note: The pressure figures are based on Straight pipes. The appropriate wall thickness needs to be calculated for pipes with bends as stipulated in DIN EN 13480-4.

Additional info: Specific load I: static (up to 100 °C) Specific load III: dynamic (up to 200 °C) stress range = P bar Strength parameter: K 235 [N / mm2] Safety coefficient: S 1.5 Fatigue strength: Sch / D 225 [N / mm2] Tolerance: DIN 10305-4

The details

Design
Precision steel pipe, metric
Standard
DIN EN 10305-4
Material
Steel ST 37.4 NBK (1.0255)
Surface
Electro galvanised
Pipe length
6 metres

Downloads

Metric Steel Tube – Electro Galvanised data sheetPDF, matches the catalogueDownload
