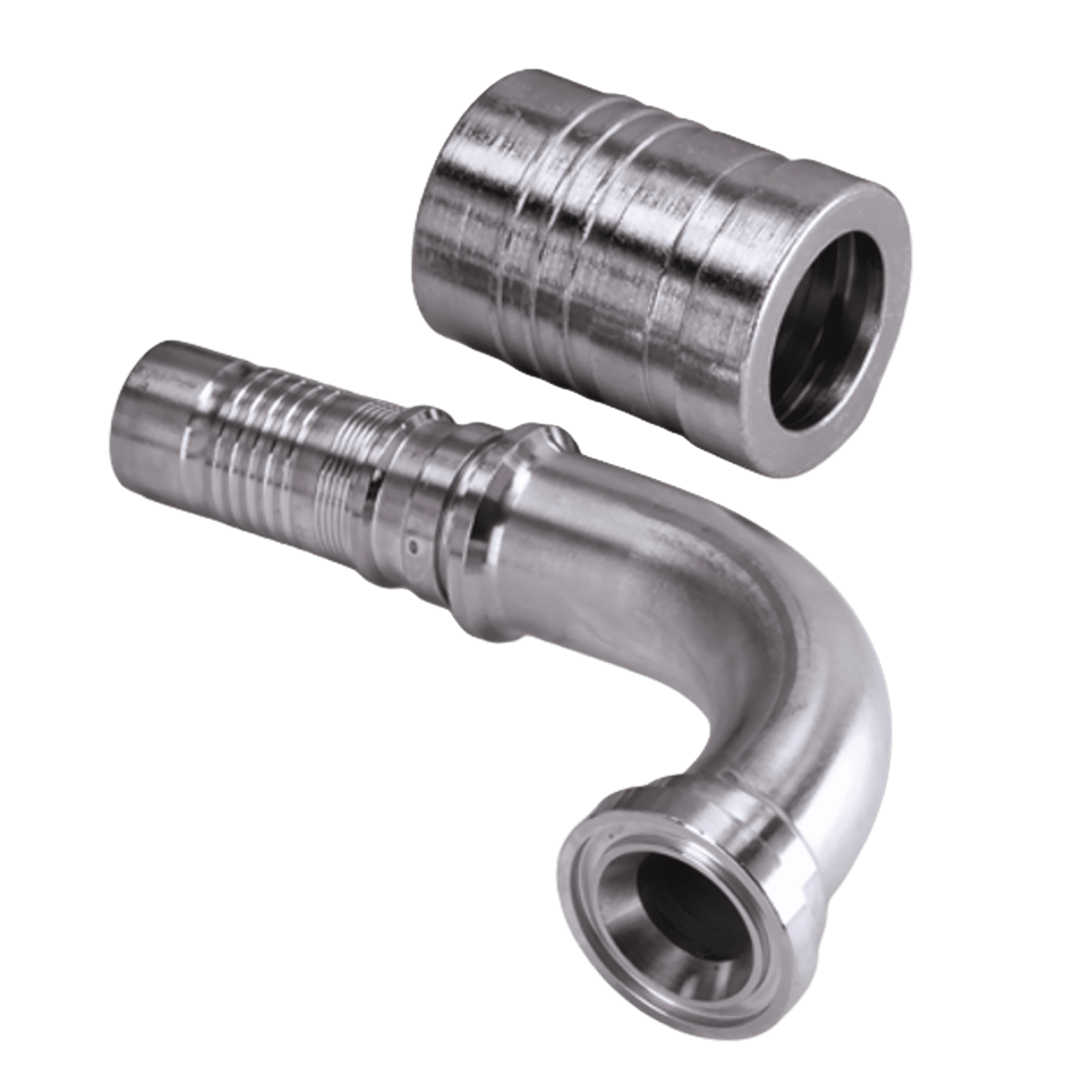

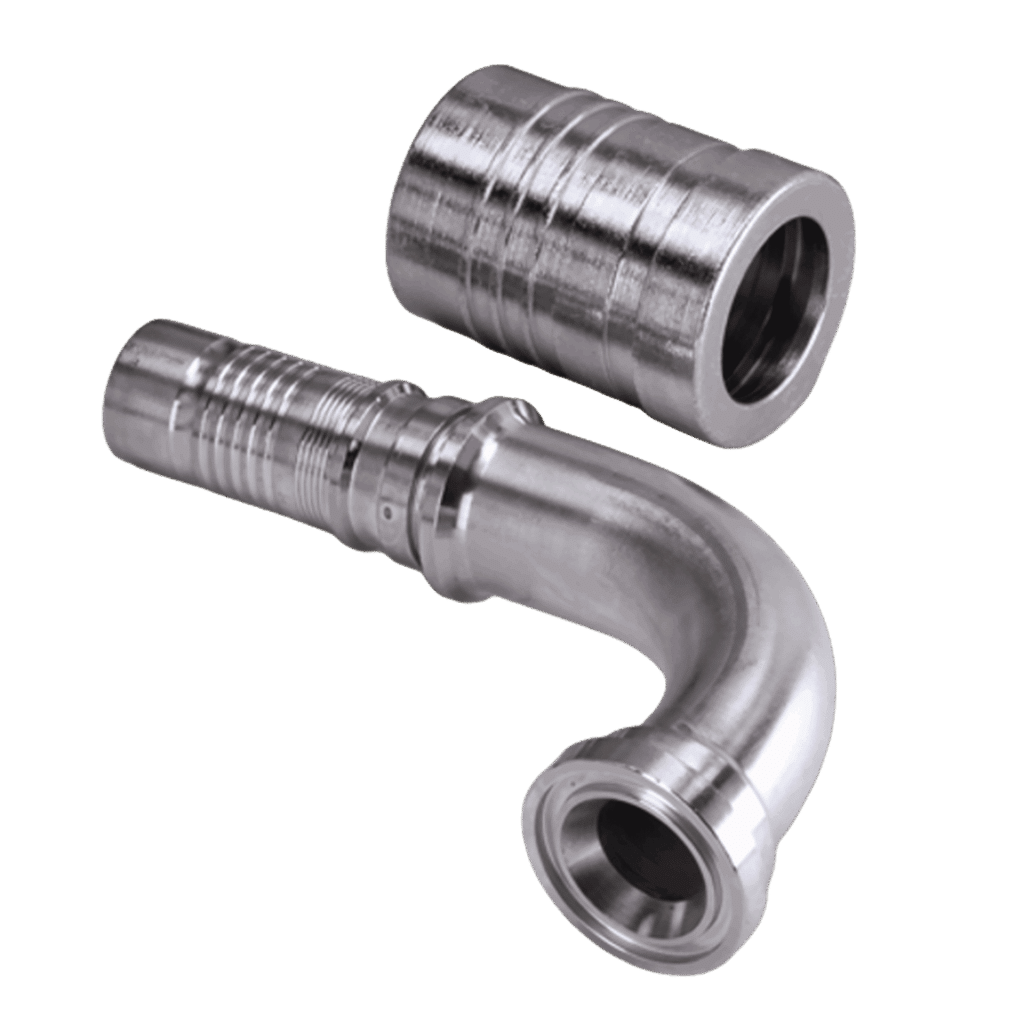

Swage fitting, SFL angle 90°. For swage fitting for MH800 hose. SAE flange connection 3000 PSI. Flat seal with SF O-ring. To SAE J518, ISO 6162-1. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 17 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | Flange size | D mm | H mm | L1 mm | L2 mm |
|---|---|---|---|---|---|---|---|---|
| 12 | 8 | 1/2” | 1/2” | 30.2 | 6.7 | 85.9 | 45.0 | |
| 12 | 8 | 1/2” | 3/4” | 38.1 | 6.7 | 96.0 | 51.0 | |
| 19 | 12 | 3/4” | 3/4” | 38.1 | 6.8 | 127.5 | 58.0 | |
| 19 | 12 | 3/4” | 3/4” | 38.1 | 6.8 | 127.5 | 95.0 | |
| 19 | 12 | 3/4” | 3/4” | 38.1 | 6.8 | 127.5 | 100.0 | |
| 19 | 12 | 3/4” | 3/4” | 38.1 | 6.8 | 127.5 | 120.0 | |
| 19 | 12 | 3/4” | 1” | 44.5 | 8.1 | 127.5 | 61.0 | |
| 19 | 12 | 3/4” | 1” | 44.5 | 8.1 | 127.5 | 82.0 | |
| 25 | 16 | 1” | 3/4” | 38.1 | 6.8 | 144.0 | 64.5 | |
| 25 | 16 | 1” | 1” | 44.5 | 8.1 | 158.0 | 67.0 | |
| 25 | 16 | 1” | 1.1/4” | 50.8 | 8.1 | 158.0 | 69.5 | |
| 31 | 20 | 1.1/4” | 1” | 44.5 | 8.0 | 162.0 | 76.0 | |
| 31 | 20 | 1.1/4” | 1.1/4” | 50.8 | 8.0 | 173.0 | 88.0 | |
| 31 | 20 | 1.1/4” | 1.1/2” | 60.3 | 8.0 | 177.0 | 95.0 | |
| 38 | 24 | 1.1/2” | 1.1/4” | 50.8 | 8.1 | 190.5 | 93.0 | |
| 38 | 24 | 1.1/2” | 1.1/2” | 60.3 | 8.1 | 208.5 | 99.0 | |
| 38 | 24 | 1.1/2” | 2” | 71.4 | 9.6 | 218.0 | 104.0 |
339
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
