Cylinder types
Tie-rod style cylinders are prevalent in cylinder applications that conform to worldwide SAE (Society of Automotive Engineers) standards.
Benefits of Tie Rod cylinders include the ease of disassembly for repair due to no welding being required in the design.
Motus’ tie rod cylinders are made to SAE standards for interchangability and these cylinders are a great low-medium cost option for applications where cylinders operate with pressures 3500PSI and lower.
Tie Rod Range – up to 3500psi

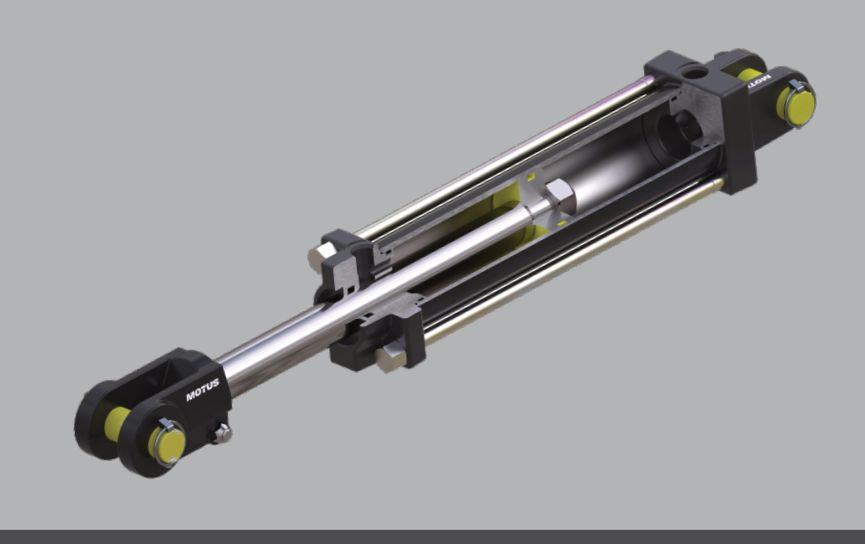

Motus Tie Rod double-acting cylinders are manufactured to SAE standards for OEM and replacement parts to a wide variety of applications. They are available from 2” to 5” bore sizes with strokes up to 36”.
They contain some subtle improvements from the regular sources, including the 3500psi operating pressure rating, ORB ports as standard and custom colours for OEM supply.
Precision honed high-tensile tubing for maximum seal life.
Close grained, ductile cast iron giving maximum bearing surface in minimum length
Cylindrically ground and polished chrome bar Available in 1045 hard chrome bar and 4140 grade high tensile bar for increased strength and damage resistance in harsh environments.

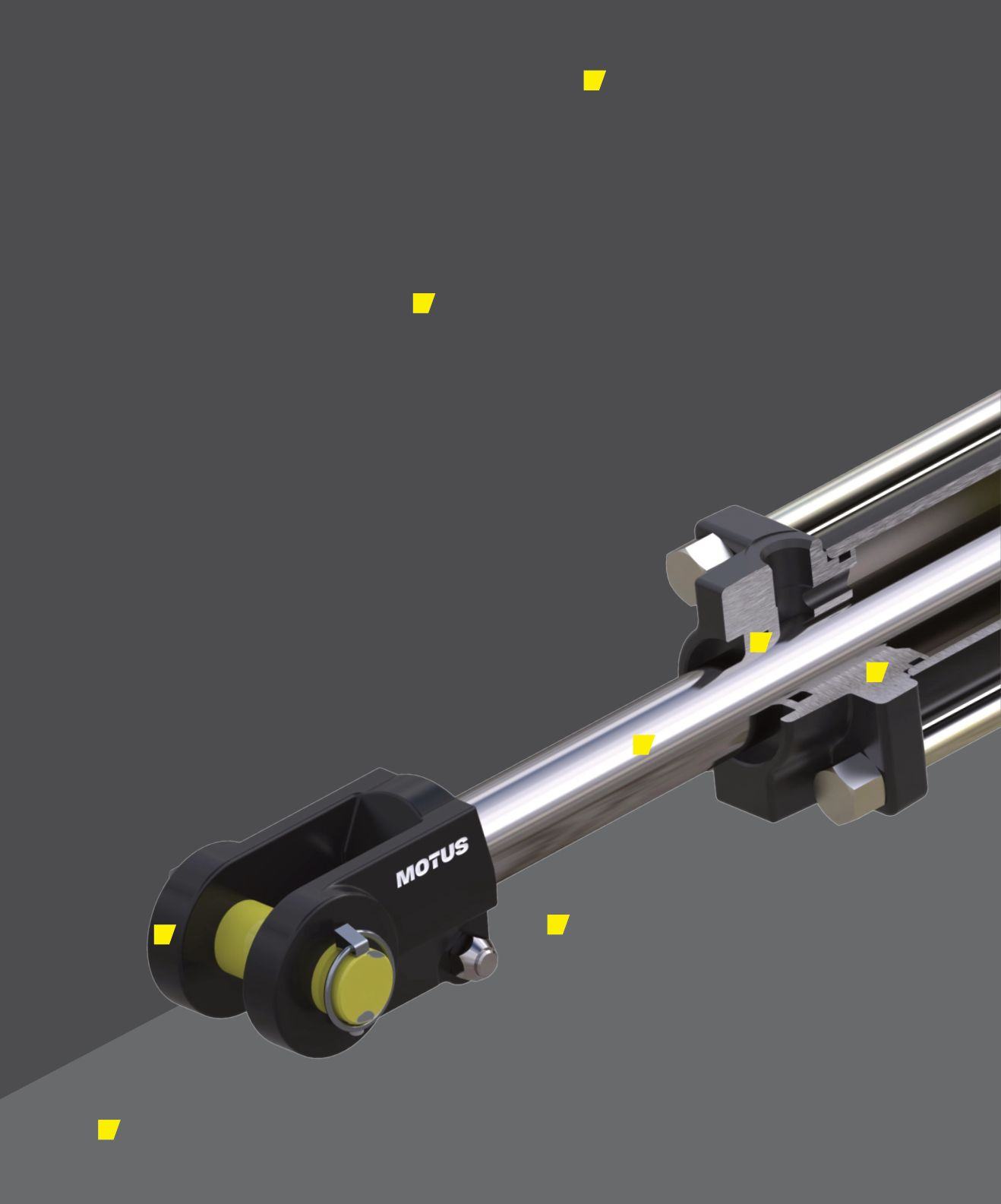

Ductile Iron clevises to SAE standards, supplied with zinc plated pins and clips Larger diameter pins, case-hardened and austemped castings for improved wearing ability.
Internally ported to ORB (SAE) standards, including 2 ports in the base at both inline, and 90-degree positions for versatile mounting options.
Close grained ductile cast iron, giving maximum bearing surface.
Nickel-chrome rods for superior corrosion resistance.
Premium North American seals utilised throughout. Polyurethane twin lip design rod seal for long service life. Tough metal backed mud and ice wiper (option of polyester snap-in). O-Ring and contoured face backups on tube connections. Durable polyester cap seal has excellent load holding and wear resistance properties.
