Cylinder types
Single-acting displacement cylinders were among the first cylinders that Motus made way back in the 1960’s for Hustler’s forklift masts.
A unique gland design allowed for spear and bore combinations to be similar in diameter to maximise strength to withstand long extention lengths and side-load which is a common issue with lifting cylinders sometimes required to be several metres long and fitted in restricted spaces.

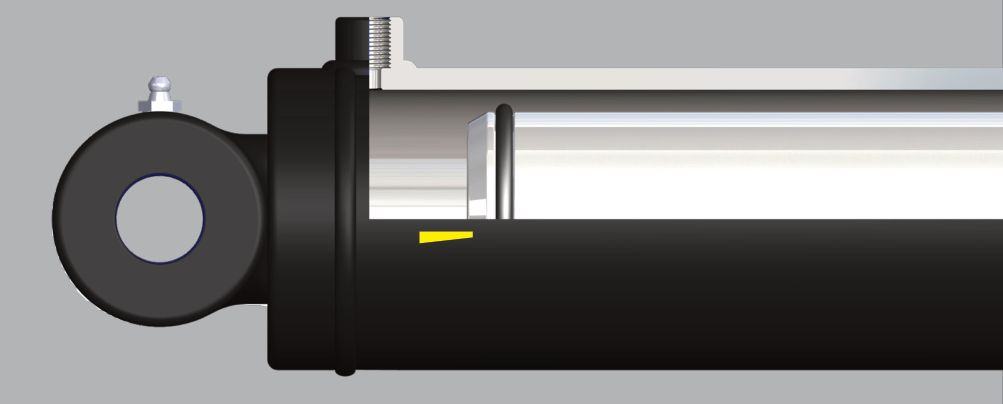

Motus have 3 main types of single-acting cylinders: the wire retained clip method, a guide piston and a solid body design for maximum strength and endurance.
Displacement Cylinders Displacement cylinders have no piston. The effective diameter is the shaft diameter, so a 2” displacement cylinder has the same power as a 2”x 1” double-acting cylinder.
A displacement cylinder requires no breather, has head seals only and is typically used on simple designs: forklift cylinder, truck/ute deck tilt, post driver cylinders, or older front-end loader lift cylinders.
Spacers Some longer stroke cylinders (especially if horizontal) will require a spacer between head and piston, i.e. 21/2 x 11/2 x 900mm horizontal may require a 100mm long spacer.

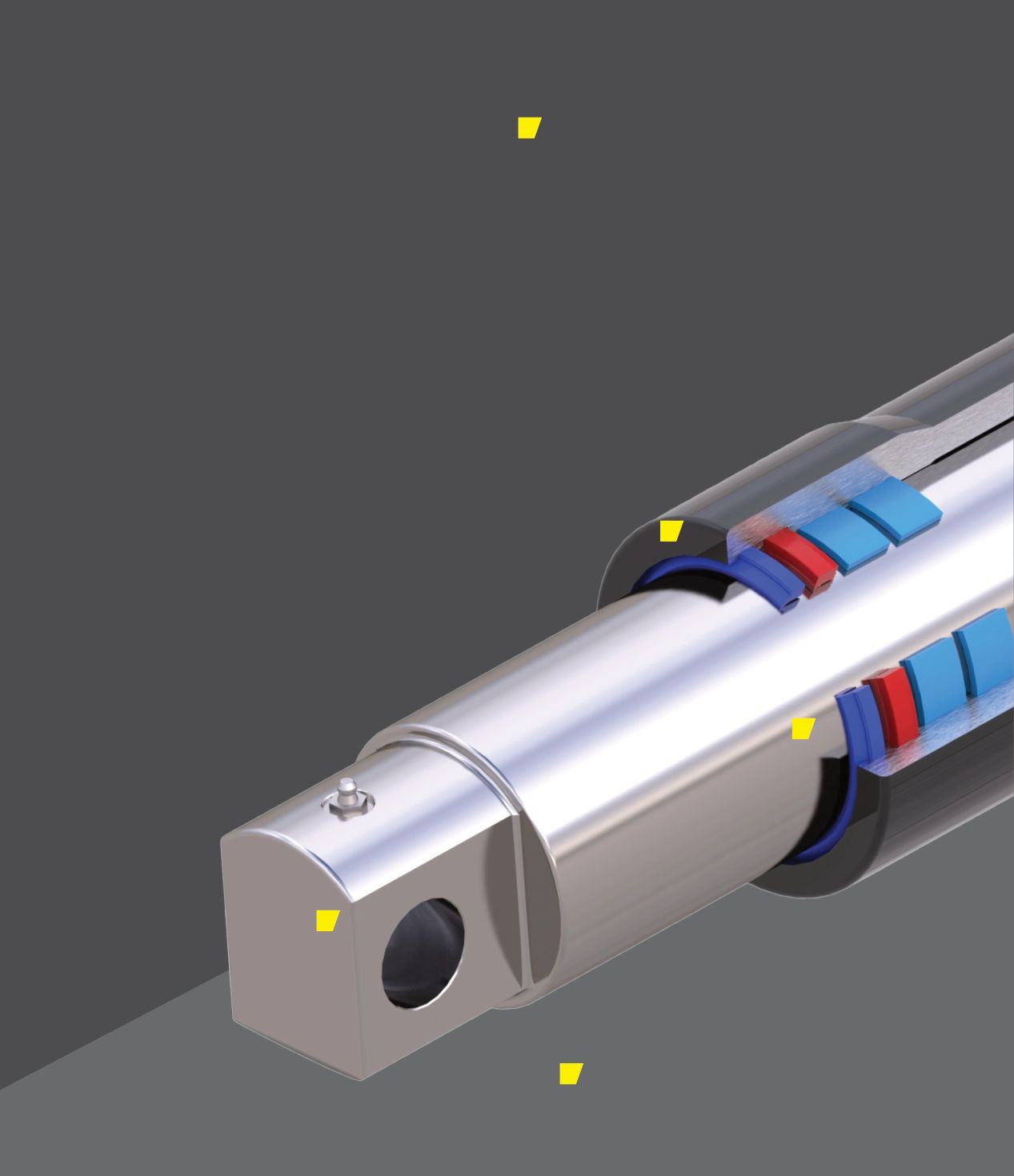

Guided displacement cylinder
1 piece 1045 grade steel guide including a heavy duty glass reinforced nylon wear ring.

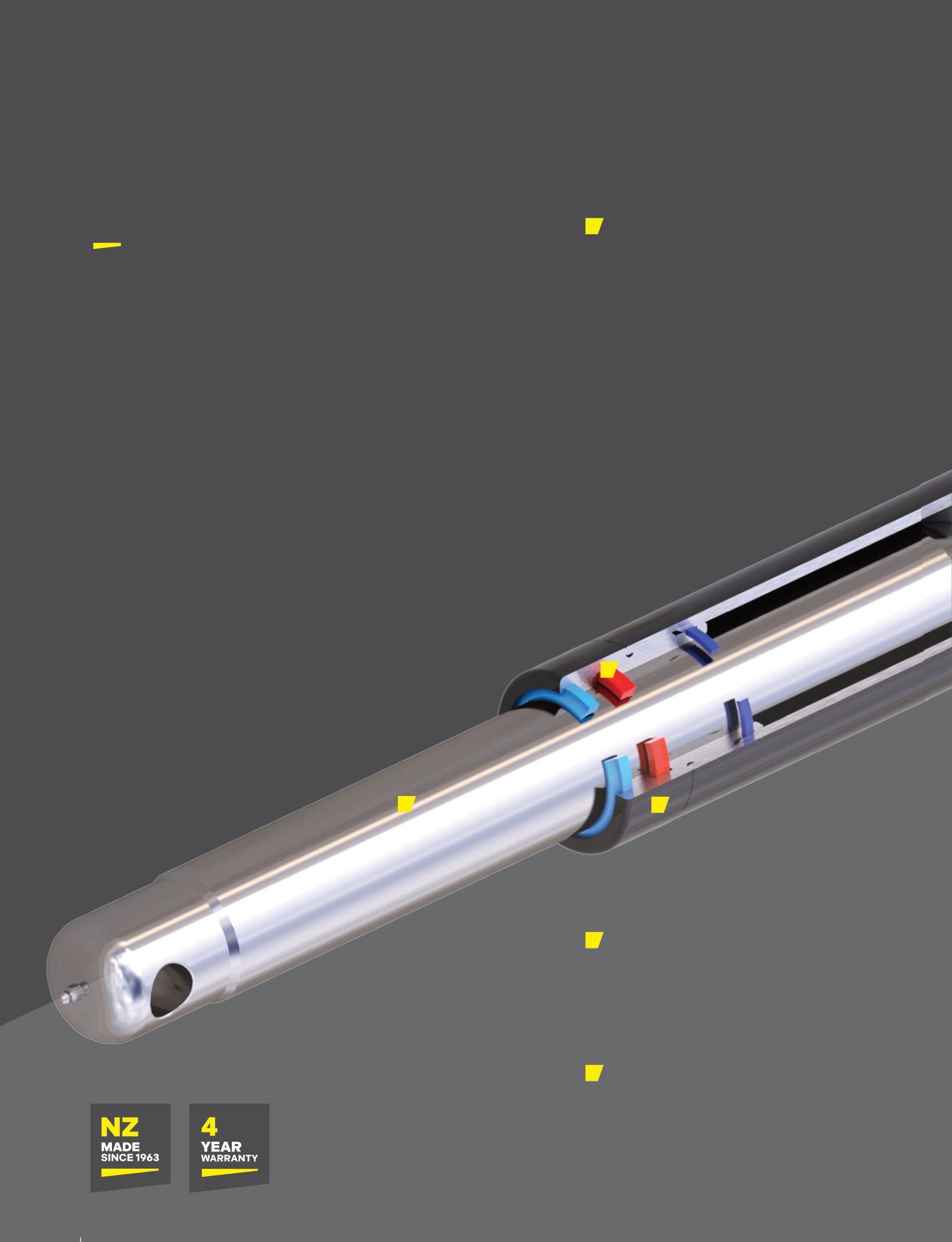

Unguided displacement cylinder
Made from durable high quality spring steel, easily removable making servicing a breeze.
Shaft seal Premium quality polyurethane pressure seal for long life usage. Wiper seal heavy duty polyurethane wiper seal. Outer head/gland seal Static urethane quad seal designed to manage high pressure and system spikes.
Thick wall tube for increased strength. High quality internal bore finish.
Ports are fully machined from solid bar for durability.
3D/U400 High grade close grain cast iron threaded head, designed tough to endure operating shock and loading.
1045 grade steel, precision ground. Hard chrome plated and polished for maximum corrosion resistance.
Our ENDURA series heavy industrial cylinders
Full Displacement cylinders designed for applications where positive constant pressure is required.
Simple but effective seal & wear ring combination to handle side load.
Customised heavy duty end mounts built to suit the requirements of the end user.
Extra thick heavy 1-piece body for maximum strength. Designed to withstand high working pressures.
Heavy wall UN O-ring ports are standard, 5000psi+ rated.
High tensile induction hardened bar is vital in these hard working cylinders, this will ensure maximum protection against damage and wear no matter the application.
“Excellent service and consistency, top-quality rams! We use Motus rams on alot of our products and wouldn’t use anything else.”
Tom Fyfe Landquip
